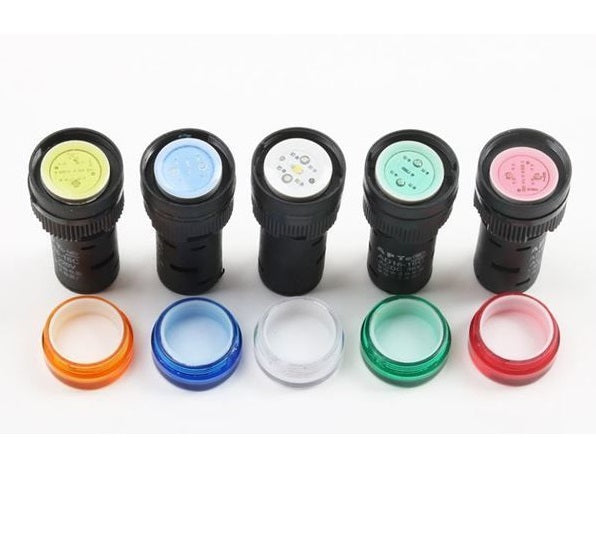

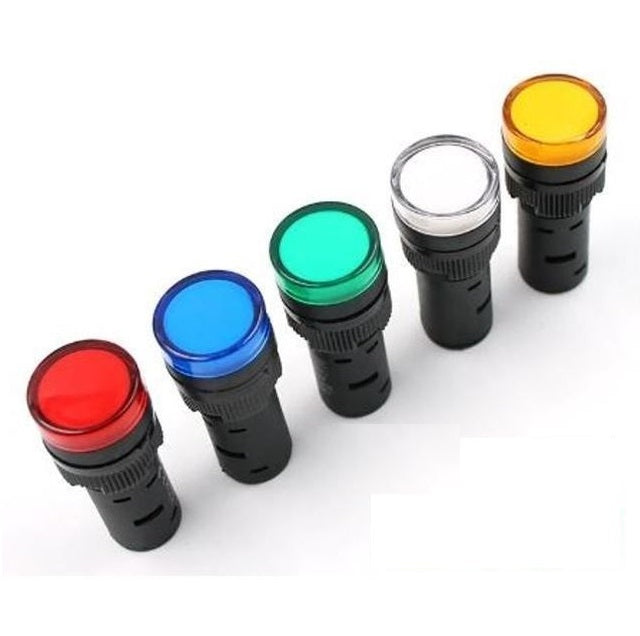

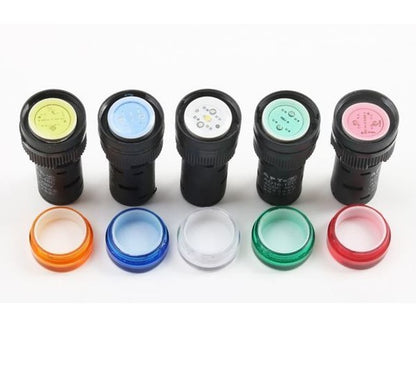

(12V) AD16-16C Red LED Pilot Lamp Panel Mount 12V - (AD56742)

Description:

This is a pilot light with a 20mm diameter and 45mm length. The light model is AD16-16C and it can be powered with 12V AC/DC. That's right... it works with direct or alternating current. The diameter for the mounting hole is the standard 16mm, a size commonly used in automation panels.

Specifications:

- Maximum power supported: 2.5KW AC, 1min

- Insulation resistance: more than 2Mohm

- Allows voltage fluctuations: 12V with a 5% tolerance

- Brightness: Greater than or equal to 75mcd

- Light operation: Fixed

Environmental parameters:

- Operating temperature: -25ºC ~ + 55ºC

- Relative Humidity: 98%

Datasheet
