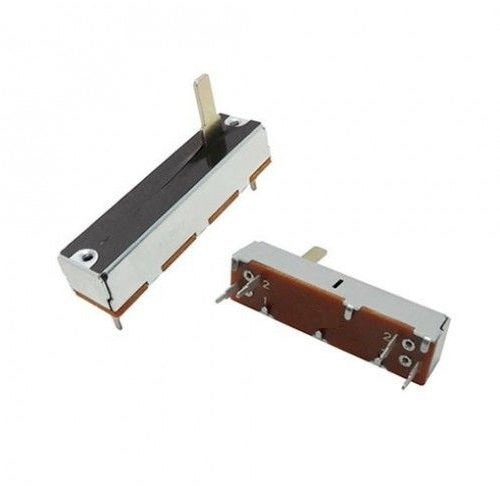

10K Linear Taper Slide Potentiometer - (AD5584)

Description:

A simple slide potentiometer can go a long way. Rated at 10K ohm and 0.2W. It comes with solder lug connections. Information for this potentiometer can be found in the attached data sheet.

Note: Sold in individual units!

Characteristics:

- Manufacturer: ALFA

- Manufacturer Part Number: RA300BF-20-15C2-B10K-2

- With dust seal

- Sliding potentiometer

- Power: 0.2W

- Maximum voltage rating: 200 VAC

- Resistance: 10Kohm

- Tolerance: ± 20%

- Type: Linear

- Type B

- Taper: Audio

- Travel: 30 mm.

- Axle lever height: 15 mm.

- Measurements (Width x Length x Height): 12.5 x 50.2 x 10.4 mm.

- Mounting type: Through hole

Data sheet
