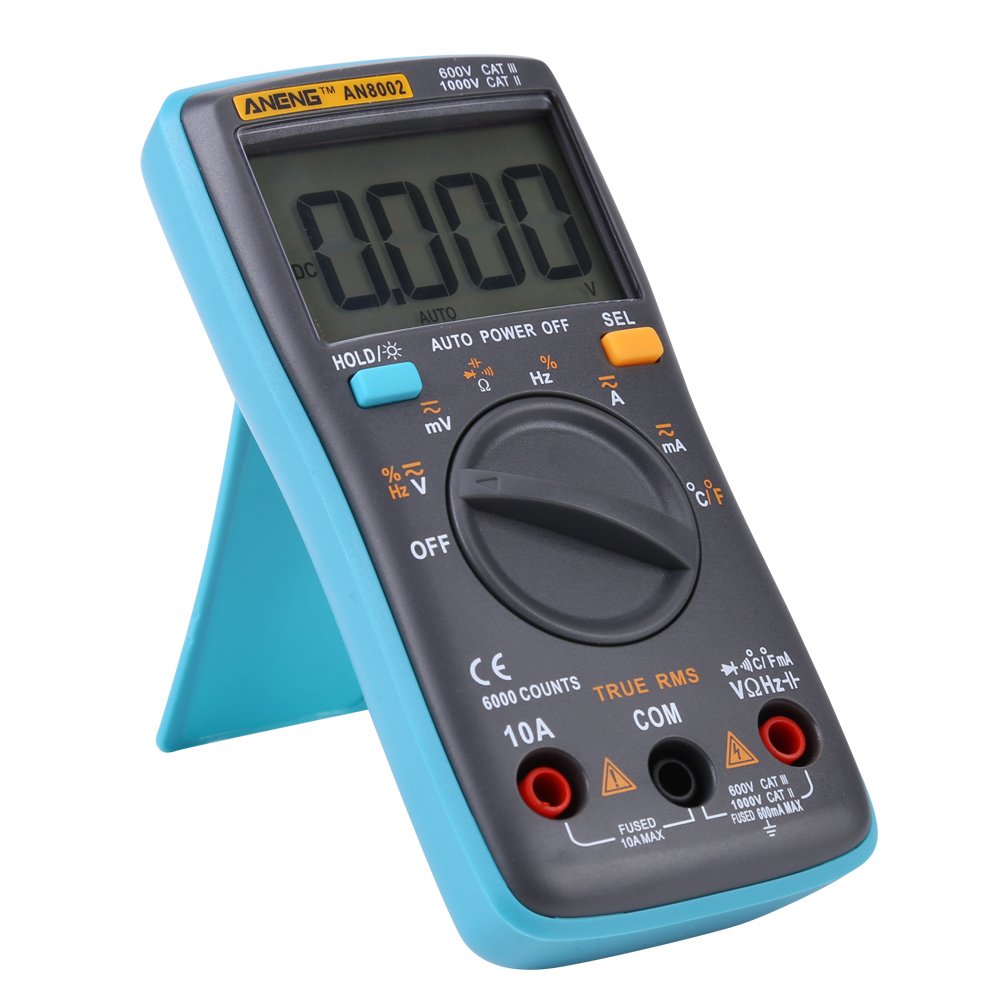

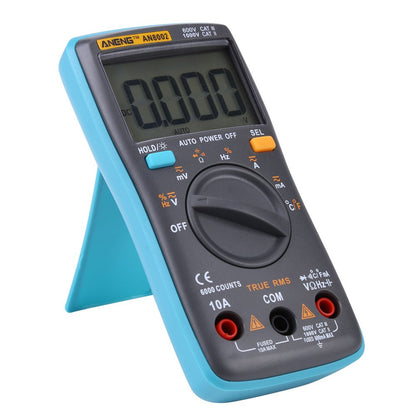

AN8002 ANENG Digital Multimeter - (AD55443)

Description:

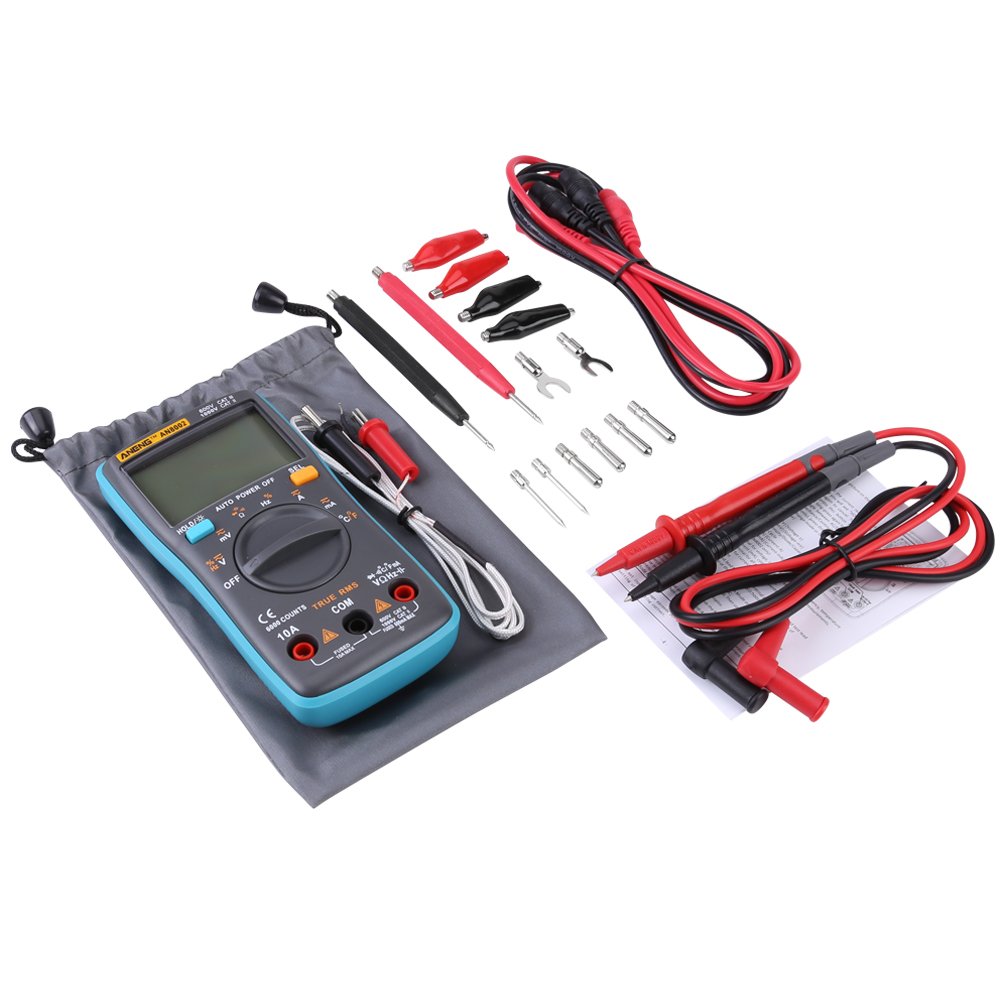

The digital multimeter (DMM) is an essential tool for every electronics enthusiast's toolkit. The ANENG AN8002 digital multimeter, however, is no ordinary multimeter; it features a loud continuity buzzer, current/voltage direction detection, and high-quality probes or test leads. You can use this multimeter to measure DC and AC voltage, DC and AC current, resistance, continuity, diode testing, capacitance, and temperature.

This is for every student who needs to purchase a good, relatively inexpensive digital multimeter. It has auto-power off and auto-ranging capabilities. With this multimeter, you will be able to measure DC voltage from 10mV to 1000V, AC voltage up to 750V, AC and DC current between 0.01uA and 10A, and resistance from 0 to 2M Ohm.

Note: Batteries are NOT included; it requires 2 AAA batteries.

Features:

- Range: Automatic.

- True RMS.

- 550V protection in resistance, capacitance, and frequency ranges.

- Large LCD display, maximum display 6666 counts.

- Sampling rate: 3 times per second.

- Backlight.

- Relative measurement.

- Data hold.

- Polarity identification.

- Low voltage indication.

- Square wave output.

- High and low current measurement 9.999 A.

- Automatic power off.

- Main measurements: AC/DC voltage, AC/DC current, resistance, capacitance, diode and continuity test, frequency, and duty cycle.

- Frequency: 0.01 Hz to 9.999 MHz.

- Capacitance: 0.001 nF to 9.999 mF.

- AC Volts: 0.001 mV to 750 V.

- DC Volts: 0.001 mV to 999.9 V.

- AC Current: 0.01 uA to 9.999 A.

- DC Current: 0.01 uA to 9.999 A.

- Resistance: 0.01 Ω to 9.999 MΩ.

- Duty cycle: 1% to 99%.

- Temperature measurement: -4.0 °F to 1832.0 °F (-20°C to 1000°C)

Specifications:

- (1) Capacitance: 9.999 nF (± 5.0 % + 20), 99.99 nF/999.9 uF/9.999 uF/99.99 uF/999.9 uF (± 2.0 % + 5), 9.999 mF (± 5.0% + 5).

- (2) DC Volts: 9.999 mV/99.99 mV/999.9 mV/9.999 V/99.99 V/999.9 V (± 0.5 % + 3).

- (3) AC Volts: 9.999 mV/99.99 mV/999.9 mV/9.999 V/99.99 V/750.0 V (± 1.0 % + 3).

- (4) DC Current: 99.99 uA/999.9 uA (± 0.8 % + 3), 999.9 mA/9.999 A (± 1.0 % + 3).

- (5) AC Current: 99.99 uA/999.9 uA (± 1.0 % + 3), 999.9 mA/9.999 A (± 1.2 % + 3).

- (6) Resistance: 99.99 Ω (± 1.0 % + 3), 999.9/9.999 K/99.99 K/999.9 K (± 0.5 % + 3), 9.999 MΩ (± 1.5 % + 3).

- (7) Frequency: 99.99/999.9/9.999 k/99.99 k/999.9 k/9.999 M (± 0.1 + 2).

- (9) Duty cycle: 1% to 99% (± 0.1 % + 2).

- (10) Measurement mode: double-integral style A/D transform.

- (11) Over-range indication: OL.

- (12) Working environment: 0 ~ 40 °C, relative humidity < 80%.

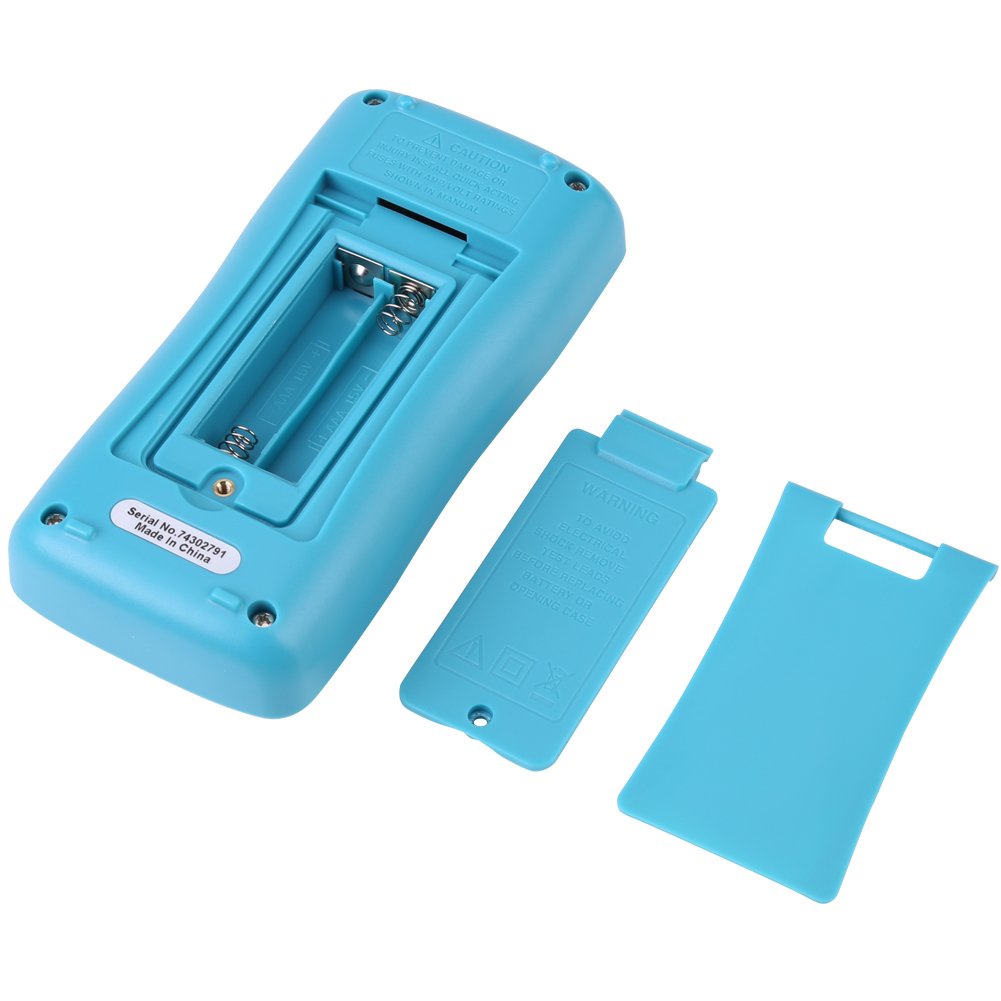

- (13) Power supply: 3 V (1.5 V AAA batteries x 2) (not included).

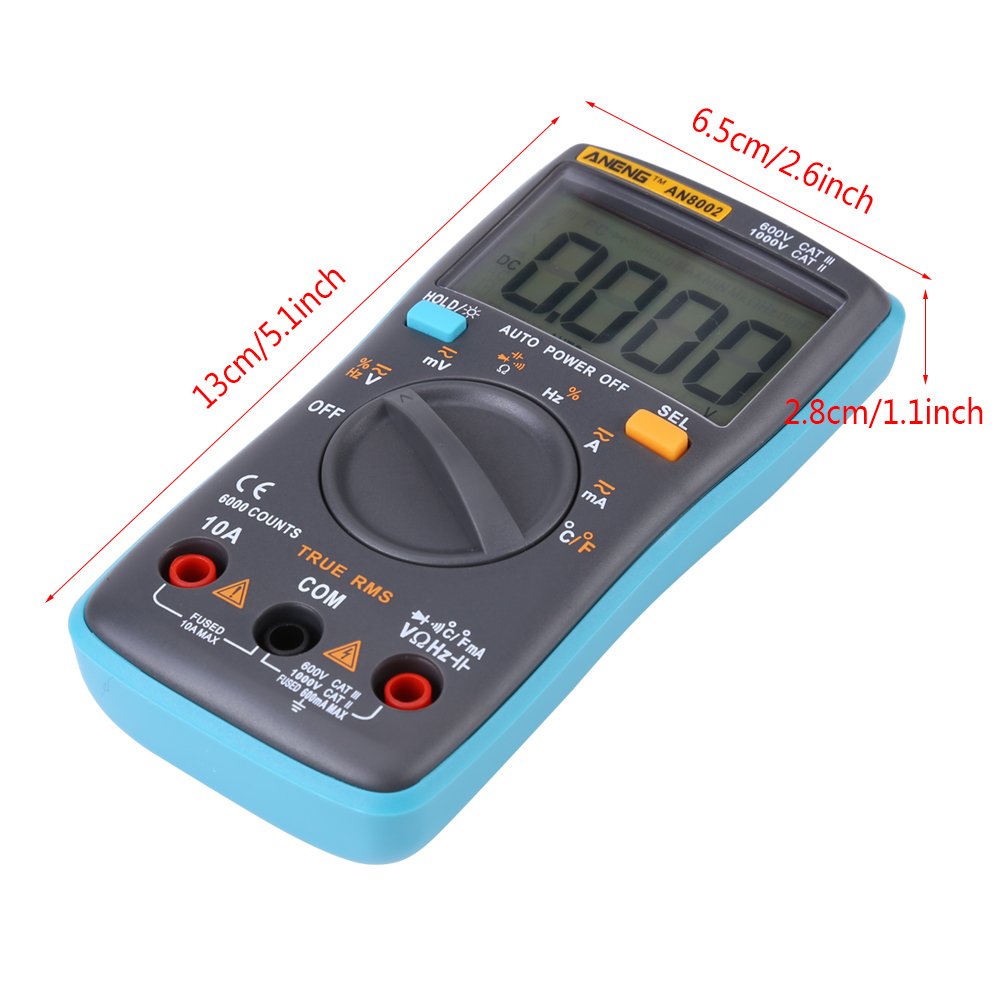

- (14) Dimensions: approx. 5.2 x 2.56 x 1.2 inches.

- (15) Net weight: approx. 4 oz.
