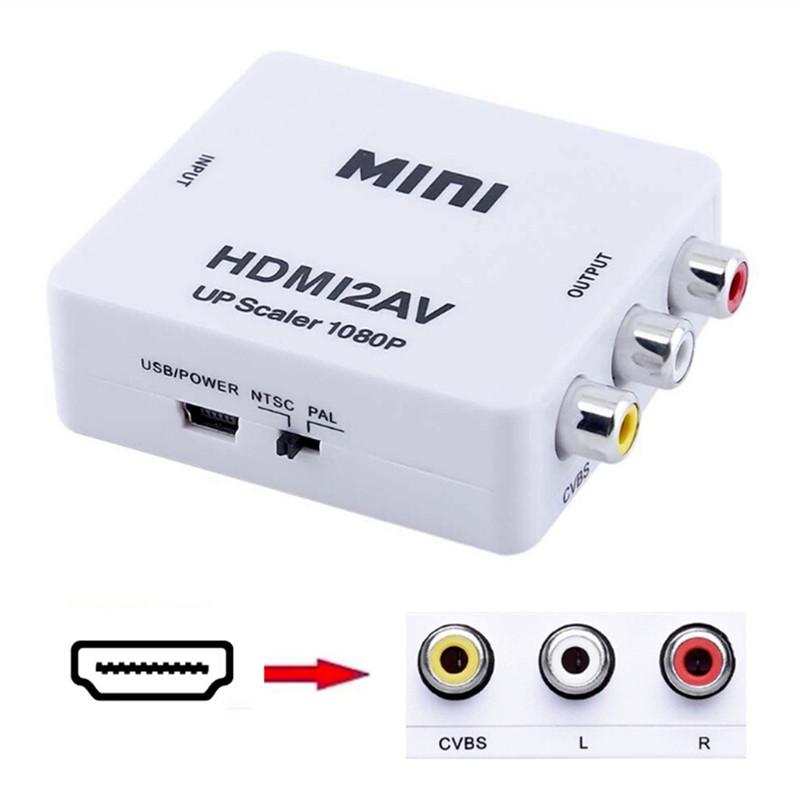

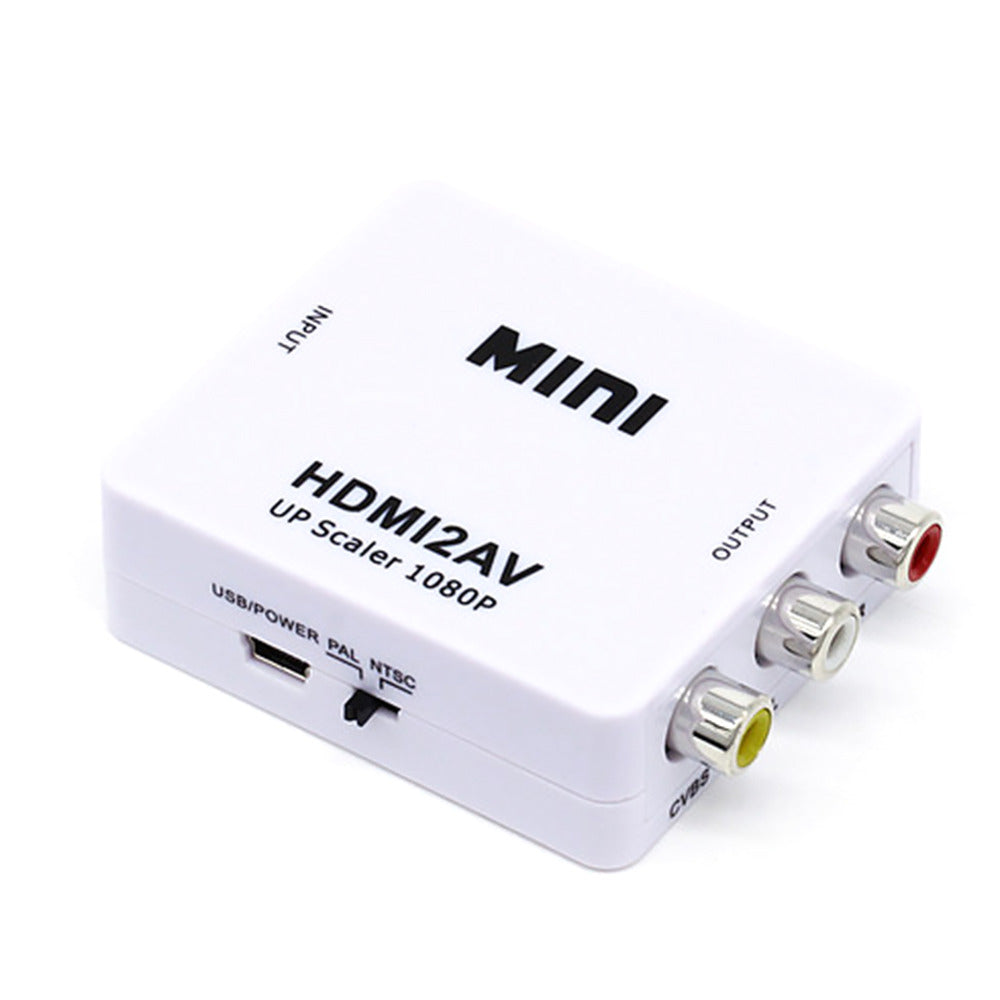

HDMI2AV HD Video Converter - (AD53740)

Description:

The MINI HDMI2AV signal converter will convert the HDMI video signal or audio signal into AV (CVBS) composite video signal and FL/FR stereo audio signals, while supporting DVI system sideline signals. Help users convert the high quality of the HDMI video signal into normal CVBS signal (480i, 576i, standard definition). So it can be played on TV, VHS VCR, DVD recorders, etc. Supports NTSC and PAL with two TV formats.

Features:

- No need to install drivers, portable, flexible, plug and play.

- Low power, no power adapter.

- Supports NTSC and PAL two standard TV output formats.

- HDMI1.3 compatible.

- Input ports: 1 x HDMI (standard size).

- Output ports: 1 x RCA (yellow, white, red).

- Dimensions (mm): 66 x 55 x 20.

HDMI input resolution:

- 640×480 @ 60Hz, 800×600 @ 60Hz, 1024×768 @ 60Hz, 1280×720 @ 60Hz, 1280×1024 @ 60Hz, 1360×768 @ 60Hz, 1600×1200 @ 60Hz, 1920×1080 @ 60Hz, 480i / 60Hz, 480p / 60Hz, 576i / 60Hz, 576p / 60Hz, 720p50 / 60Hz, 1080i50 / 60Hz, 1080p50 / 60Hz.

- CVBS output: PAL, NTSC_M, (NTSC_J).

- Power input: 5V USB.

Includes:

- 1 x Mini HDMI to AV converter

- 1 x USB cable
