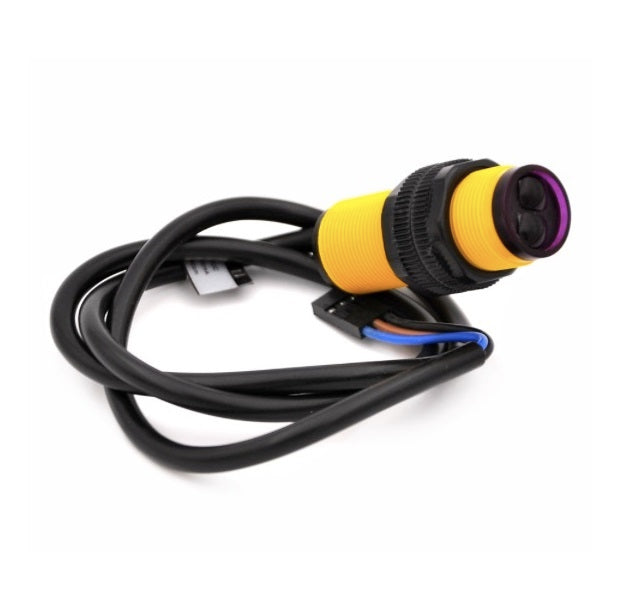

E18-D80NK Infrared Obstacle Sensor Proximity Switch - (AD53463)

Description:

This is a very inexpensive infrared sensor, easy to mount and use, with a long detection distance and less interference from visible light. The modulated IR signal implementation makes this sensor immune to interference caused by normal light from a light bulb or sunlight. This sensor has an adjustment screw to set the appropriate detected distance to make it useful in many applications, and then provides a digital output when it detects something within that range. This sensor does not measure a distance value. It can be used in robots for collision avoidance and in machine automation.

Specs:

- Input voltage: + 5VDC

- Current consumption: > 25mA (min) ~ 100mA (max)

- Dimensions: 1.7 cm (diameter) x 4.5 cm (length)

- Cable length: 45 cm

- Object detection: transparent or opaque

- Diffuse reflective type

- Detection range: 3 cm to 80 cm (depending on the surface of the obstacle)

- NPN output (normally high)

- Ambient temperature: -25°C ~ 55°C

- Pin configuration:

- Brown cable: + 5V

- Blue wire: GND

- Black cable: DIGITAL OUTPUT
