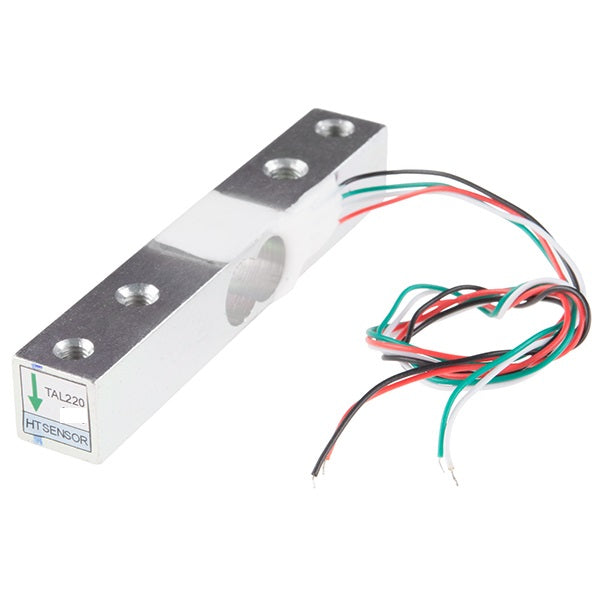

Load Cell - 5kg Straight Bar - (AD53438)

Description:

This straight bar load cell (sometimes called a strain gauge) can translate up to 5 kg of pressure (force) into an electrical signal. Each load cell is capable of measuring the electrical resistance that changes in response to, and proportionally, the strain (e.g., pressure or force) applied to the bar. With this gauge, you will be able to tell how heavy an object is, if the weight of an object changes over time, or if you simply need to detect the presence of an object by measuring the strain or load applied to a surface.

Each straight bar load cell is made of an aluminum alloy and is capable of reading a 5 kg capacity. These load cells have four strain gauges that are connected in a Wheatstone bridge arrangement. The wiring color code is as follows: red = E+, green = O+, black = E- and white = O-. In addition, these load cells offer an IP66 protection rating and feature two M4 and two M5 through-holes for mounting purposes.

Features:

- Range: (Kg) 5

- Accuracy class: (% R.O.) 0.02

- Output sensitivity: (mv / v) 1.0 ± 0.1

- Zero output: (% R.O.) ± 2

- Non-linearity: (% R.O.) ± 0.02

- Repeatability: (% R.O.) ± 0.01

- Lag: (% R.O.) ± 0.02

- Creep: (% R.O. / 30min) ± 0.02

- Zero temperature drift: (% R.O. / 10 ℃) 0.02

- Rated output temperature drift: (% R.O. / 10 ℃) 0.02

- Input resistance: (Ω) 410 ± 5

- Output resistance: (Ω) 350 ± 3

- Insulation resistance: (MΩ) ≥5000 (100 VDC)

- Recommended voltage: (V) 3 - 12 (DC)

- Temperature range: (℃) –20— + 60

- Overload capacity: (% R.C.) 150

- Cable length: (m) four shielded wires Φ 5 mm × 1.5

- Platform size: (mm) 600 × 600

- Safety protection class: IP65

- Cable connection method: red (+), black (-), green (+), white (-)

- Size: 80 x 12.7 x 12.7 mm
