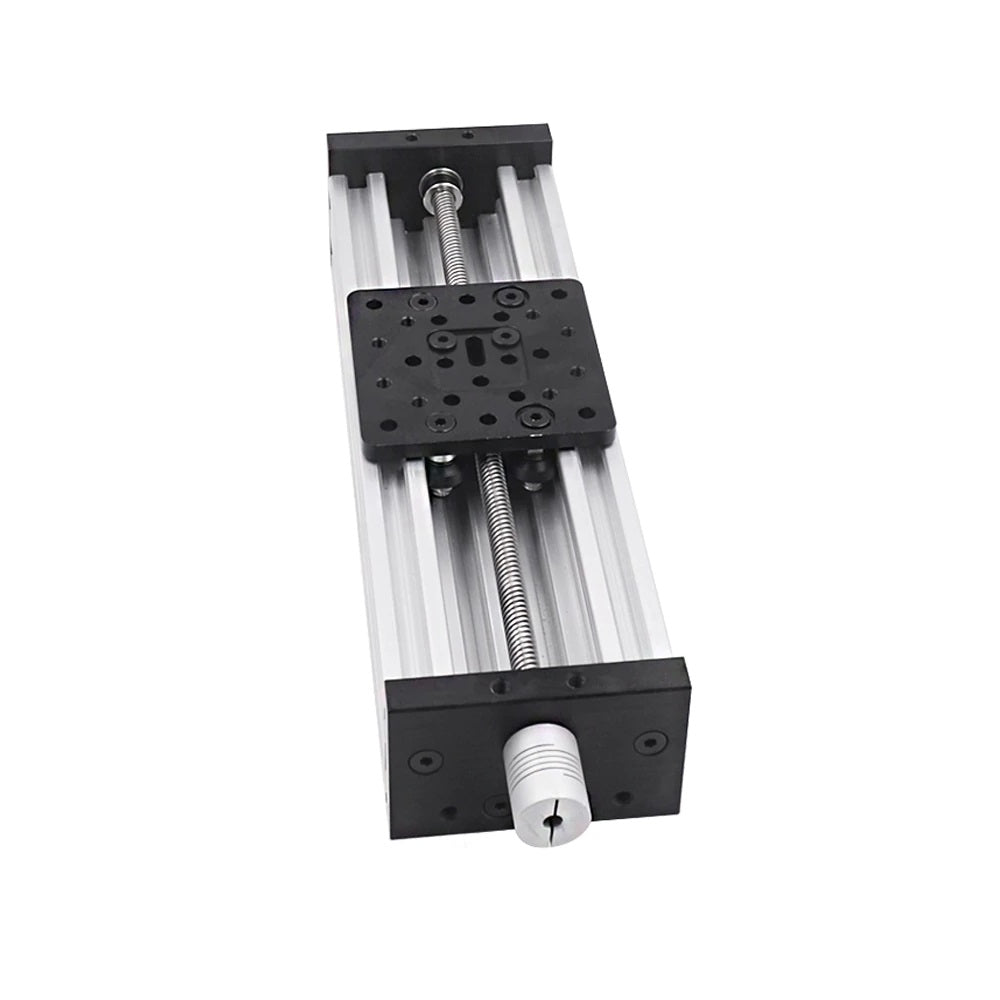

CNC Sliding Table Kit (250mm) - (AD53141)

Description:

This is an aluminum linear stage, ideal when high-precision linear displacement and significant force are required; it can be directly folded with cross-slide. This linear stage can be equipped with a Nema17 stepper motor or a servo motor.

Features:

- Horizontal load: maximum 125 kg (with Nema 23)

- Vertical load: 35 kg (with Nema 23)

- Stroke: 250 mm

- T8 lead screw type: 8 mm diameter

- Stepper motor: not included

- Positioning accuracy: ± 0.02 mm

- Dimensions: Linear stage height: 50mm, Width: 80mm, Length: 270mm

- Nema17 motor base is standard (flexible coupling)

Package includes:

- 1 x Linear stage (250 mm represents the effective stroke of the linear stage)

- 1 x Nema17 stepper motor coupling (5mm to 8mm). Stepper motor not included)
