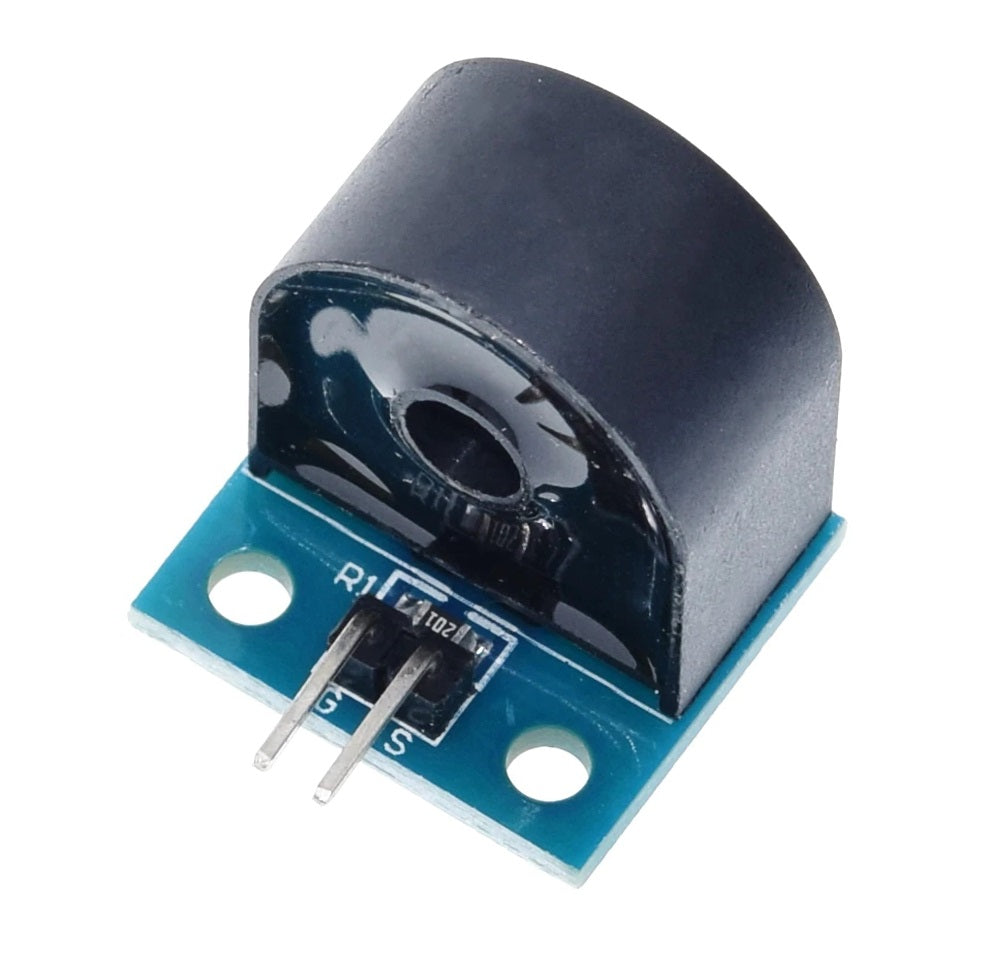

5A Range AC Current Transformer Sensor Module - (AD52978)

Description:

The module can be measured with 5A alternating current, the corresponding analog output 5A / 5mA, that is, for every 1A the measurement is 1mA.

Characteristics:

- RoHS: Yes

- Nominal input current at 50/60Hz: 5A

- Nominal output current at 50/60Hz: 5mA

- Ratio: 1000:1

- Linear range: 0~10A

- Linearity: 0.2%

- Insulation voltage: 3000V

- Operating temperature: -40°C to + 70°C

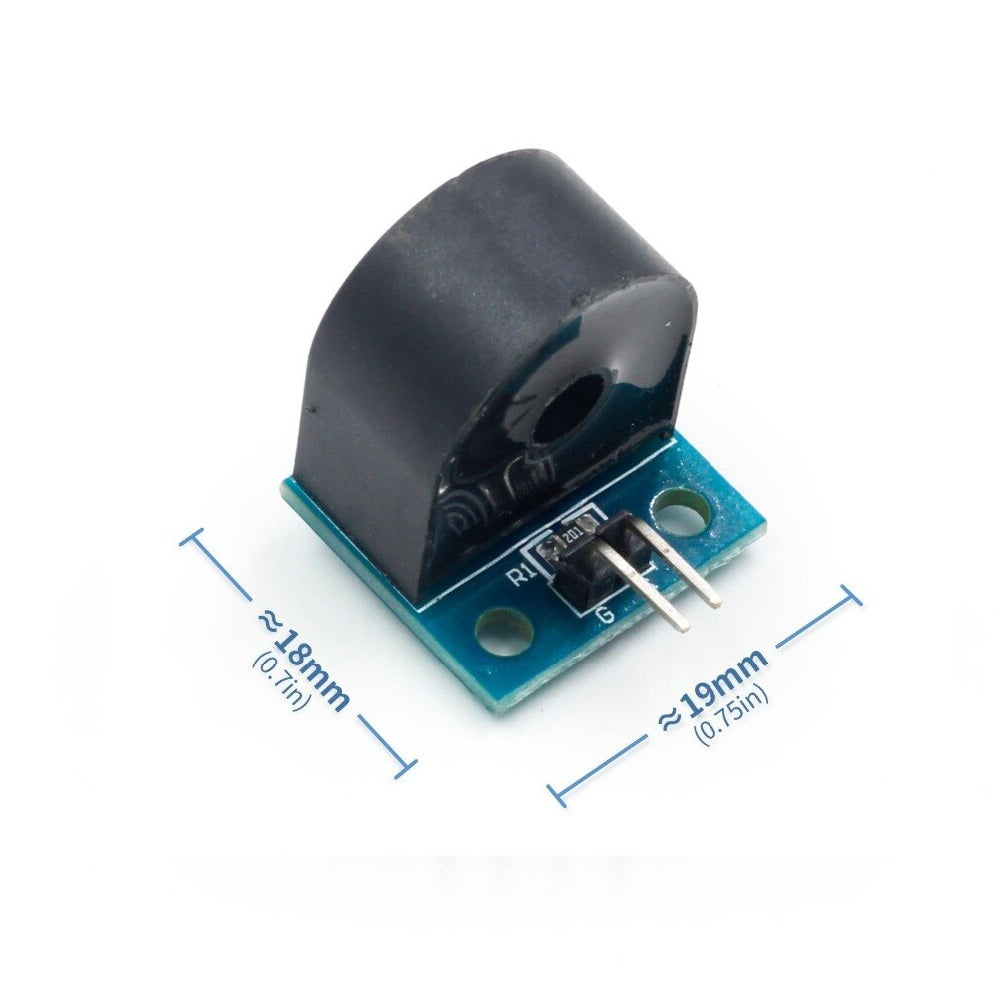

- PCB Size (WxL): 19 x 17.5 mm

Data sheet
