TTGO T-display ESP32 - (AD52955)

Description:

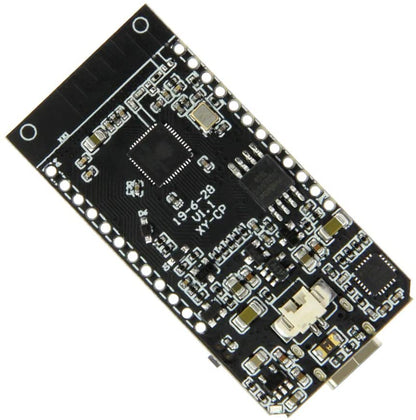

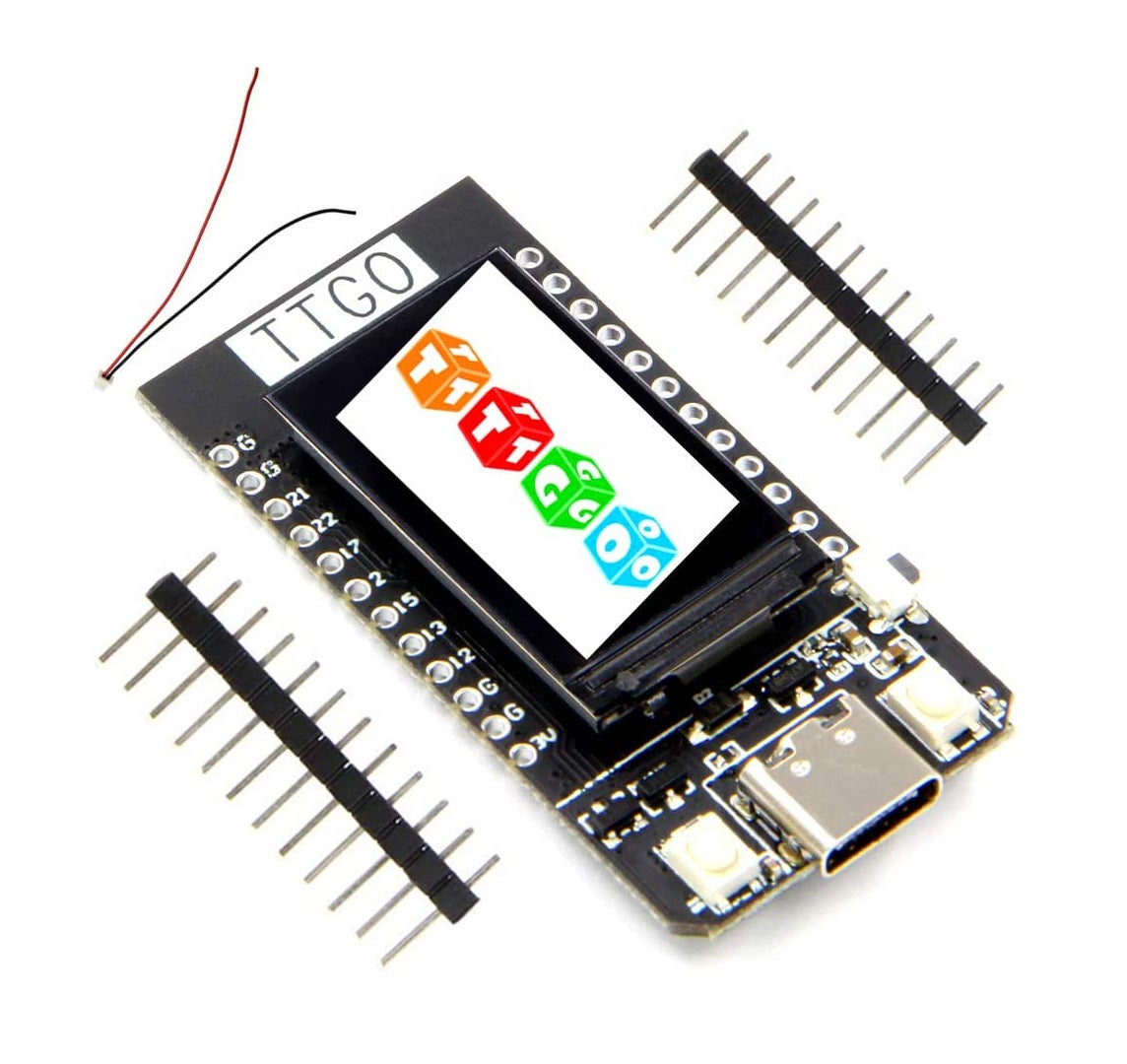

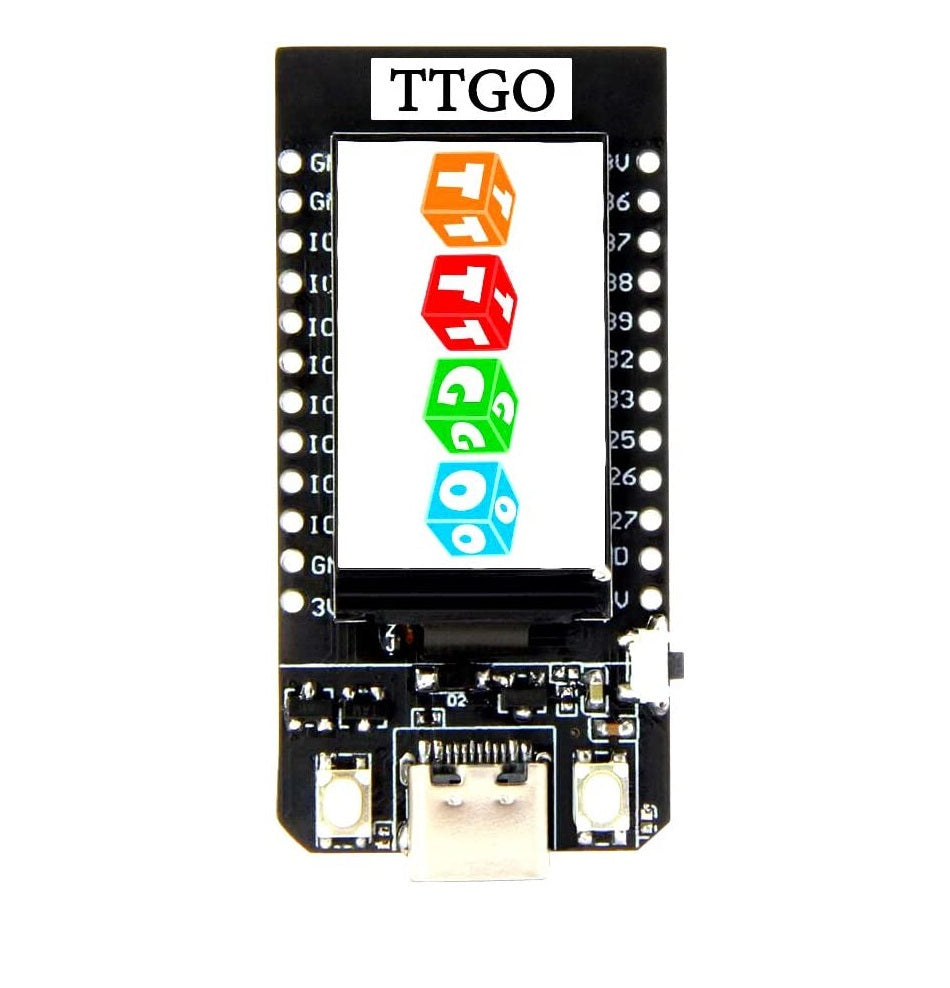

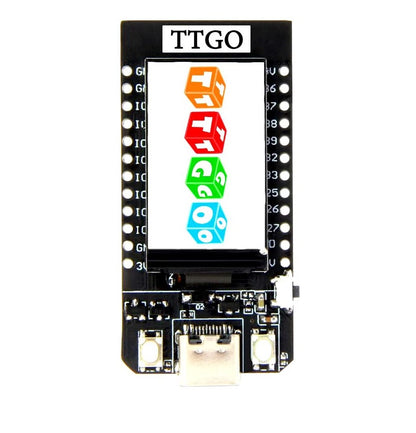

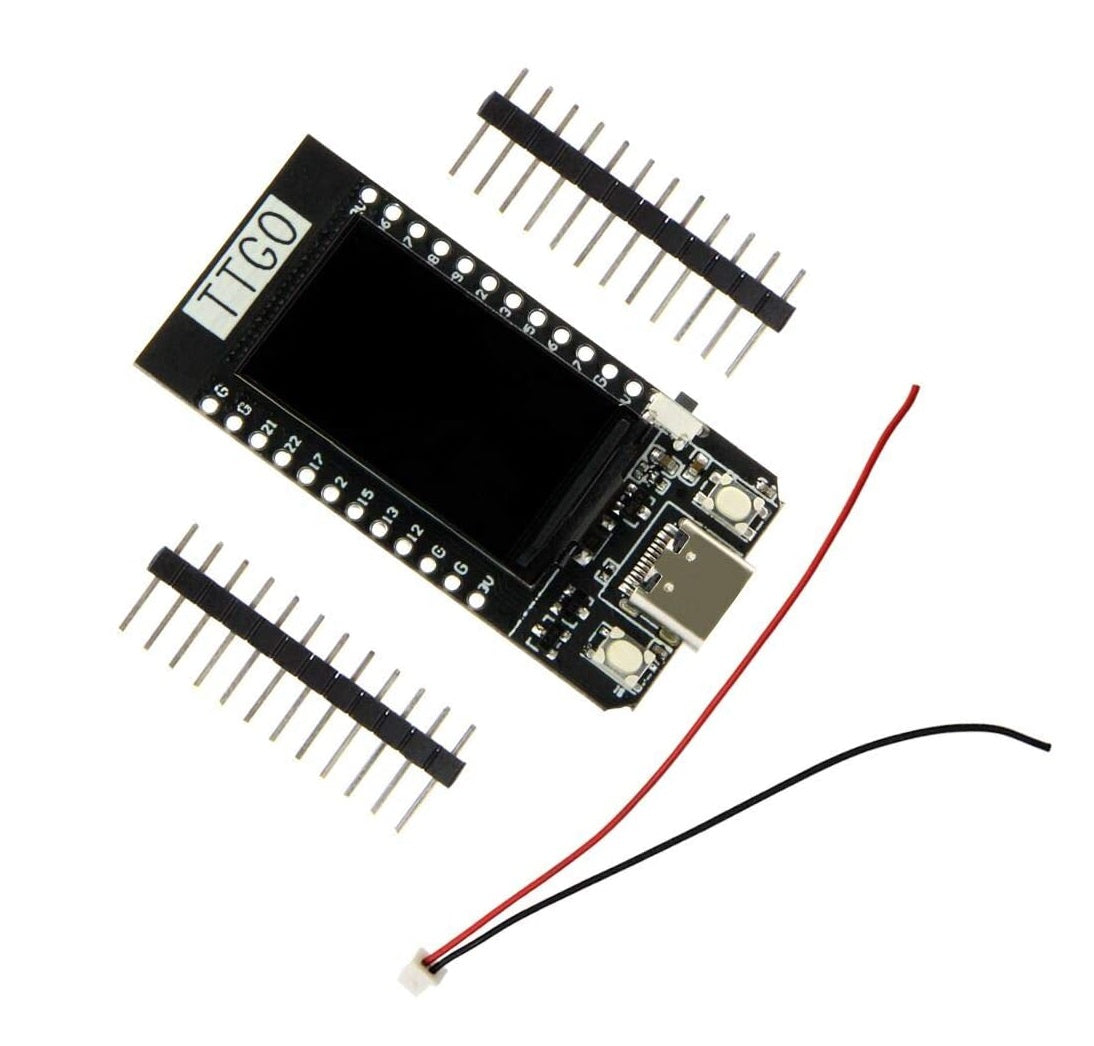

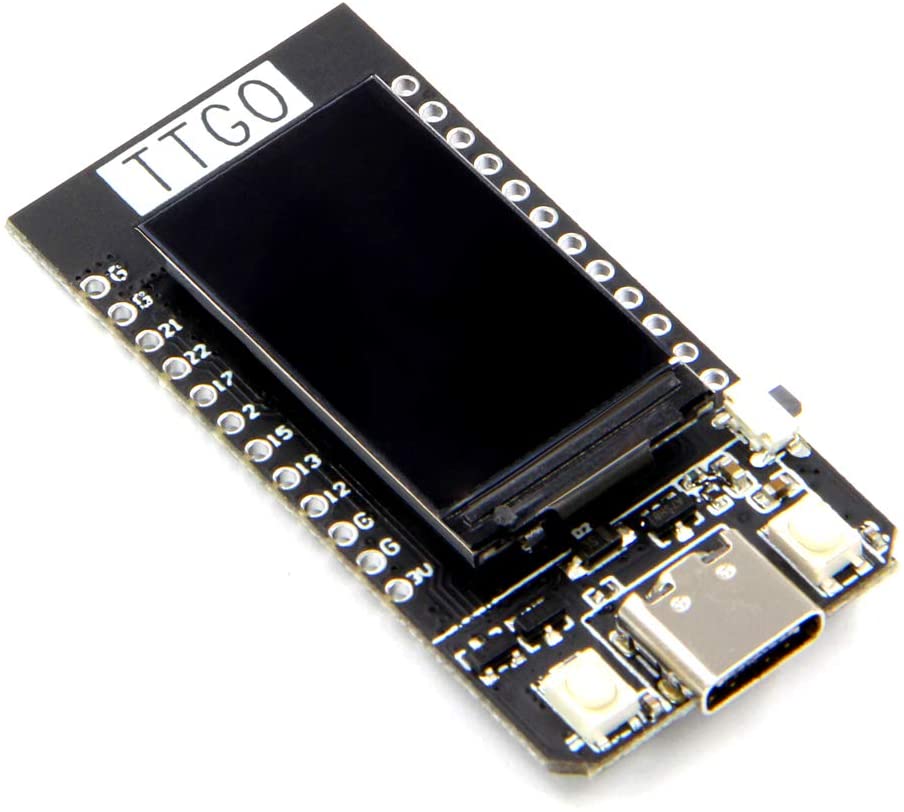

The LilyGO TTGO T-display ESP32 is a small Arduino development board with a color display, battery charging interface, 2 integrated GPIO buttons, and a USB-C connector.

Specifications:

• Chipset: ESPRESSIF-ESP32 240 MHz Xtensa®, single/dual-core 32-bit LX6 microprocessor
• Flash memory: QSPI flash 4 MB
• SRAM: 520 kB
• Button: Reset
• USB to TTL: CP2104

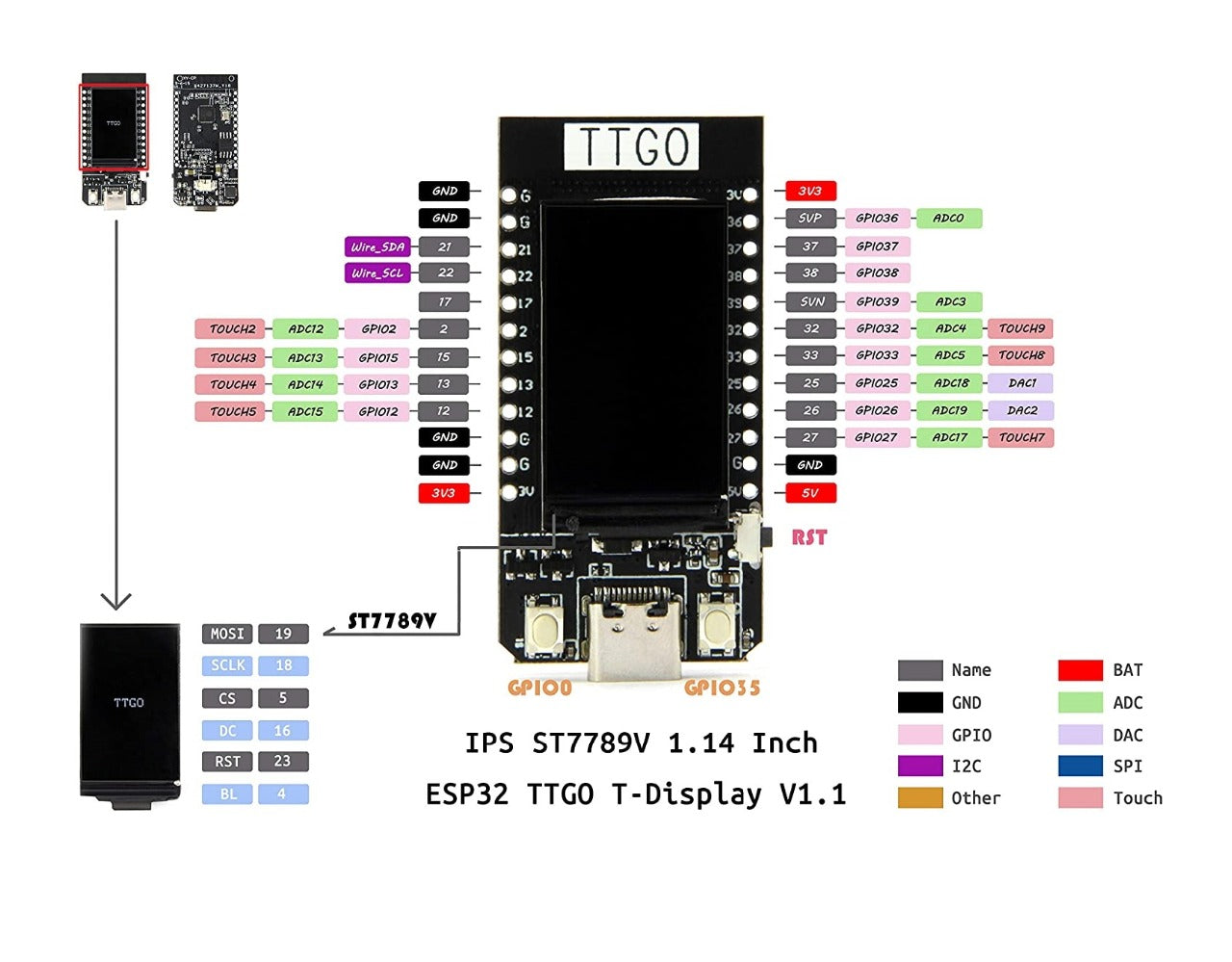

• Modular interface: UART, SPI, SDIO, I²C, LED PWM, TV PWM, I²S, IRGPIO, ADC, capacitive touch sensor, DACLNA preamplifier
• Display: 1.14 inch IPS ST7789V
• Operating voltage: 2.7 V-4.2 V
• Operating current: Approx. 60 mA
• Sleep current: Approx. 120 µA
• Operating temperature range: -40 °C ~ +85 °C

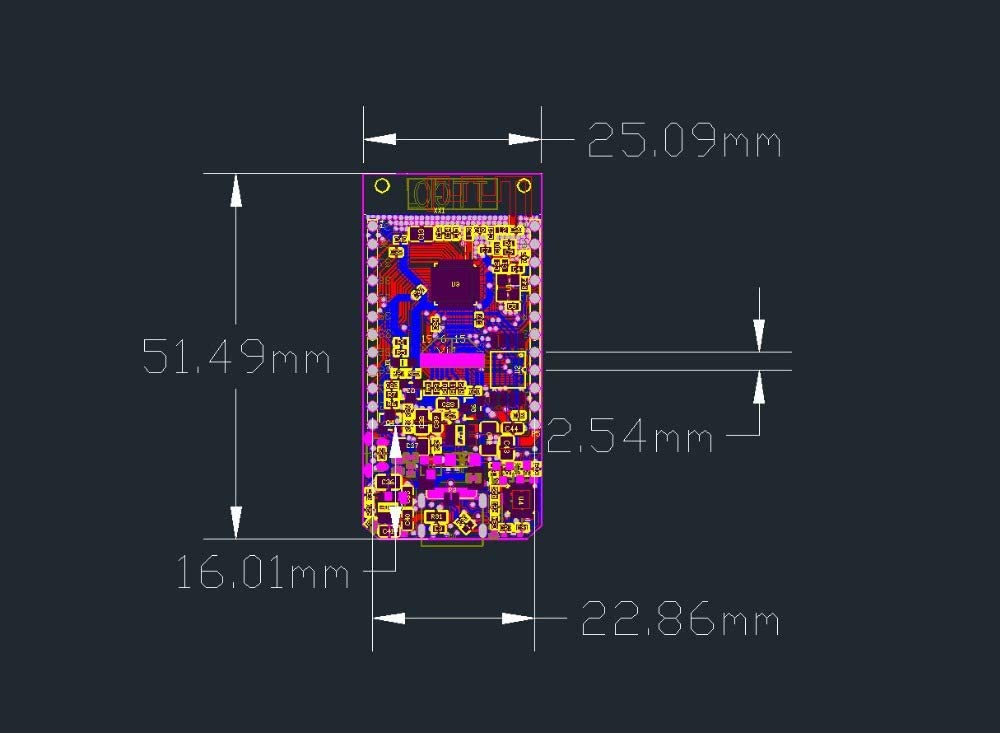

• Size Weight: 51.52 x 25.04 x 8.54 mm (7.81 g)
• Power supply: USB 5 V/1 A
• Charging current: 500 mA
• Battery: 3.7V lithium battery
• JST connector: 2 pins 1.25 mm
• USB: Type C
