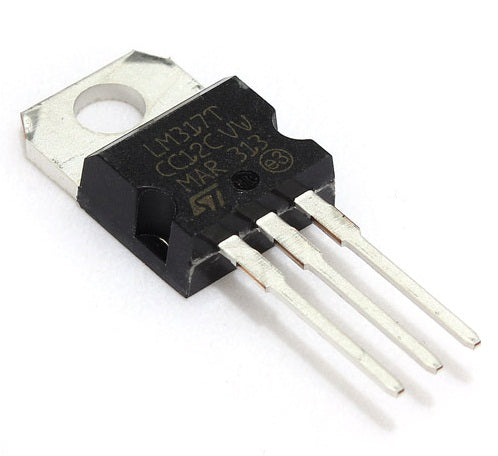

LM317 (TO-220) Adjustable Voltage Regulator +(1.2 to 37V) - (AD528)

Description:

This is the LM317 voltage regulator, a three-terminal positive regulator with an adjustable output voltage from 1.2V to 37V. This adjustable regulator provides local regulation, internal current limiting, thermal shutdown control, and safe-area protection for your project. Did we mention this guy is easy to use? It only requires two external resistors to set the output voltage. Each of these voltage regulators can deliver a maximum current of 1.5A.

Features:

- Output Current: 1.5A

- Adjustable Output: 1.2V to 37V

- Internal Thermal Overload Protection

- Internal Short-Circuit Current Limit

- Package: TO-220

- Input/Output Differential Voltage: 40V

- Operating Temperature Range: 0 to +125°C

- Power Dissipation: Internally Limited

Datasheet
