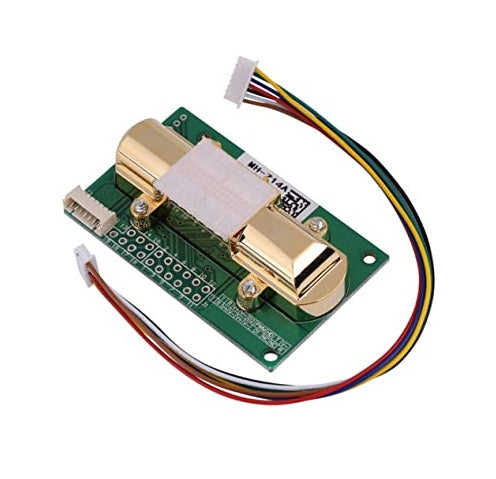

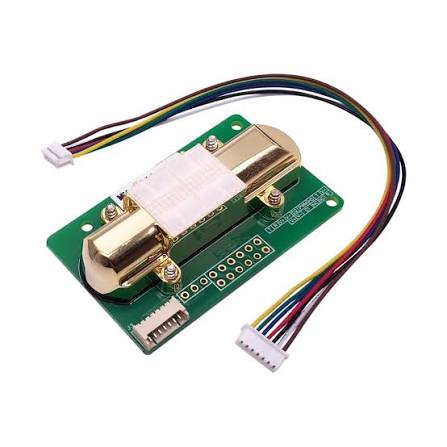

MH-Z14A Infrared CO2 Module - (AD51961)

Description:

The MH-Z14A NDIR infrared gas module is a common type of small-sized sensor that uses the non-dispersive infrared (NDIR) principle to detect the presence of CO2 in the air, with good selectivity, no oxygen dependence, and a long life. The built-in temperature sensor can compensate temperature; it has both digital output and analog voltage output. It is developed by closely integrating infrared-absorbing gas detection technology, precision optical circuit design, and superior circuit layout.

Characteristics:

- High sensitivity, high resolution.

- Low energy consumption.

- Output mode: UART and PWM wave.

- Temperature compensation, excellent linear output.

- Good stability

- Long service life.

- Water vapor anti-interference.

- Working voltage: 3.6V~5.5V DC

- Average current: <18 mA

- Interface level: 3.3 V

- Measuring range: 0~5% VOL optional

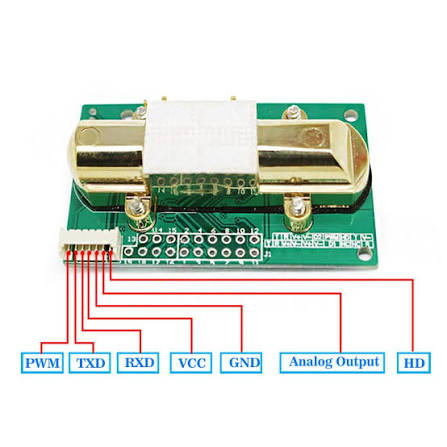

- Output signal: PWM UART

- Warm-up time: 3 minutes

- Response time: T90 <60s

- Working temperature: 0℃ ~ 50℃

- Working humidity: 0 ~ 95% RH
