Fingerprint Sensor - (AD5151)

Description:

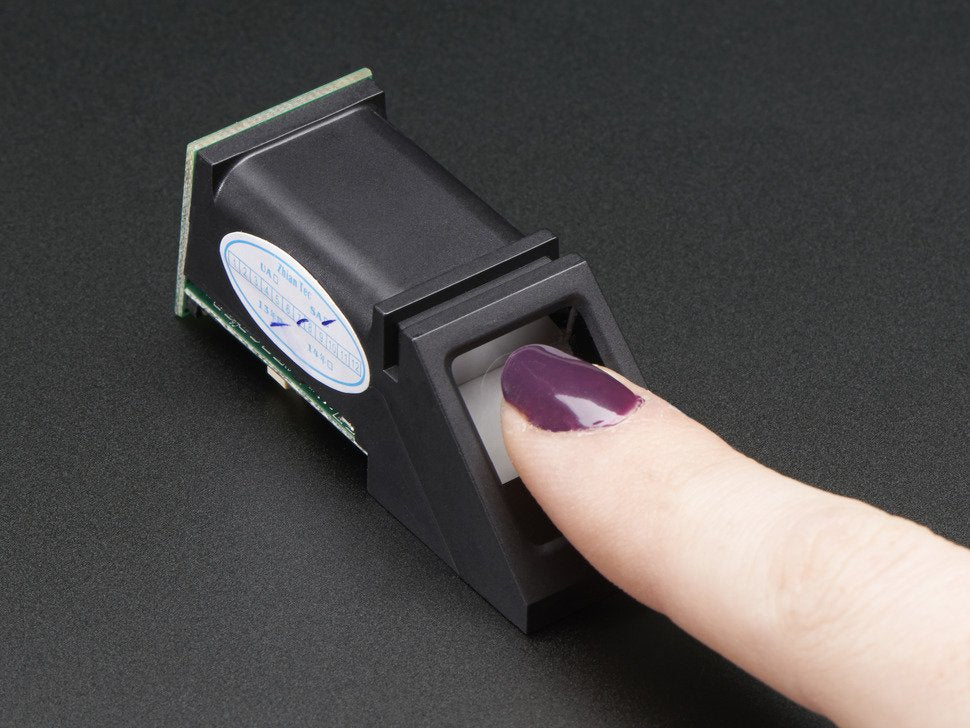

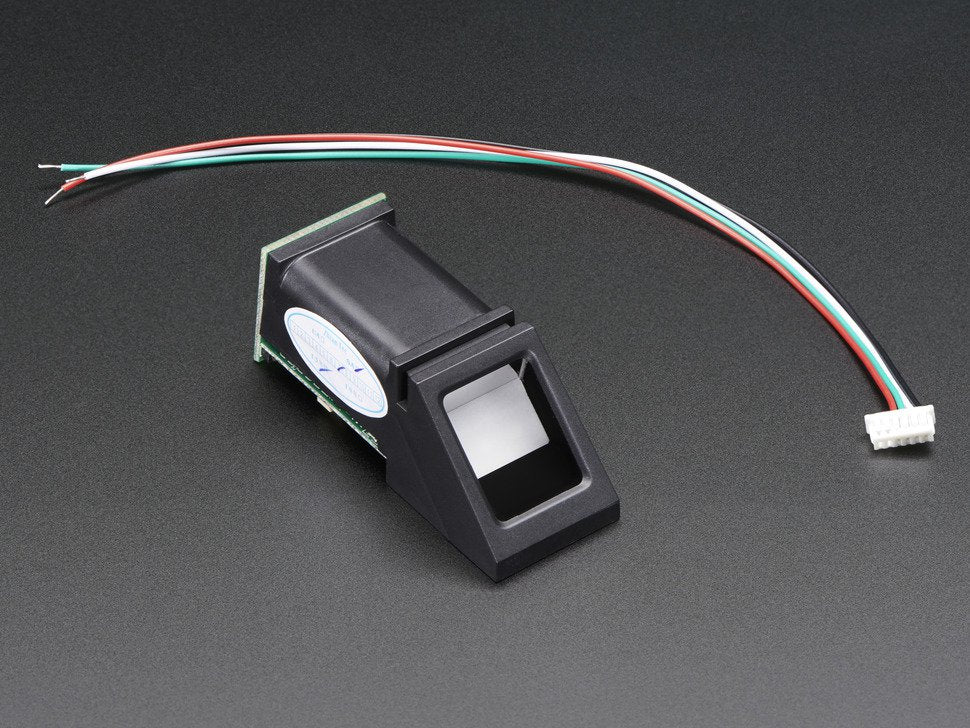

Protect your project with biometrics—this all-in-one optical sensor makes fingerprint detection and verification super simple. These modules are typically used in safes—there's a high-power DSP chip that handles image rendering, calculations, and the search and investigation functions. It connects to any microcontroller or system with TTL serial and sends data packets to take photos, detect fingerprints, and perform the search. You can enroll new fingers directly—up to 162 fingerprints can be stored in the flash memory. There's a red LED on the lens that lights up during a photo so you know it's working.

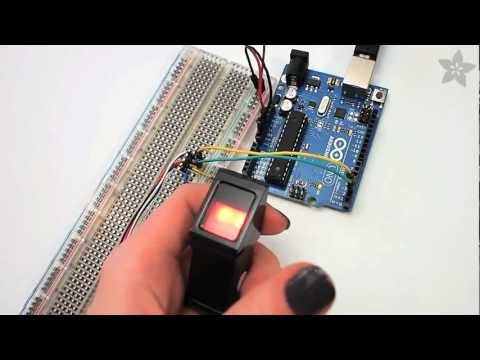

We like this particular sensor because it's not only easy to use, it also comes with fairly straightforward Windows software that makes testing the module simple—you can even register using the software and see a fingerprint image on your computer screen. But, of course, we wouldn't leave you with a data sheet and a "good luck!" We've edited a complete Arduino library so you can run the example in less than 10 minutes. The library can log and search, so it's perfect for any project . We've also edited a detailed tutorial on wiring and usage . This is by far the best fingerprint sensor you can get.

Technical Details:

- Supply voltage: 3.6 - 6.0VDC

- Operating current: 120mA max

- Peak current: 150mA max

- Fingerprint imaging time: <1.0 seconds

- Window Area: 14mm x 18mm

- File Signature: 256 bytes

- Template file: 512 bytes

- Storage capacity: 162 templates

- The degree of security (1-5 from less to security)

- False Acceptance Rate: <0.001% (Level 3 Security)

- False Rejection Rate: <1.0% (security level 3)

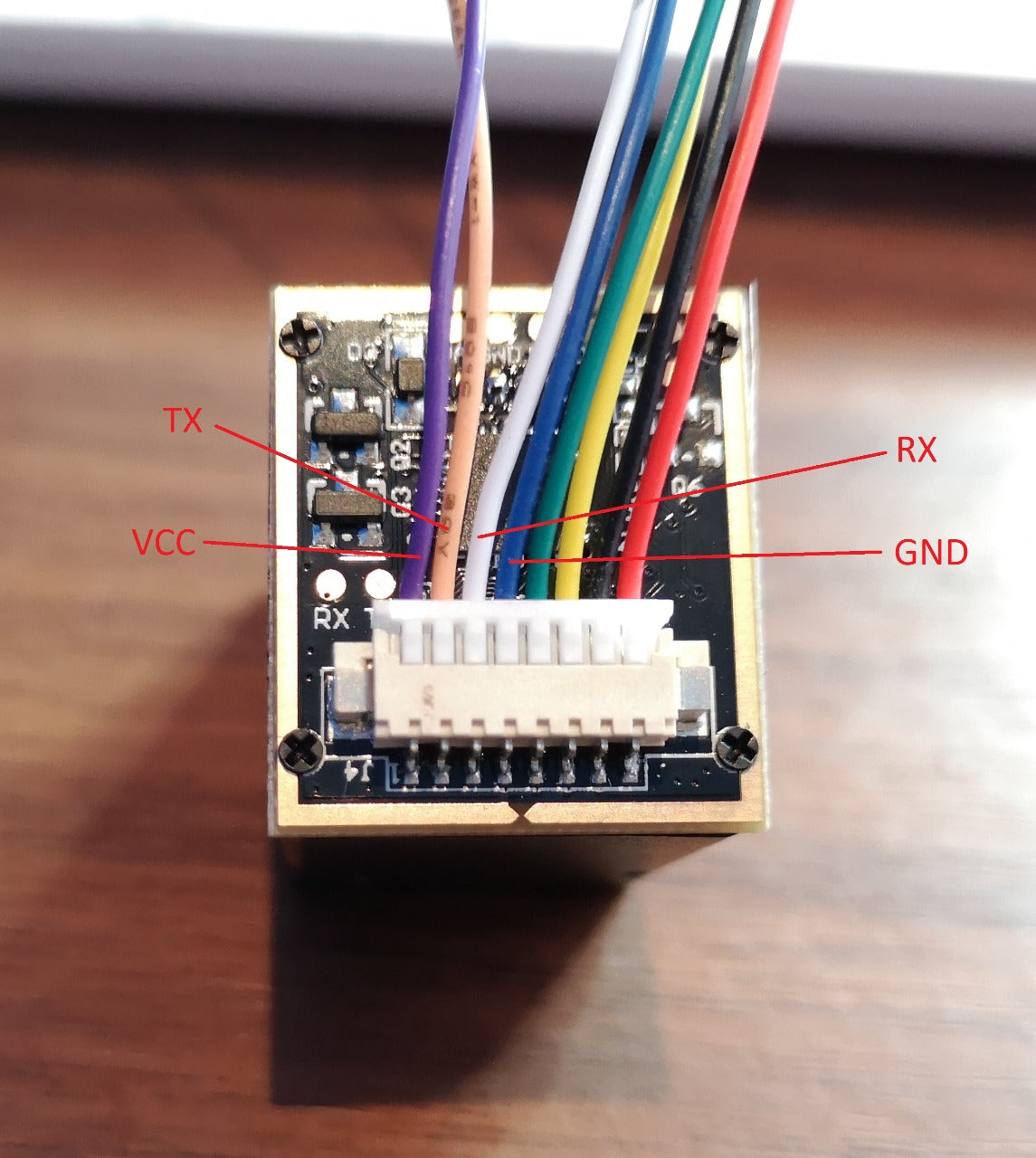

- Interface: Serial TTL

- Baud rate: 9600, 19200, 28800, 38400, 57600 (default is 57600)

- Working temperature rating: -20C to +50C

- Working humidity: 40% -85% relative humidity

- Full dimensions: 56 x 20 x 21.5mm

- Exposed Dimensions (when placed in the case): 21mm x 21mm x 21mm triangular
