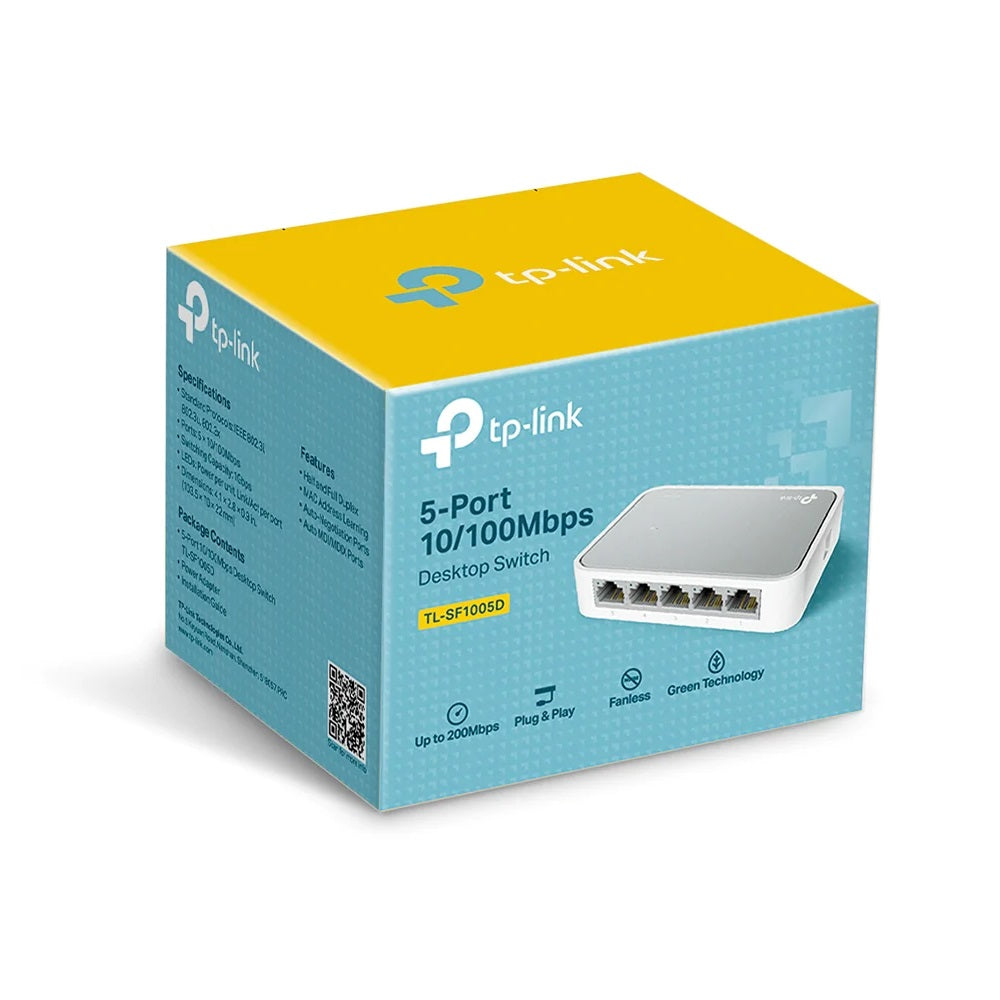

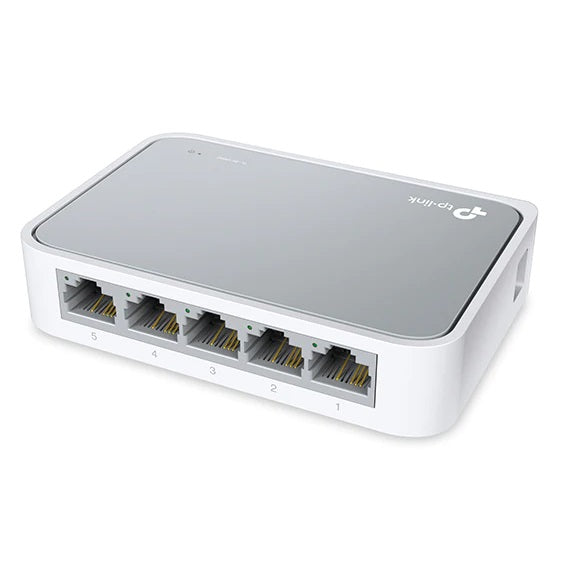

TP-Link 5-Port Desktop Ethernet Switch TL-SF1005D - (AD51297)

Description:

The TL-SF1005D 5-Port 10/100Mbps Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support the Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The switch is Plug-and-Play, and each port can be used as a general port or an Uplink port; it can be connected to a server, hub, or switch using either a straight-through or crossover cable. The TP-LINK TL-SF1005D 5-Port 10/100Mbps Fast Ethernet Switch offers an economical, easy-to-use, high-performance, and perfectly integrated upgrade to convert your old network into a 100Mbps network. It will boost your network's performance with full-duplex data transfer. Wire-speed packet switching can be as fast as the speed at which your network sends these packets.

Features:

- Supports IEEE802.3X flow control for full-duplex mode and backpressure for half-duplex mode

- Supports MAC address auto-learning and auto-updating

- LED indicators for power, link, activity monitoring

- Plastic casing, desktop or wall-mountable design

- External power adapter supplied

Specifications:

- Standards and Protocols: IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP

- Basic Functions: Wire-speed performance

- MAC address auto-learning and auto-aging

- IEEE802.3X flow control for Full-duplex mode and backpressure for Half-duplex mode

- Backplane Bandwidth: 1Gbps

- MAC Address Table: 1k

- Forwarding Rate: 10Base-T: 14880pps/port 100Base-TX: 148800pps/port

- Transmission Method: Store-and-Forward

- Ports: 5 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

- Network Media: 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m)

- LED Indicators: Power, Link/Activity (1, 2, 3, 4, 5)

- Safety & Emissions: FCC, CE

- Dimensions (W x D x H): 140*87*27.5 mm

- Environment: Operating Temperature 0ºC ~ 40ºC (32ºF~104ºF), Storage Temperature -40ºC ~ 70ºC (-40ºF~158ºF), Operating Humidity: 10% ~90%, Non-condensing Storage Humidity: 5% ~90%, Non-condensing

- Power: External power adapter
