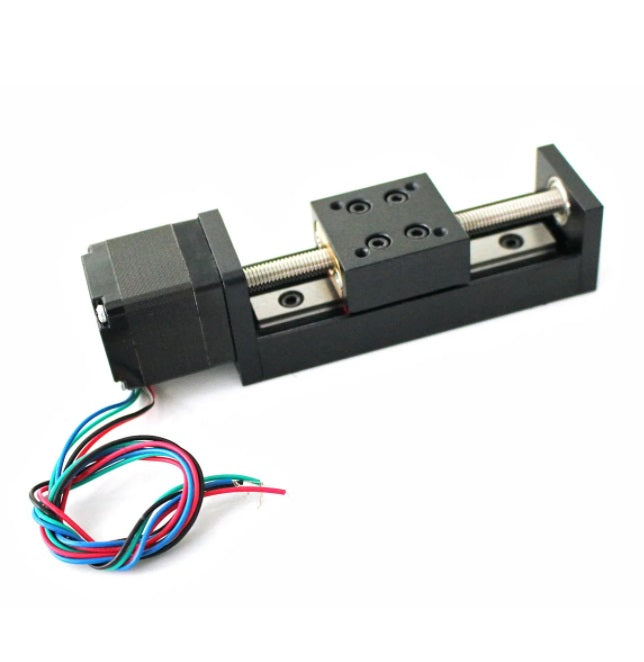

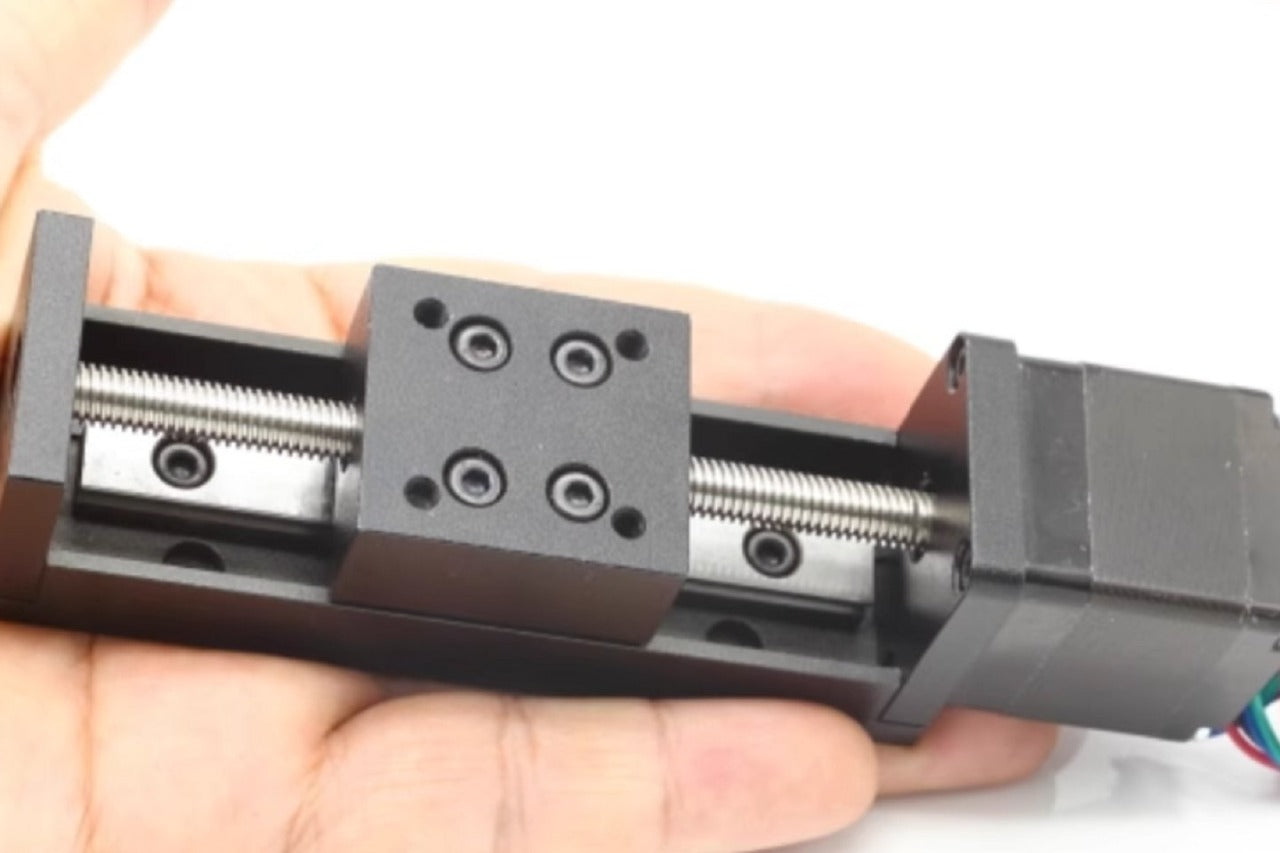

CTM28 Miniature Linear Guide Rail (Nema 11) 150mm T6 Screw - (AD51217)

Description:

This is an aluminum sliding table, ideal for high-precision linear movement requiring considerable force; it can be folded directly with transverse sliding. This sliding table includes a Nema 11 stepper motor.

Features:

- 4-wire bipolar hybrid stepper motor

- Coil pair wire colors: Red-Blue / Black-Green (A+, A- / B+, B-)

- Phase current: 0.5 - 0.6A

- Torque: 0.07 Nm

- Step angle: 1.8°

- Spindle:

    - T6x2 mm (2 mm pitch, 6 mm diameter)

- Nut material: brass

- Linear rail width: 8 mm (MGN8H). Accuracy class: C7

- Repeatability: 0.02-0.03 mm

- Pitch: 0.15 - 0.2 mm

- Maximum speed: 16 mm/s (TR6x2 mm)

- Maximum load: vertical 2.5kg / horizontal 5kg
