Raspberry Pi Camera Board v2 - 8 Megapixels - (AD5111)

Description:

Amazing! The Camera v2 is the new official camera motherboard launched by the Raspberry Pi Foundation!

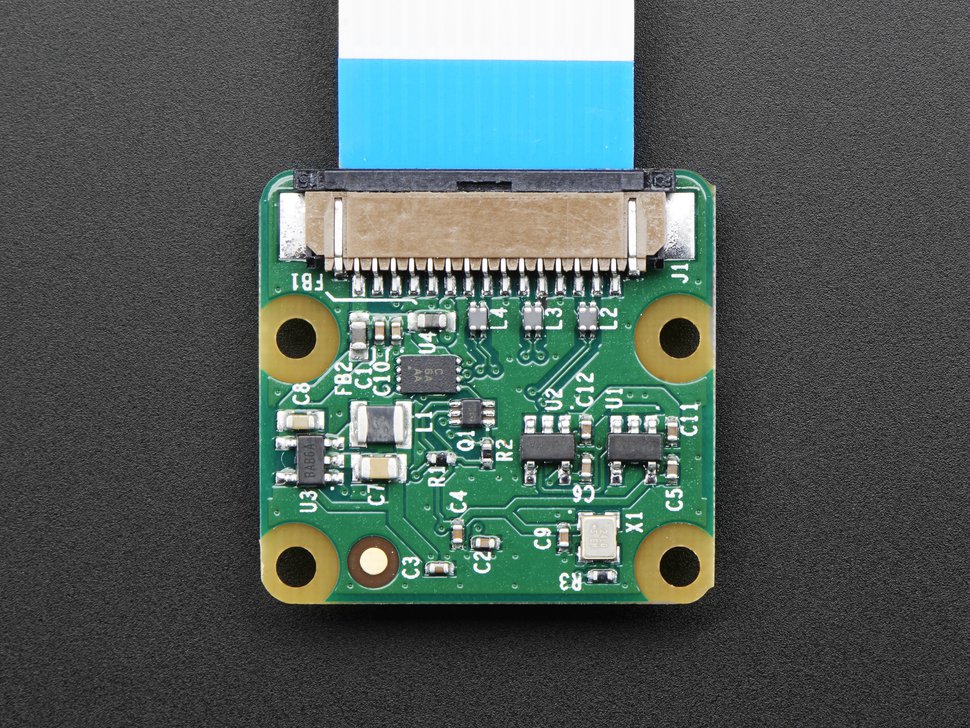

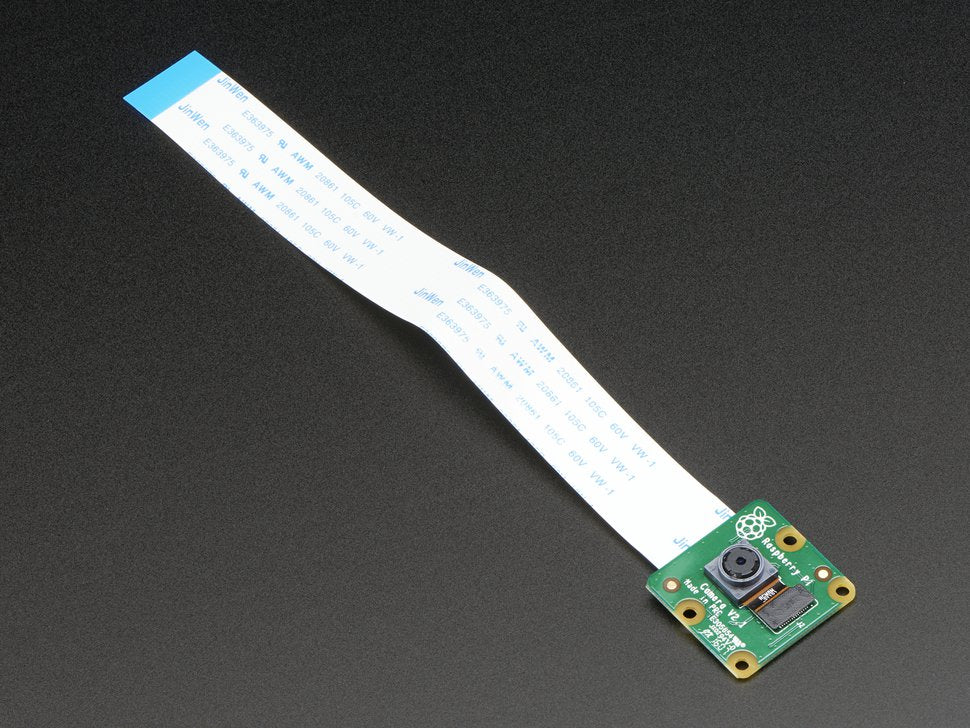

The Raspberry Pi Camera Base Board v2 is a high-quality, custom-designed, 8-megapixel Sony IMX219 image sensor add-on board for Raspberry Pi, featuring a fixed-focus lens. It is capable of capturing 3280 x 2464 pixel still images and also supports 1080p30, 720p60, and 640x480p90 video.

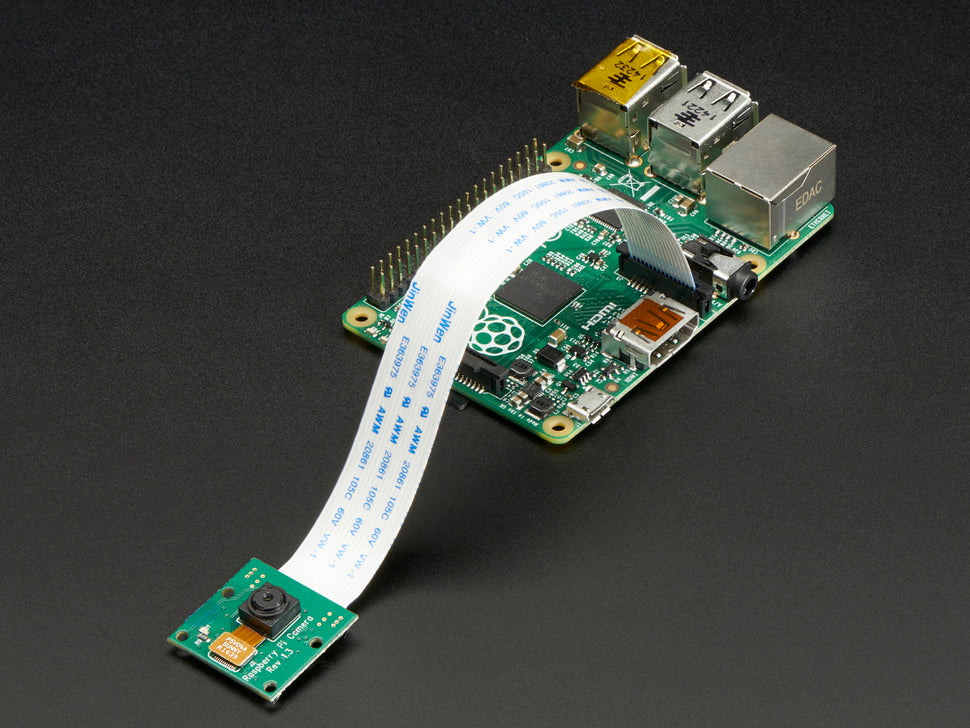

It connects to the Pi via one of the small connectors on the top surface of the board and uses the dedicated CSi interface, designed specifically for connecting to cameras.

The improved Raspberry Pi v2 camera board includes:

• Improved resolution
  • High-quality Sony IMX219 image sensor with 8-megapixel native resolution
  • The cameras can capture still images of 3280 x 2464 pixels
• High quality
  • Capture video at 1080p30, 720p60, and 640x480p90 resolutions
  • All software is compatible with the latest version of the Raspbian operating system.
  • 1.4µm x 1.4µm pixels with OmniBSI technology for high performance (high sensitivity, low crosstalk and low noise)
  • 1/4" optical size

Note: Raspberry Pi not included!

Technical details:

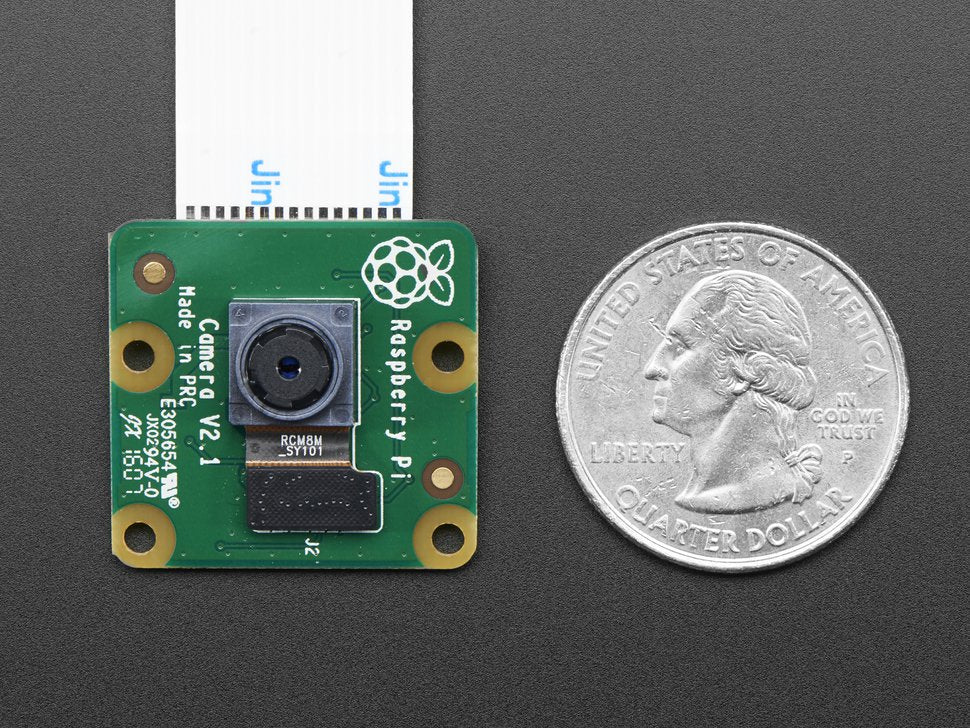

• Dimensions: 25 mm x 23 mm x 9 mm / 0.98" x 0.90" x 0.35"
• Weight (camera plate + cable): 3.4 g
