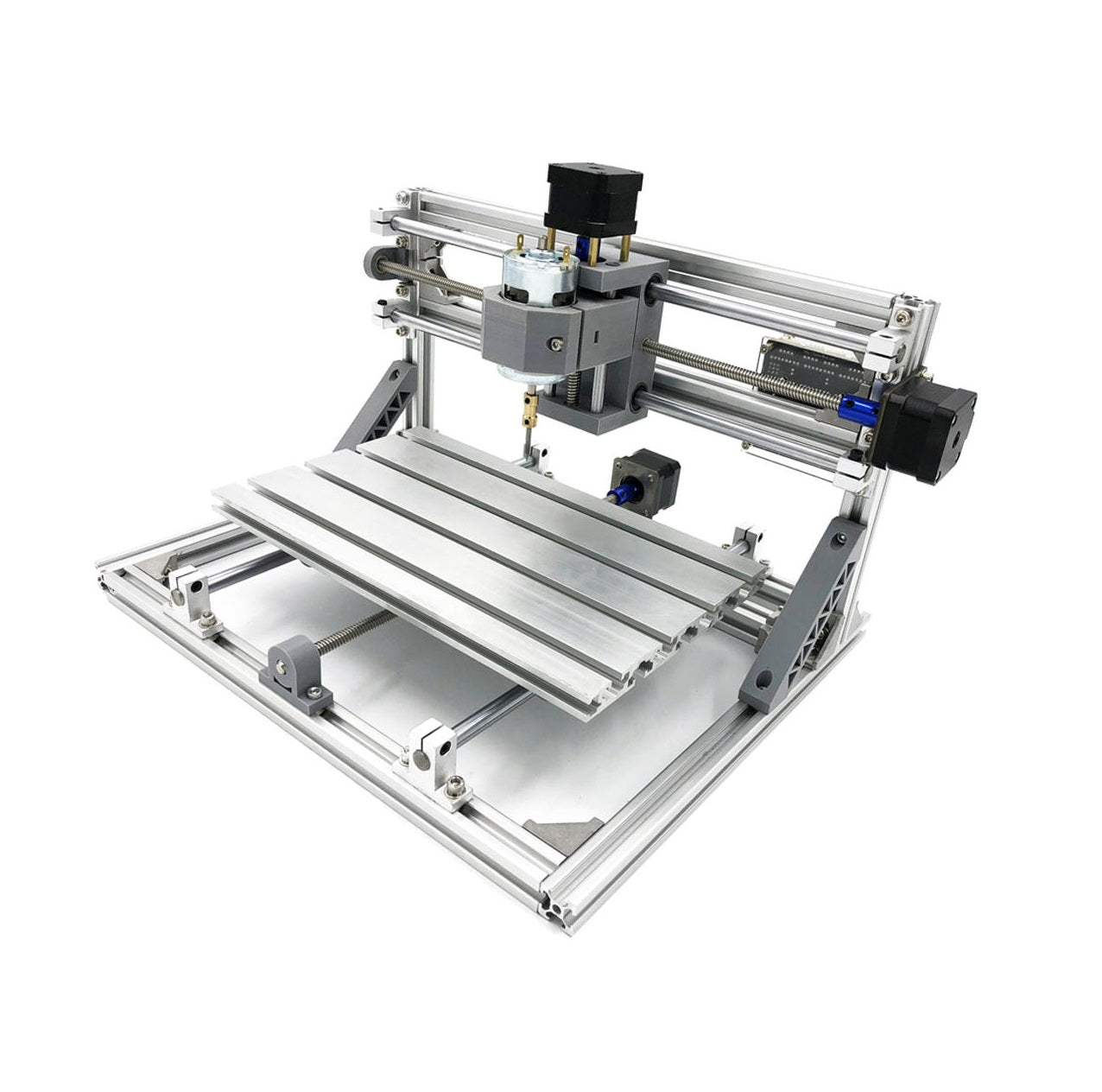

3 Axis CNC Router 3018 Milling Machine - (AD50126)

Description:

This is a personal mini CNC engraving machine, perfect for artists, hobbyists, and craft makers. Ideal for fun, study, and research. Not intended for production use. Requires self-assembly from scratch. Includes all necessary components for assembly. Assembly requires some mechanical skill. This kit comes with an assembly guide.

This is a true DIY (Do It Yourself) kit. If you are a true Maker or an artist, this machine offers an excellent way to repeat processes and do things that no manual tool has ever allowed you to do.

Technical specifications:

- Rack: Aluminum + Plastic (gray)

- Dimensions: 400 x 330 x 240mm (excluding motors and other protruding parts)

- Working area: 300 x 180 x 40mm

- Linear axis: 10 mm diameter + 8 mm diameter

- Screw: 8 mm stainless steel screw

- Stepper motor: 3pcs two-phase NEMA 17 (1.3A 0.25Nm)

- Spindle: 755 spindle motor (12-36V) 24V: 7000rpm

- Table: 15180 profile (260x180mm footprint)

- Power supply: 24V 5.6A

- Control software: Grbl (free software):

- OS support: Windows XP, Win7, Win8, Win10, Linux.

- Processing materials: Can engrave: plastic, wood, acrylic, PVC, PCB or similar material. Cannot engrave or process metals.

Assembly Manual
