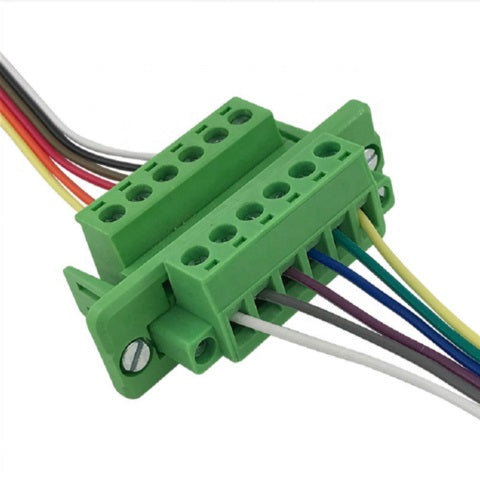

6-Pin 2EDG Terminal Block Connector Kit - (AD49835)

Description:

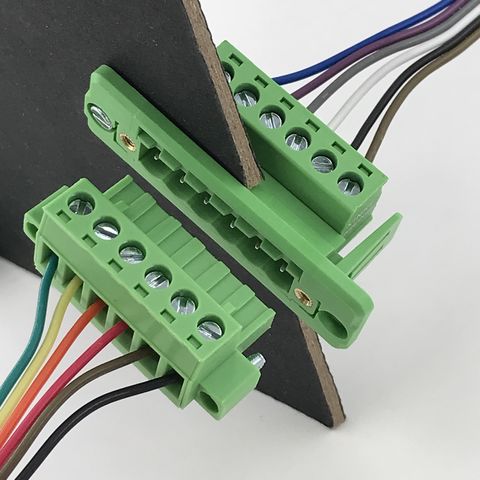

Screw terminals spaced at 5.08 mm. They come in 2 or more rows. Rated up to 300V at 8A. The terminal can accept wires from 26 AWG to 10 AWG. The pitch or pin spacing is 5.08 mm, and they are ideal for wall or panel mounting.

Specifications:

- Maximum voltage: 300V

- Maximum current: 8A

- Contact resistance: 20mΩ

- Insulation resistance: 5000MΩ/1000V

- Wire gauge: 26 - 10AWG

- Operating temperature: -40°C~+105°C

- Length: According to the number of pins

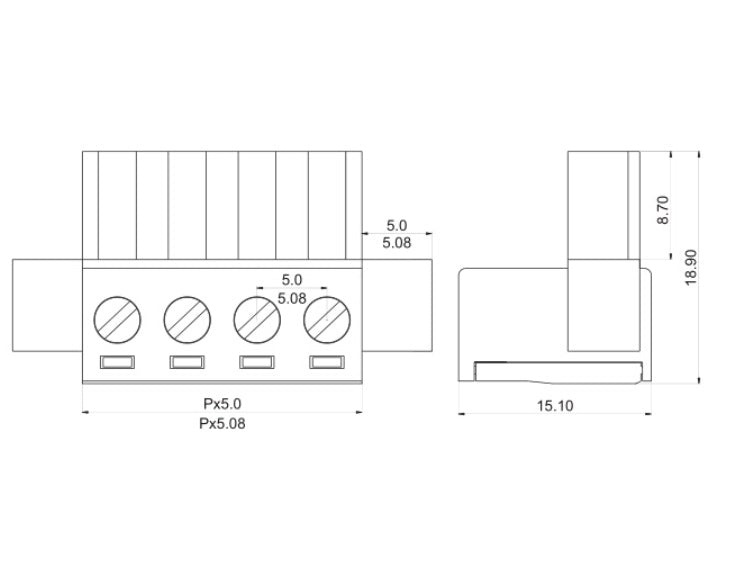

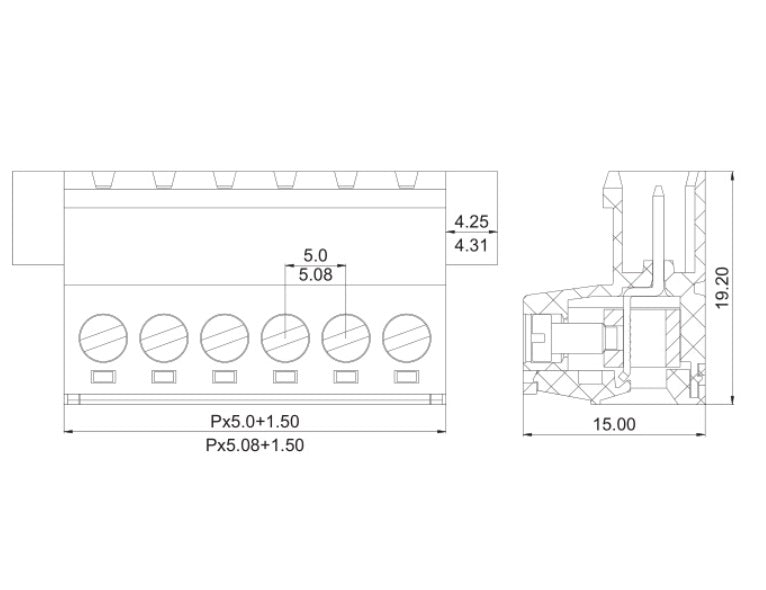

- Pin Spacing: 5.08 mm

- Poles: 6

- Material: Plastic

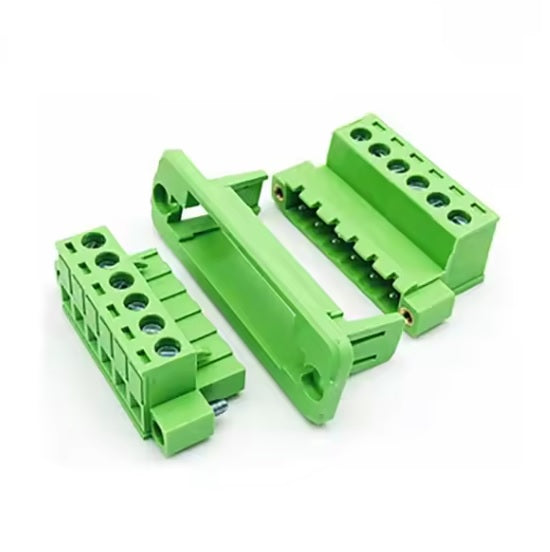

The kit includes:

- 1x Male Connector

- 1x Female Connector

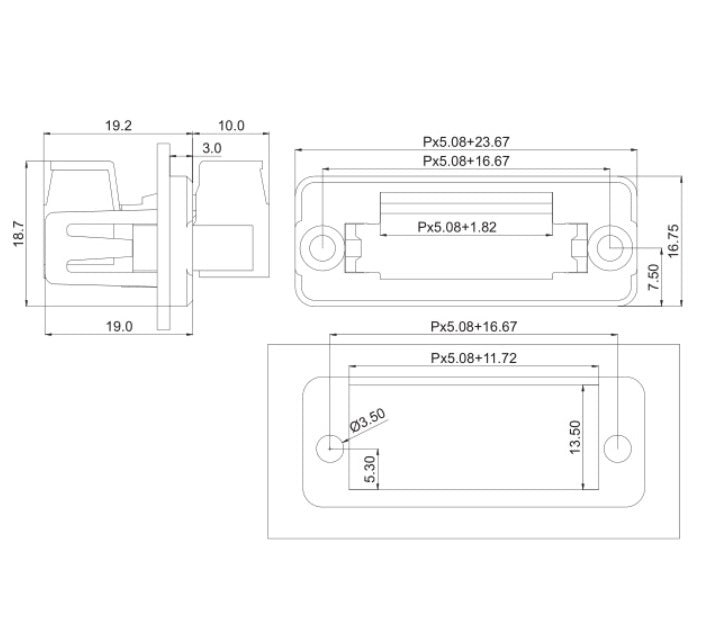

- 1x Panel Mount Support
