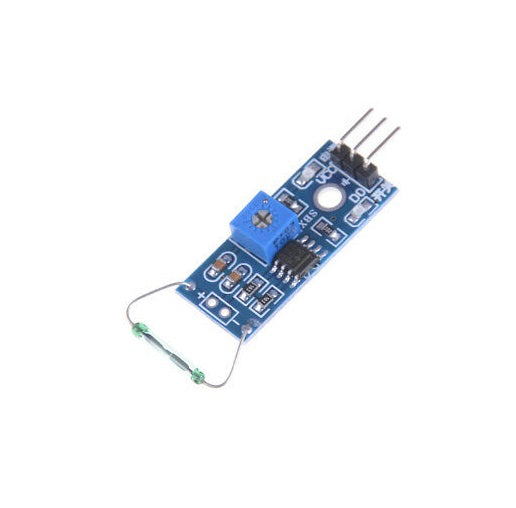

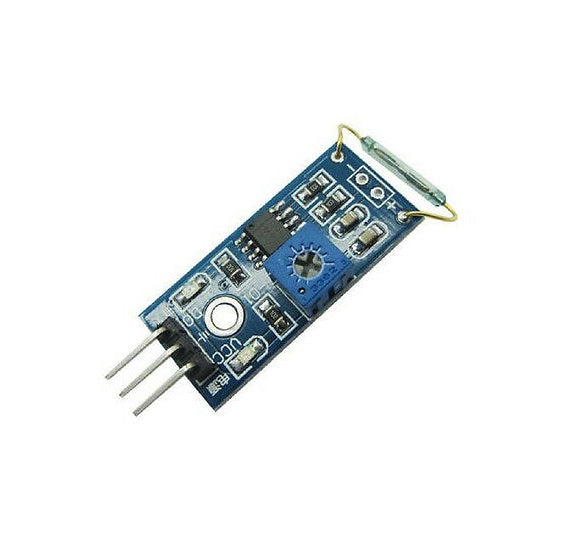

Reed Switch Sensor Module - (AD49716)

Description:

The reed switch is a type of passive electronic switching component with contacts featuring a simple structure, small size, and easy control. It consists of a sealed glass casing containing two elastic ferrous plates and is filled with an inert gas called rhodium.

Characteristics:

- Normally Open (NO) Switch

- The comparator output is a clear signal, good waveform and driving capacity of more than 15 mA.

- Working voltage: 3.3V - 5V

- Output format: digital switching output (0 and 1)

- With fixing holes for easy installation

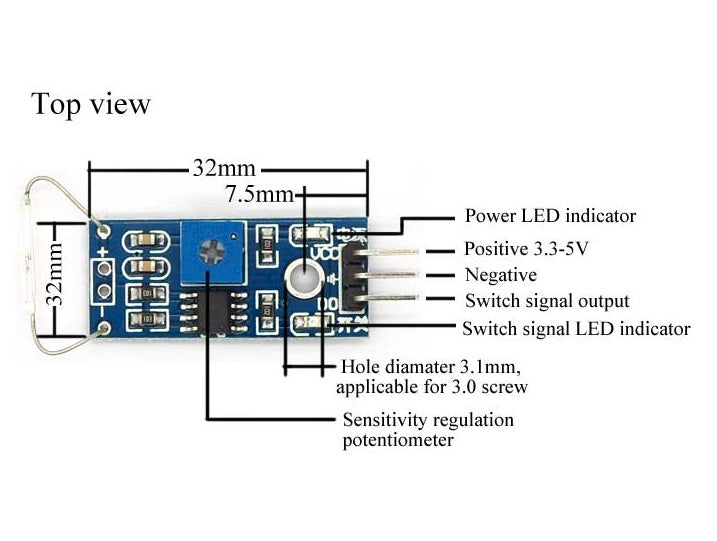

- Small PCB size: 32mm x 14mm

- Incorporates the LM393 comparator with wide voltage
