AD16-22SM Green LED Pilot with Flash Light and Buzzer 12V - (AD48326)

Description:

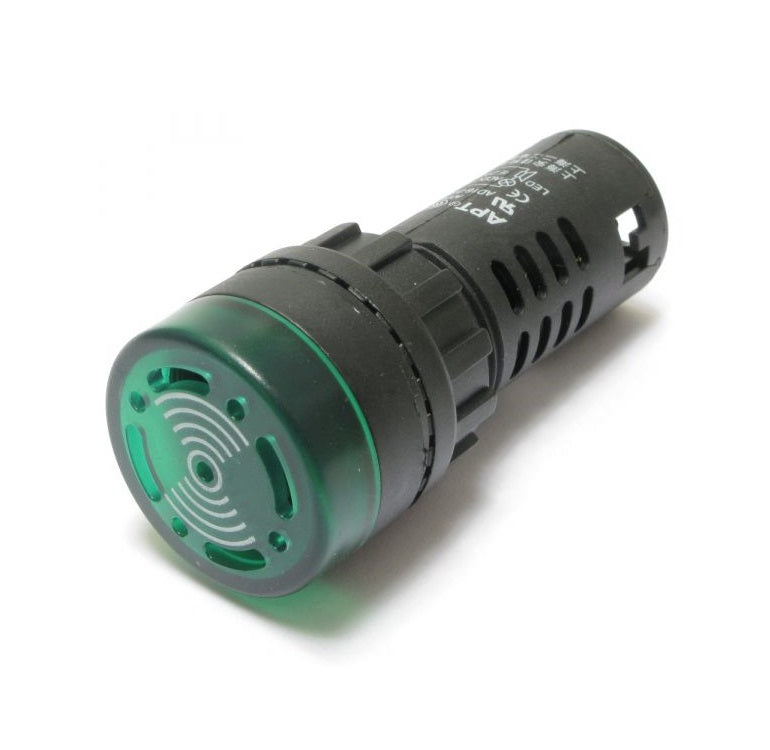

This is a pilot light with a 28mm diameter and 64mm length, featuring an alarm signal (buzzer). The light model is AD16-22SM and can be powered with 12V AC/DC. That's right... it works with direct or alternating current. The mounting hole diameter is the standard 22mm, a measurement commonly used in automation panels.

Specifications:

- Maximum power supported: 2.5KW AC, 1min

- Insulation resistance: greater than 2Mohm

- Allows voltage fluctuations: 12V with a 5% tolerance

- Brightness: Greater than or equal to 75mcd

- Maximum brightness: Greater than or equal to 150mcd

- Light operation: Flashing

- Buzzer operation: Intermittent beep

Environmental parameters:

- Operating temperature: -25ºC ~ + 55ºC

- Relative Humidity: 98%

Package includes:

1 x AD16-22SM [GREEN] LED Pilot Light with Alarm Buzzer Element 12V AC/DC
