FY6900-30M FeelTech 30MHz Digital 2-Channel Function Signal Generator - (AD47995)

Description:

This series of DDS function signal generators is a multifunctional signal generator with high precision and high performance. It adopts large-scale FPGA integrated circuits, high-speed MCU microprocessors, and a high-precision oscillator as the basis for its internal circuitry, which makes the signals more stable. The SMT process can greatly improve the instrument's anti-interference capabilities and service life. It has fully independent dual-channel DDS signal and TTL level output, and can generate sine / triangle / square / sawtooth / pulse wave, white noise, etc. This instrument offers great advantages for signal generation, scan waveform, measurement parameters, etc. It is an ideal test or measurement instrument for electronic engineers, electronic laboratories, teachers, and researchers.

Features:

- Using DDS direct digital synthesis technology to generate accurate, stable, and low-distortion output signals.

- CH1 and CH2 are two completely symmetrical channels, each channel can independently set parameters.

- Supports user-defined waveforms, each arbitrary waveform memory depth 2048 * 12 bits, sampling rate 250MSa / s.

- With burst pulse train output function, manual trigger, internal CH2 trigger, and external trigger allow three trigger modes that allow the unit to output any 1 ~ 1048575 arbitrary pulse train.

- Measurement functions: 100 MHz frequency counter and counter function.

- The signal output amplitude range is 10mVpp-20Vpp, the DC offset adjustment range is -10V to 10V, the resolution is 0.1V.

- Digital signal output function, CMOS output range 0 ~ 10V.

- Up to 12-bit wide waveform generator, the output waveform is more delicate, the waveform distortion is low.

- With full CNC functions, displays and adjusts the parameters of the current output signal, such as amplitude, offset, frequency, duty cycle, and phase difference of two signals.

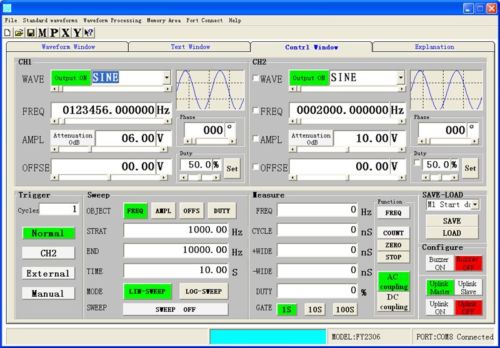

- After connecting to a computer, the user can control the functions and parameters of the signal generator, and can edit and download arbitrary waveforms.

- High frequency accuracy and resolution: frequency accuracy up to 10 ^ (- 6) magnitude, full range frequency resolution is 10mHz.

- Tracking function: built-in frequency, amplitude, offset, duty cycle, waveform, and other parameters follow function, easy to use.

- Scan functions: linear frequency sweep and logarithmic sweep function, start and end points of the sweep can be set freely.

- Storage features: can store 20 groups of user-defined parameters.

- Operation: key operation, LCD1602 English display, digital direct adjustment parameters or continuous adjustment knob.

- Input overvoltage protection: the extended power input range is AC85V to AC260V wide voltage.

- Output short-circuit protection: all output signals can operate for over 60s in load short-circuit situations.

Package includes:

- 1 x FY6900 Function Generator

- 1 x USB Cable

- 1 x Power Plug (Power Cable)

- 2 x BNC Alligator Clip Cable

- 1 x BNC to BNC Cable
