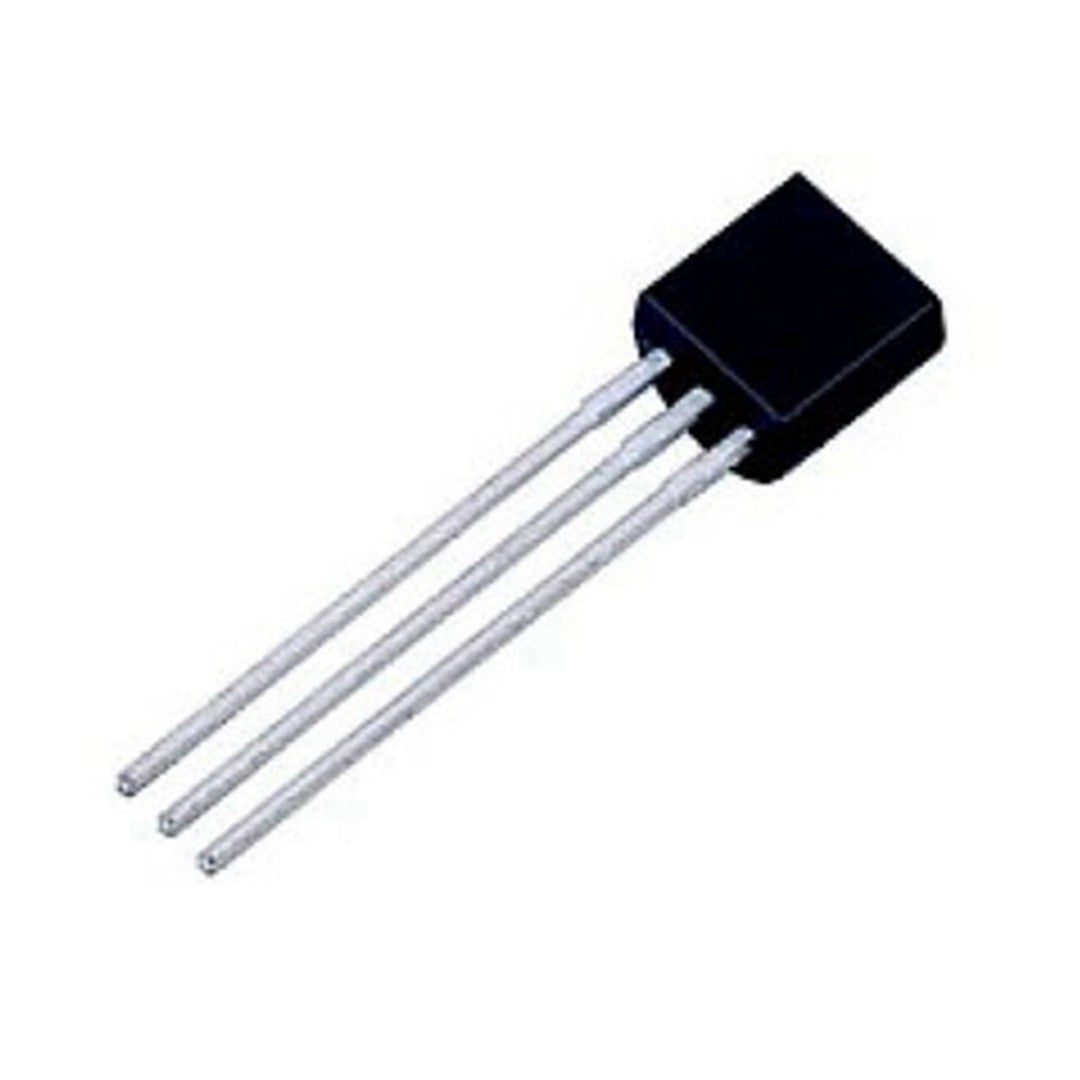

E1F3P NPN Transistor 60V @ 2A - (AD47428)

Description:

The CE1F3P is a high hFE (gain) transistor in a single chip with an integrated resistor, and with a flywheel diode from collector to emitter and a Zener diode from collector to base as protection elements. This transistor is ideal for actuator drives in OA equipment and electrical equipment.

Features:

• Collector-Emitter Voltage: 60 ± 10 V
• Collector-Base Voltage: 60 ± 10 V
• Emitter-Base Voltage: 15 V
• Continuous Collector Current: 2 A
• Operating and Storage Junction Temperature Range: -55 to +150 °C
• Total Device Dissipation: 1.0W
• Thermal Resistance: 150 °C
