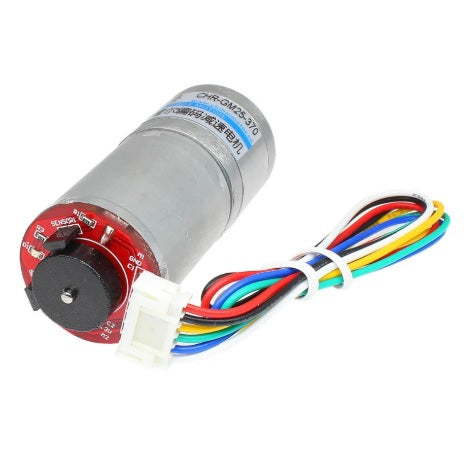

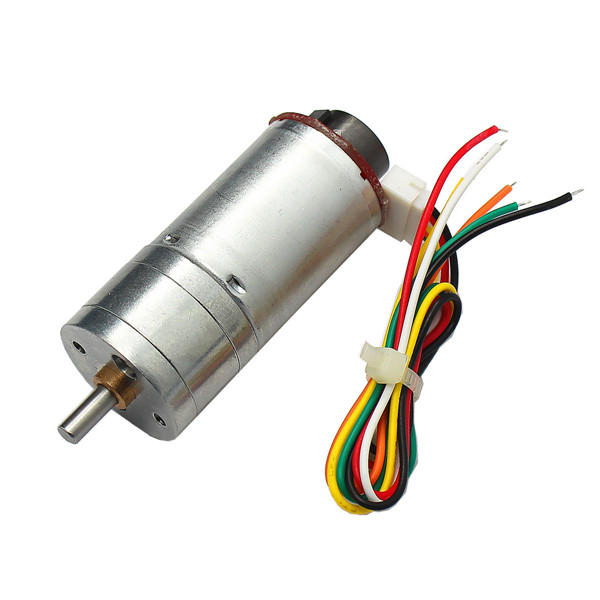

GM25-370 82RPM Powerful Torque Gear Motor 12VDC - (AD47129)

Description:

These DC motors with metal gearboxes are incredibly strong, helping you control wheels, gears, or anything else you need to rotate. These small but powerful motors have a gear ratio of 78:1 and operate at 12VDC. They can develop a torque of 1.1Kg-cm and a maximum speed of 82RPM; additionally, their shaft has a standard diameter of 4mm.

Features:

- Voltage: 3 - 12Vdc

- Gear Ratio: 78:1

- Torque: 1.1 Kg-cm (@ 12V)

- Speed: 82 RPM (@ 12V)

- No-load current: 160 mA (@ 12V)

- Starting current: 1.06 A (max.)

- Insulation resistance: 1.0 Mohm

- Reversible DC Voltage

- Shaft Dimensions: 4mm Diameter x 10mm Length

- Gearbox Dimensions: 25mm Diameter x 23mm Length

- Motor Model: GM-370CA-15360

Datasheet
