micro:bit v2 Board [DEV-17287] - (AD46843)

micro:bit v2 Board [DEV-17287] - (AD46843)

$37.95 USD
$37.95 USD
Sale Sold out

Description:

The BBC micro:bit is a pocket-sized computer that lets you get creative with digital technology. Each order contains only the micro:bit board. You can code, customize, and control your micro:bit from anywhere! You can use your micro:bit for all sorts of unique creations, from robots to musical instruments and more. Half the size of a credit card, you'll be amazed at how much hardware is packed into each board, including 25 red LED lights that can flash messages. There are two programmable buttons that can be used to control games or pause and skip songs in a playlist. The micro:bit can even detect motion and tell you which direction you're heading. You can also use Bluetooth Low Energy (BLE) to interact with other devices and the internet.

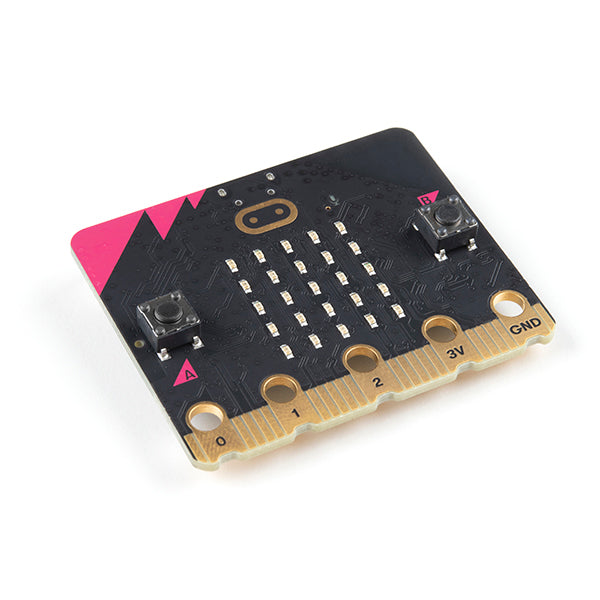

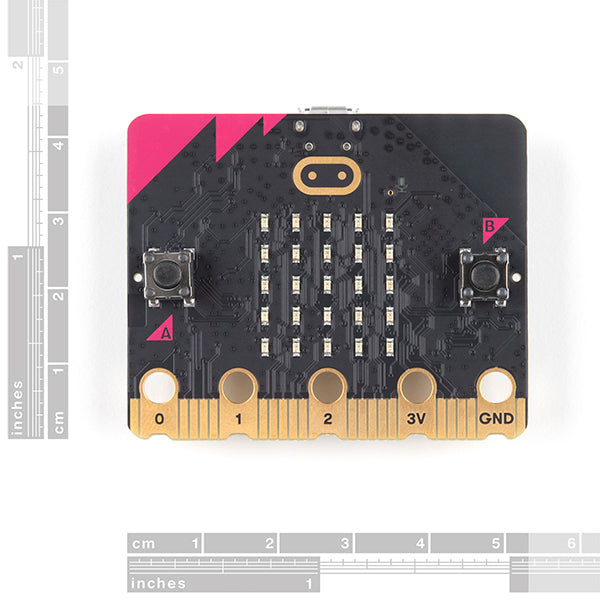

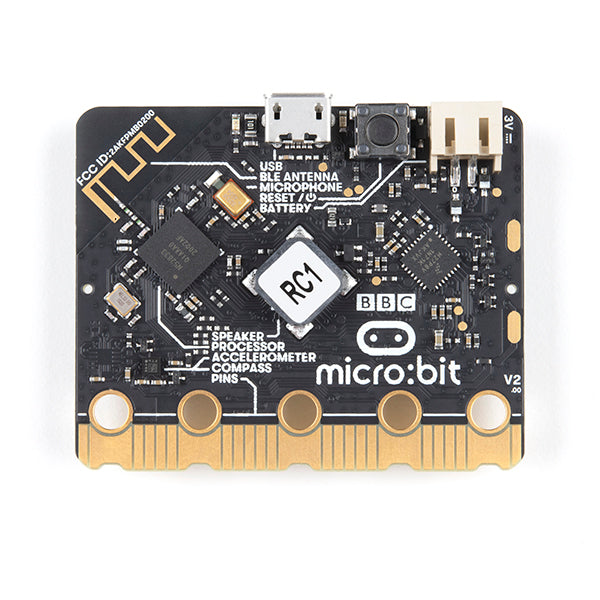

Taking a closer look at the front of the board, we can see the 5x5 LED array that you can use as a light sensor, a tiny display for drawing, displaying words, numbers, and other information, and the two programmable buttons! On the back of the board, you'll find the brains of the micro:bit, a 16MHz, 32-bit ARM Cortex-M0 microcontroller with 256KB Flash, 16KB RAM, and a built-in temperature sensor. Additionally, the back of the micro:bit is populated by an accelerometer, compass, and Bluetooth smart antenna, as well as a microUSB and two-pin JST connector for different power options. Finally, on the bottom of the board, you'll find 20 gold-tabbed edge pins and five ring connectors (three for digital/analog I/O, two for power and ground) for connecting external components. The tabs with larger holes can easily be used with alligator clips to quickly prototype added components.

Micro:bit has even supplied an intuitive mobile app that allows you to send your code to your micro:bit via Bluetooth (without using a USB cable) and more. With this app, you'll be able to interact with your micro:bit on a higher level of accessibility.

Important: The micro:bit v2 does not include cables or power supplies. This is just the board. We recommend picking up a micro:bit AAA battery holder or a micro USB cable as well to power your board.

Features:

  • 64MHz Arm Cortex-M4 processor with FPU
  • 512KB Flash memory
  • 128KB RAM
  • 5x5 red LED array
  • Two programmable buttons, one touch logo
  • MEMS microphone and LED indicator
  • Built-in light, compass, accelerometer, temperature sensors, and speaker
  • 2.4GHz Micro:bit radio/BLE 5.0 smart antenna
  • 25-pin edge connector
  • 4 dedicated GPIO pins, PWM, I2C, SPI, and external power
  • Three digital/analog input/output rings
  • Two power rings: 3V and GND
  • Dedicated I2C bus for peripherals
  • MicroUSB connector (5V)
  • JST-PH (not JST-XH) battery connector (3V)
  • Power/reset button with status LED
  • 200mA available for accessories
  • Programmable with C++, MakeCode, Python, and Scratch
