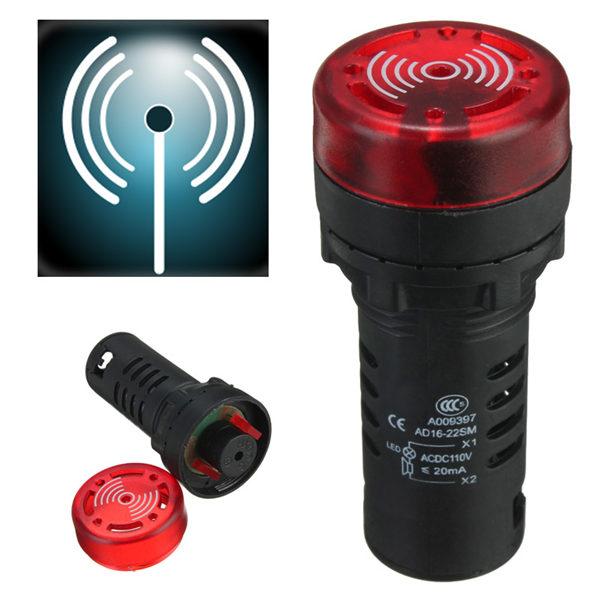

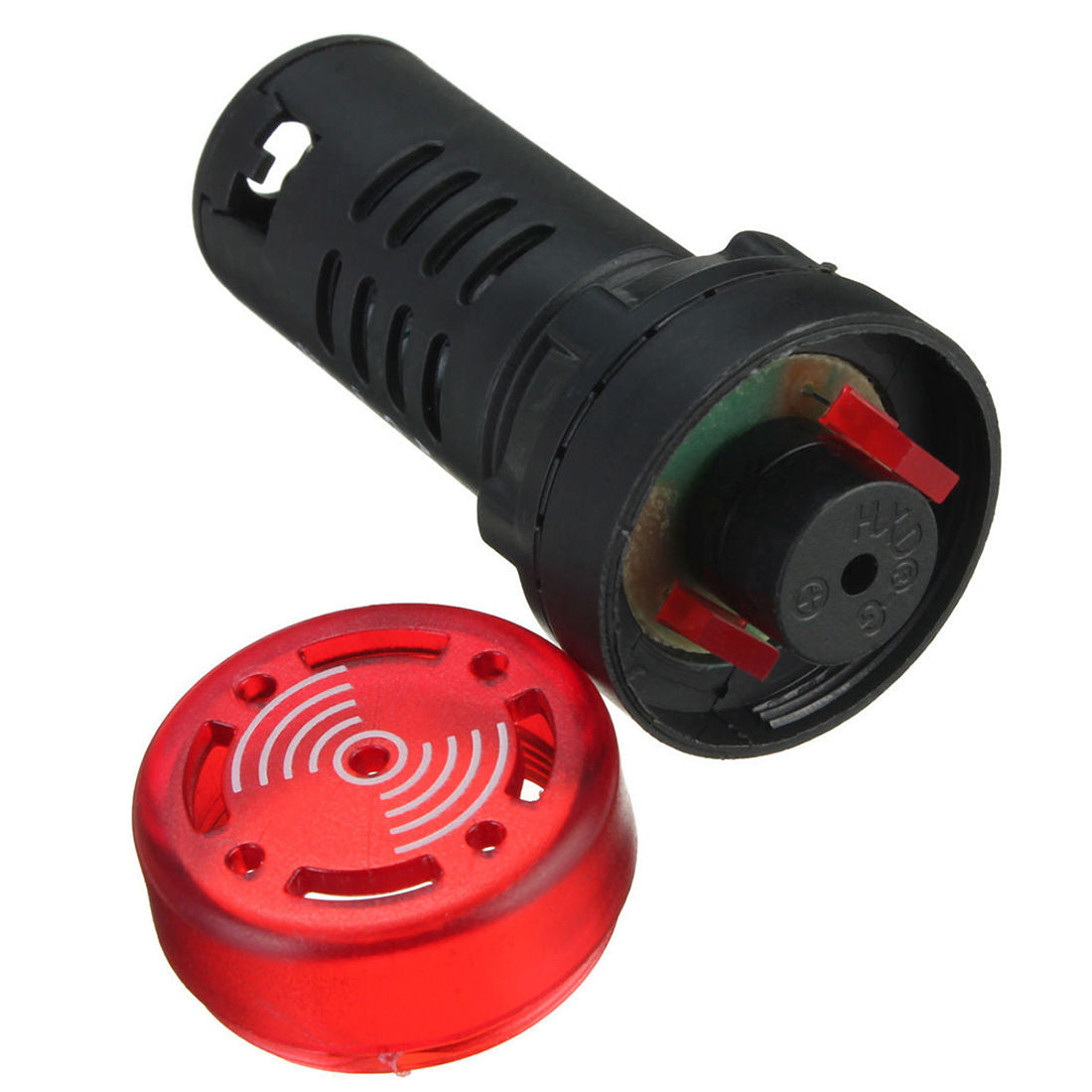

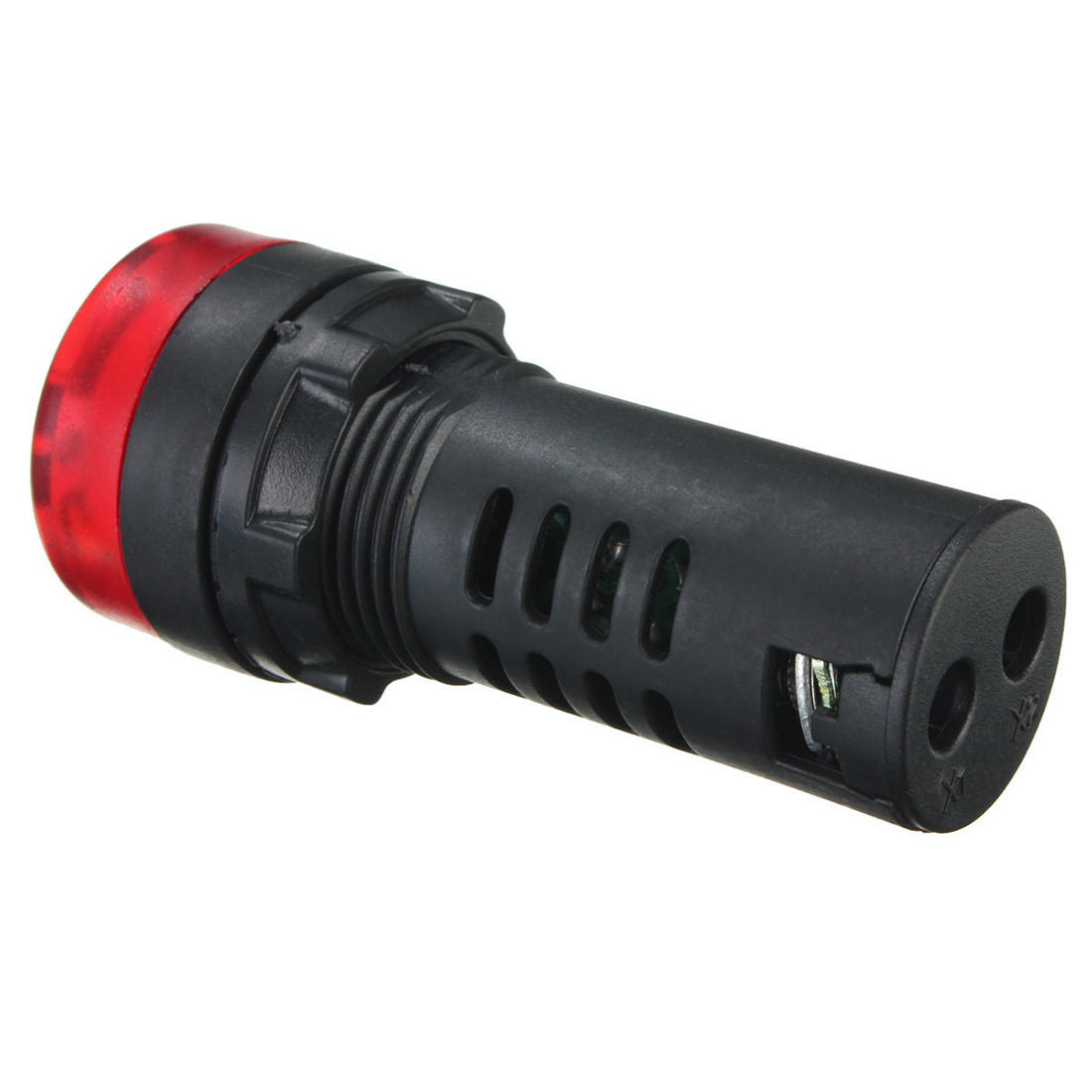

AD16-22SM Red LED Pilot with Flash Light and Buzzer 110V - (AD46734)

Description:

This is a pilot light with a diameter of 28mm and a length of 64mm, featuring an alarm signal (buzzer). The light model is AD16-22SM and can be powered with 110V AC/DC, meaning it works with both direct and alternating current. The mounting hole diameter is the standard 22mm, a size commonly used in automation panels.

Specifications:

- Maximum power supported: 2.5KW AC, 1min

- Insulation resistance: greater than 2Mohm

- Allows voltage fluctuations: 110V with a tolerance of 5%

- Brightness: Greater than or equal to 75mcd

- Maximum brightness: Greater than or equal to 150mcd

- Light operation: Intermittent

- Buzzer operation: Intermittent beep

Environmental parameters:

- Operating temperature: -25ºC ~ + 55ºC

- Relative Humidity: 98%

Package includes:

1 x AD16-22SM [RED] LED Pilot Light with Alarm Buzzer Element 110V AC/DC
