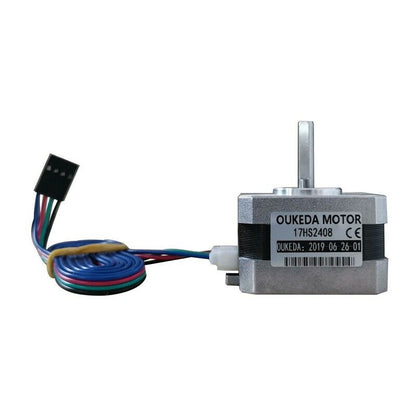

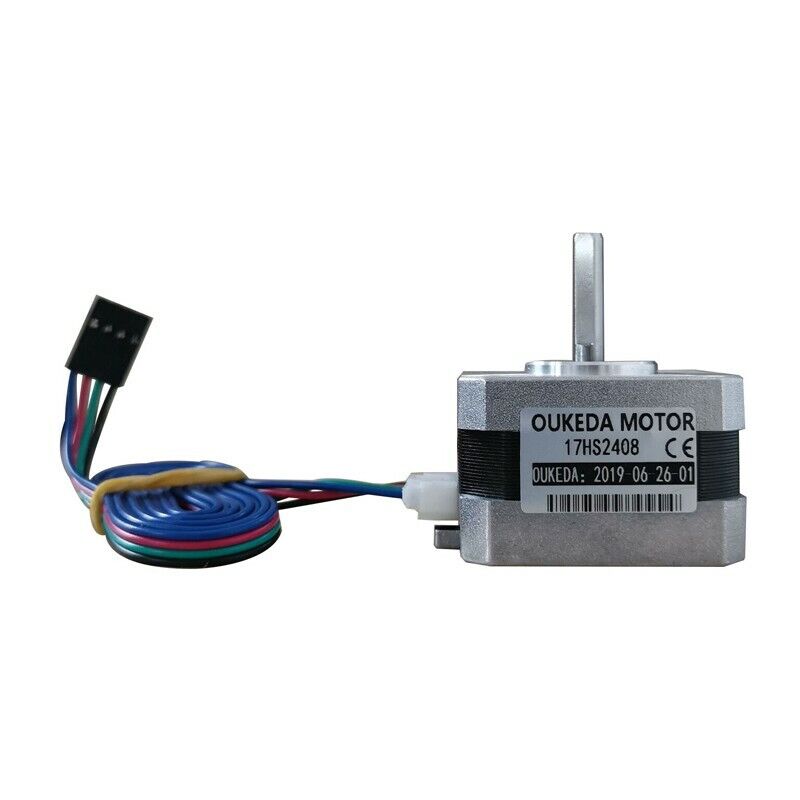

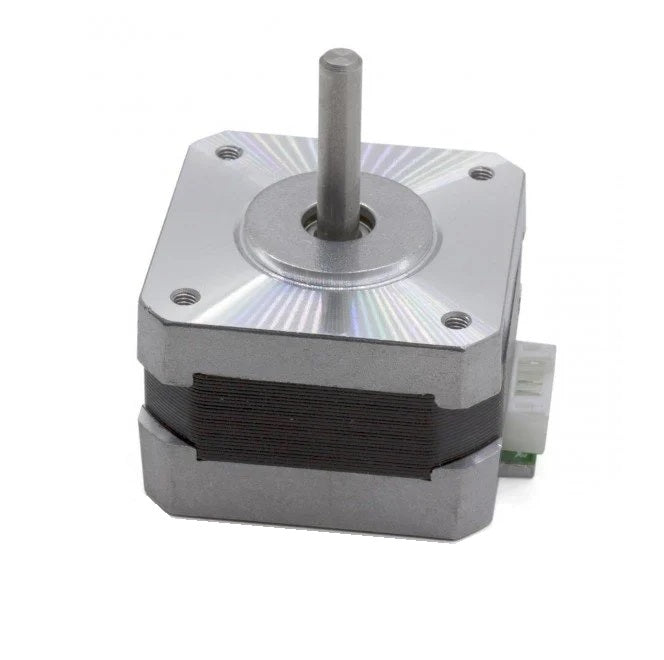

17HS2408 Nema 17 Stepper Motor with Cable - (AD46020)

Description:

This is a generic 2-phase Nema17 hybrid stepper motor. It has a step angle of 1.8° and can complete a full circle in 200 steps. This motor has 2 phases and it is recommended to supply 0.6 amps per phase. The motor's dimensions are 42 by 28 mm with a 5mm shaft diameter. Commonly used for Ender 3, Ender 3 PRO, and Ender CR-10 3D printers.

Specifications:

- Step Angle: 1.8°

- Voltage: 12V

- Motor Height: 28mm

- Motor Width: 42mm

- Current per phase: 0.6Amps

- Resistance per phase: 8Ω

- Inductance per phase: 10mH

- Axial Length: 24mm

- Axial Width: 5mm

Datasheet
