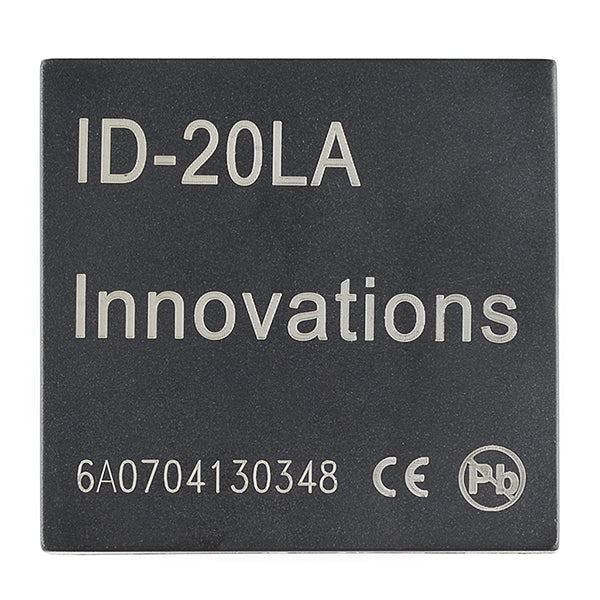

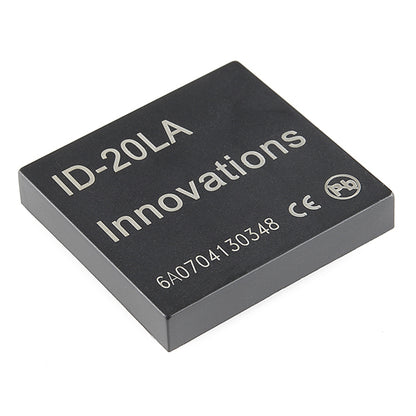

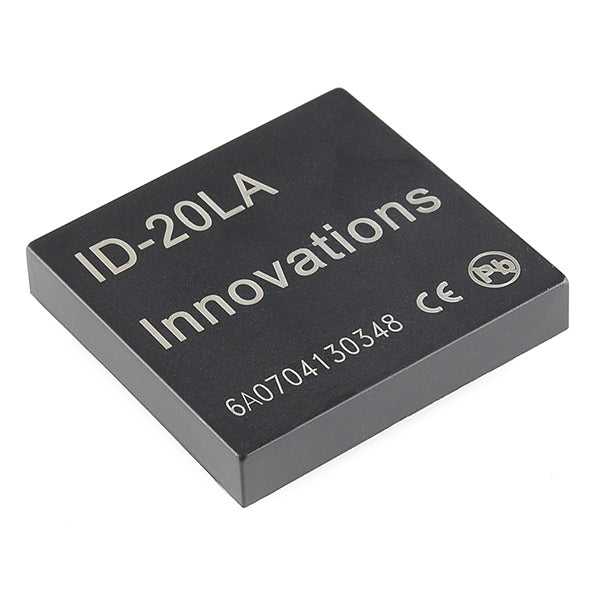

RFID Reader ID-20LA (125 kHz) [SEN-11828] - (AD4575)

Description:

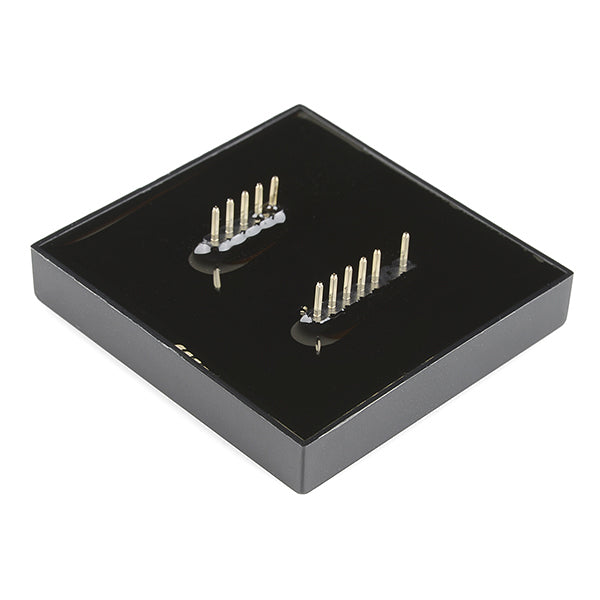

RFID (Radio Frequency Identification) is the contactless, wireless use of radio frequency electromagnetic fields to identify and track tags attached to objects. This is the ID-20LA, a very easy-to-use RFID reader module from ID Innovations. With an integrated antenna, the only limitation is the 2 mm pin spacing. Power up the module, hold a 125 kHz card, and you'll get a serial output with the card's unique ID.

Note: The new ID-20LA is essentially the same as the old ID-20, but has a lower input voltage.

Characteristics:

• 2.8 to 5 V power supply
• Reading frequency of 125 kHz
• Compatible with EM4001 64-bit RFID tags
• TTL and RS232 output of 9600 bps
• Magnetic stripe emulation output
• Reading range of 180 mm

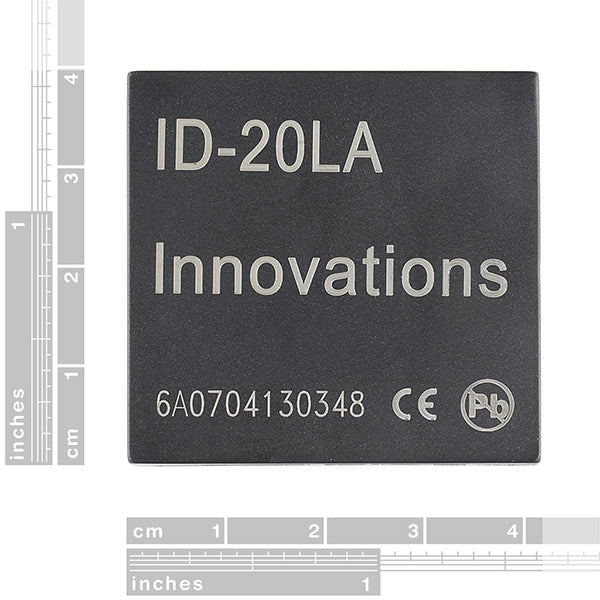

• Dimensions: 38 x 40 x 7 mm
