SparkFun TeensyView [LCD-14048] - (AD45534)

Description:

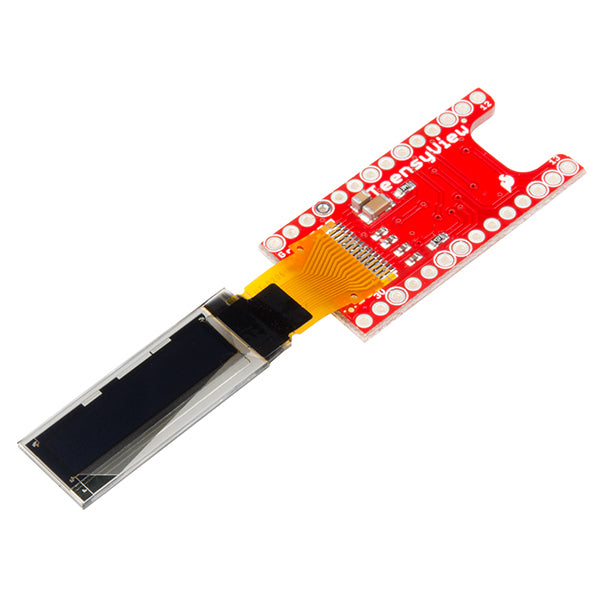

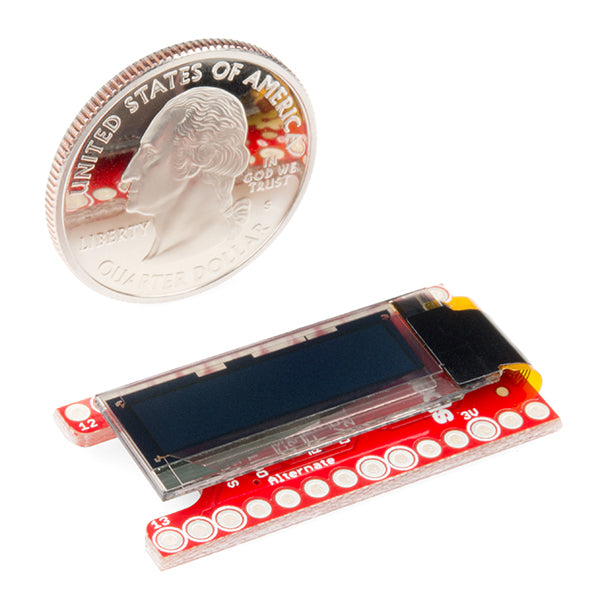

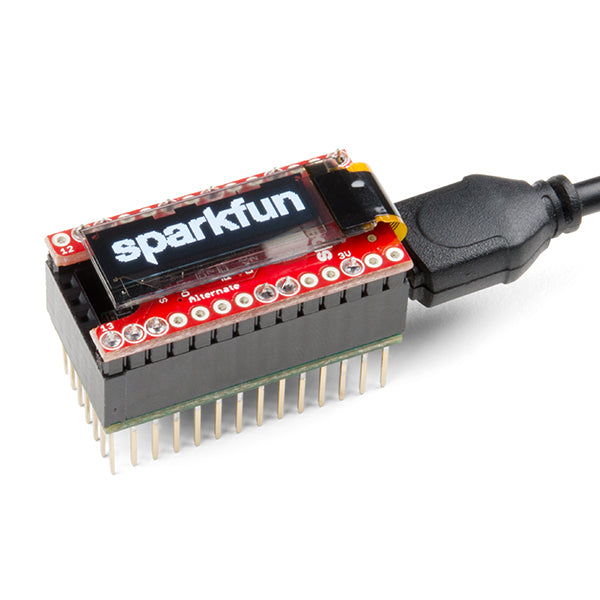

The SparkFun TeensyView gives you an easy way to add a small, white-on-black OLED display to your Teensy development board. The 128x32 pixel monochromatic display is driven by the popular SSD1306 IC and is great for displaying debugging information and visualizing data without needing a serial terminal. The board matches the Teensy 3 footprint perfectly and was designed from the ground up for maximum flexibility, seamlessly integrating into a low profile module for the Teensy.

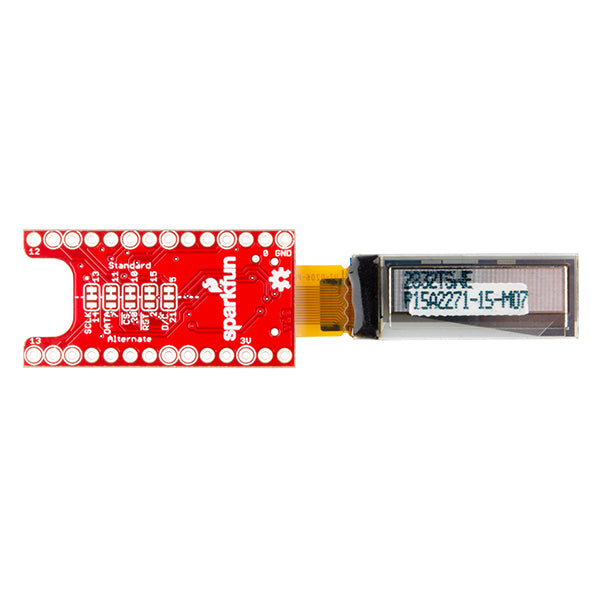

The TeensyView includes everything you need except for headers. Plus, it has jumpers on one side that allow you to configure how the OLED communicates with the attached Teensy. Being a shield-less board, you can solder in whatever header type best suits your needs. Some useful headers for this product include the Teensy Header Kit, straight headers, long straight headers, and female headers.
