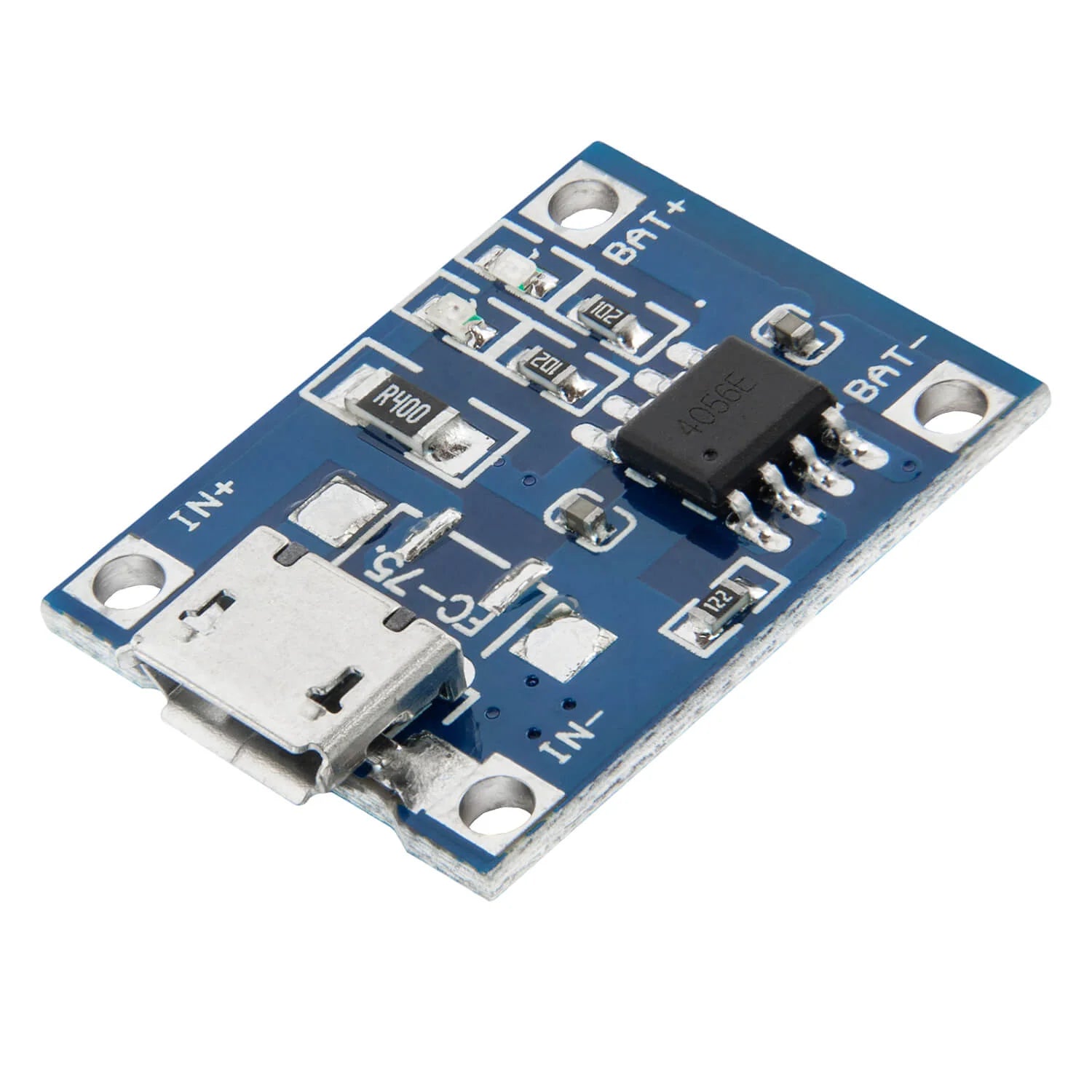

TP4056 1A Charger Module (Micro-USB) - (AD45105)

Description:

If you need to charge LiPo batteries, this simple charger will do exactly that, and it will do it fast! The TP4056 LiPo Charger is stripped of all features and does only one thing well: charge 3.7V LiPo cells at a 500mA rate. It is designed to charge single-cell Li-Ion or Li-Polymer batteries. The board incorporates a charging circuit, status LEDs, and a Type-C connector, while also protecting the battery from overcharging.

Specifications:

- Model: TP4056

- Charging method: linear charging

- Charging current: 1A

- Charging accuracy: 1.5%

- Input voltage: 4.5V-5.5V

- Full charge voltage: 4.2V

- Charging indicator: blue light on, red light on full charge

- Charging input interface: (Micro-B)

- Working temperature: -10 degrees to +85 degrees

- External dimensions: 25 * 19 * 10 mm
