Particle Boron LTE IoT Development Kit [KIT-15072] - (AD43483)

Description:

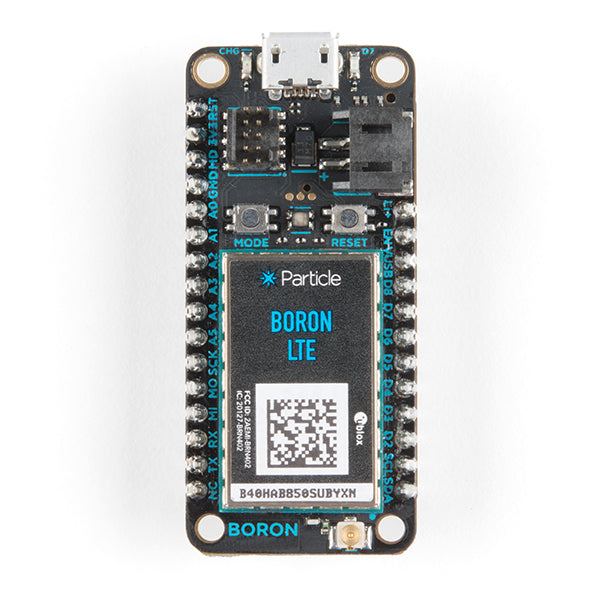

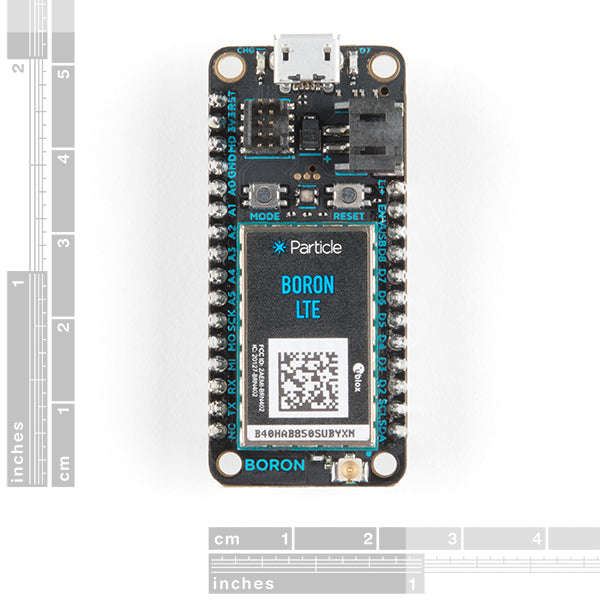

The Particle Boron is an LTE CAT-M1/NB1 enabled development board that provides mesh networking with cellular service. Featuring the Nordic nRF52840 SoC and two SARA cellular modules, you get all the power of an ARM Cortex M4 with OpenThread mesh networking, LTE cellular connectivity, NFC, numerous GPIOs, LiPo charging, and more. The board is designed to act as either a standalone cellular endpoint or as an LTE enabled gateway for a Particle Mesh network.

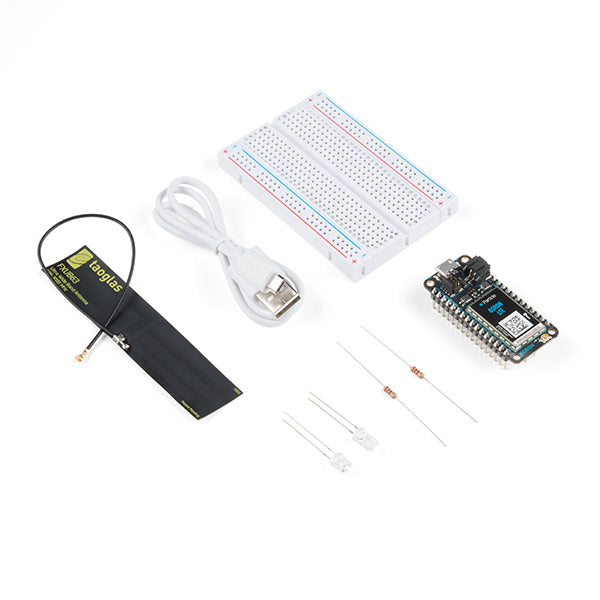

This Particle LTE IoT development kit includes the Boron LTE development board, a breadboard, a flexible cellular antenna, and a USB cable. The initial project includes two 220Ω resistors, one red LED, and one photodiode.

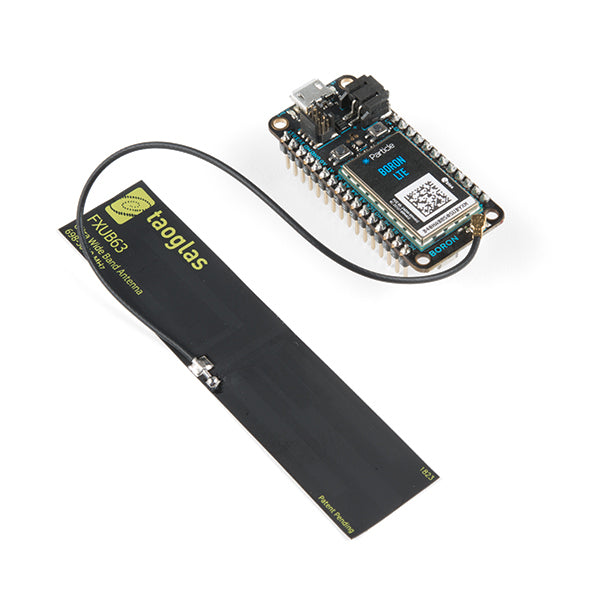

The Boron is also configured in the popular Feather form factor, so it is compatible with Feather Shields. It includes a JST connector for a LiPo battery and allows for USB battery charging. Particle also provides an RGB status LED, JTAG (SWD) connector for debugging, and an integrated PCB antenna for your mesh network. You will need to connect a cellular antenna to the U.FL connector to use the cellular connectivity.

The Boron includes access to the Device Cloud (10 free micro-networks available), as well as three free months of Device Cloud access via a cellular gateway. The Particle Cloud has great features for developing connected projects, including over-the-air firmware updates, an easy-to-use REST API, and firmware development compatible with web and local IDEs.

Includes:

• Boron LTE IoT Development Board
• Breadboard
• Cellular Flexible Antenna
• USB Cable
• 2x 220 Ohm Resistors
• 1x Red LED
• 1x Photodiode

Features:

• u-blox SARA-R410-02B LTE modem
  • LTE CAT M1/NB1 module with global hardware support (MVNO support in U.S. only)
  • 3GPP Release 13 LTE CAT M1
  • CAT M1/NB1 bands: 2, 3, 4, 5, 8, 12, 13, 20 and 28
• Nordic Semiconductor nRF52840 SoC
  • 64 MHz ARM Cortex-M4F 32-bit processor
  • 1MB Flash, 256KB RAM
  • IEEE 802.15.4-2006: 250 Kbps
  • Bluetooth 5: 2 Mbps, 1 Mbps, 500 Kbps 125 Kbps
  • Supports DSP instruction and hardware accelerated Floating Point Unit (FPU) calculations
  • ARM TrustZone CryptoCell-310 security and crypto module
  • Up to +8 dBm TX power (down to -20 dBm in 4 dB steps)
  • NFC-A Tag
• Integrated 4MB additional SPI Flash
• 20 mixed-signal GPIO (6 analog, 8 PWM), UART, I²C, SPI
• Integrated Li-Po battery charging and JST connector
• JTAG (SWD) connector
• RGB status LED
• Reset and Mode buttons
• Integrated PCB antenna for mesh network
• u.FL connectors for external antennas for mesh network, NFC, and cellular
• FCC and PTCRB certified. RoHS compliant

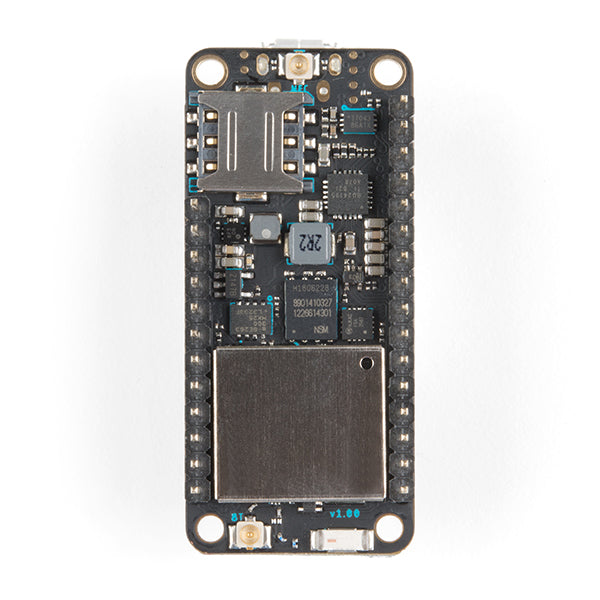

• Integrated MFF2 SIM
• Nano SIM card holder

Documents:

• Schematic
• Datasheet
• Pin Layout
• OpenThread
• Device Cloud
• Github
