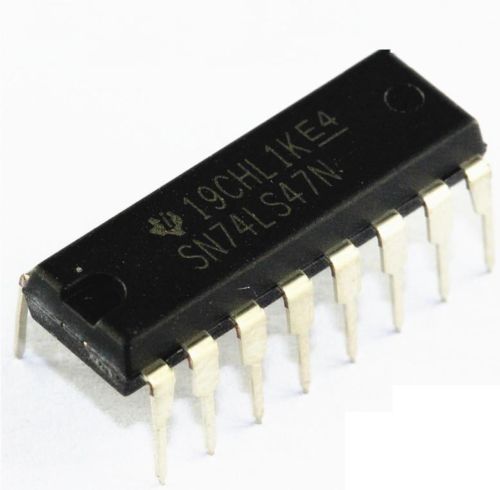

74LS47 BCD to 7-Segment Decoder - (AD427)

Description:

The 74LS47 decoder in a PDIP16 package is a bipolar circuit designed to convert 4-line BCD input signals into the appropriate representation for a 7-segment display with 7 output lines. It operates with a 5V supply voltage, ranging from 4.75V to 5.25V, and offers a propagation delay time of 100ns at 5V. Its operation is guaranteed within a temperature range of 0°C to 70°C, making it ideal for applications requiring precision and speed in decoding digital signals in LS logic systems.

Datasheet
