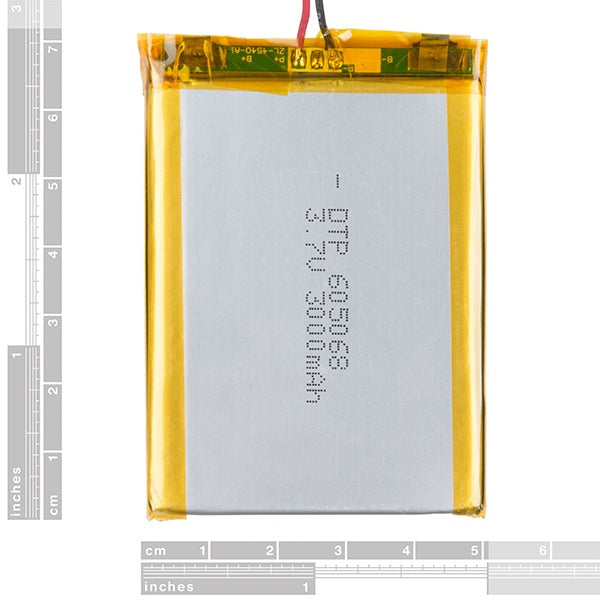

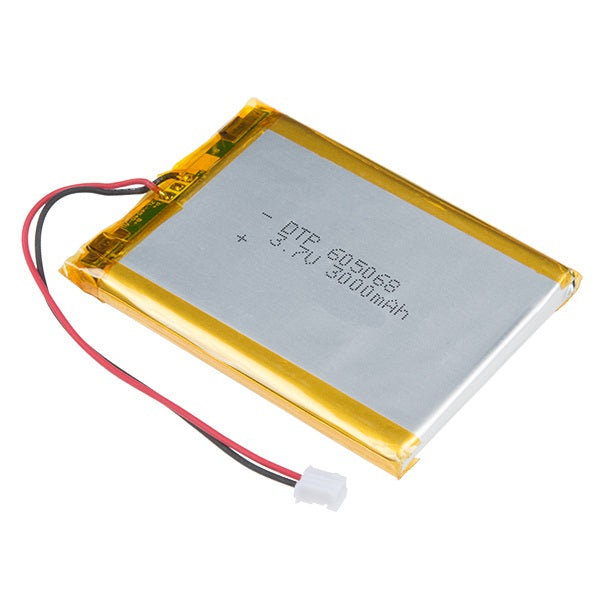

3Ah - Lithium Ion Battery - (AD4196)

Description:

These are very thin, extremely lightweight batteries based on Lithium Ion chemistry. Each cell outputs a nominal 3.7V at 3000mAh! They come terminated with a standard 2-pin JST-PH connector, with 2mm spacing between pins. These batteries require special charging. Do not attempt to charge these with anything other than a specialized Lithium Polymer charger.

The battery includes built-in over-voltage, over-current, and minimum voltage protection. Be careful when using this battery in wearable projects. When using conductive thread, a short in the thread can create sparks and heat. We recommend coin cell batteries for beginners.

Features:

- Excellent long-term self-discharge rates (<8% per month)

- Robust power source under extreme conditions (-25 to 60°C)

- Dimensions: 6.4 x 50.3 x 66 mm

- Weight: 36 g

Documents:

• JST connector
• MSDS
