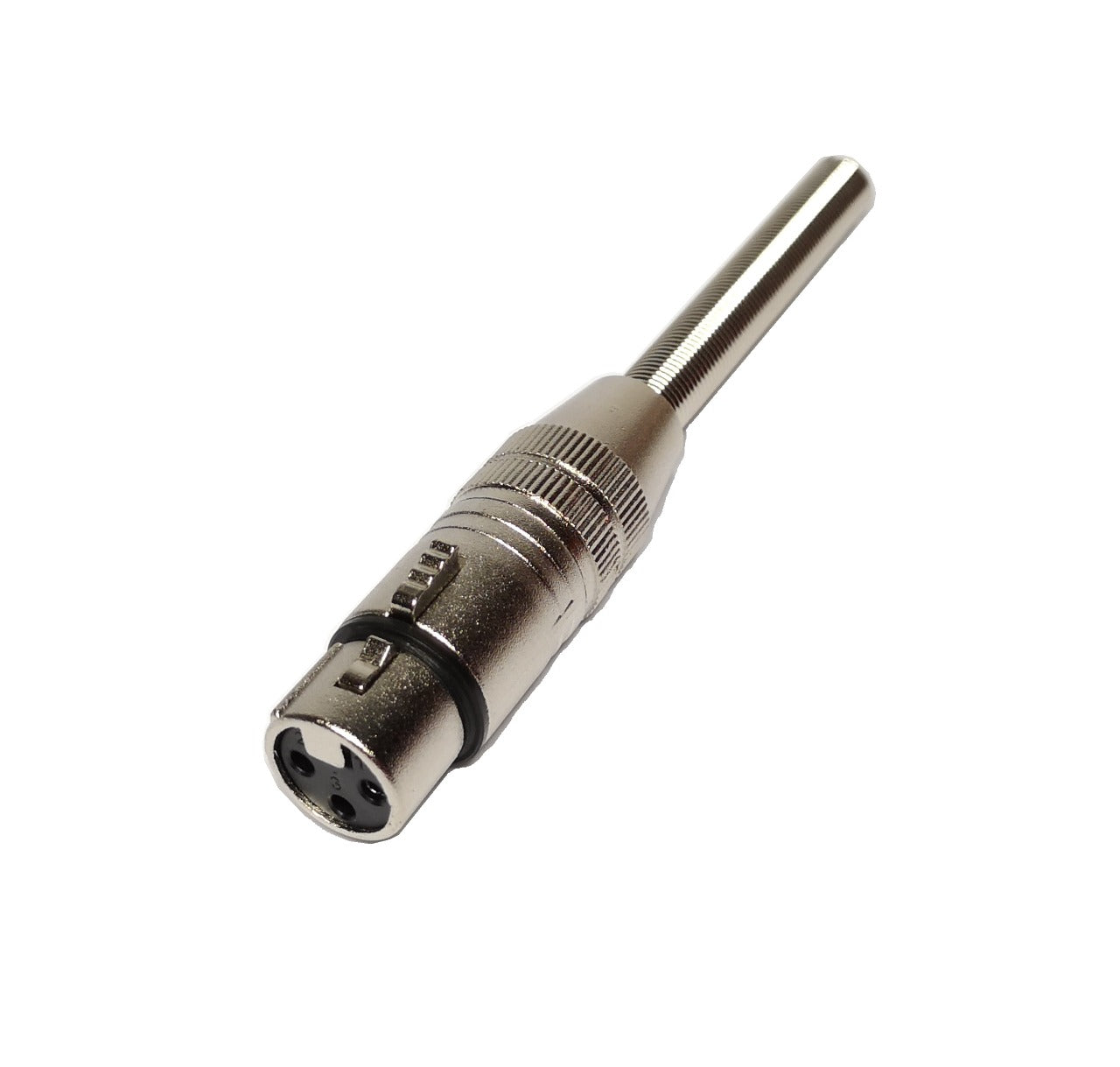

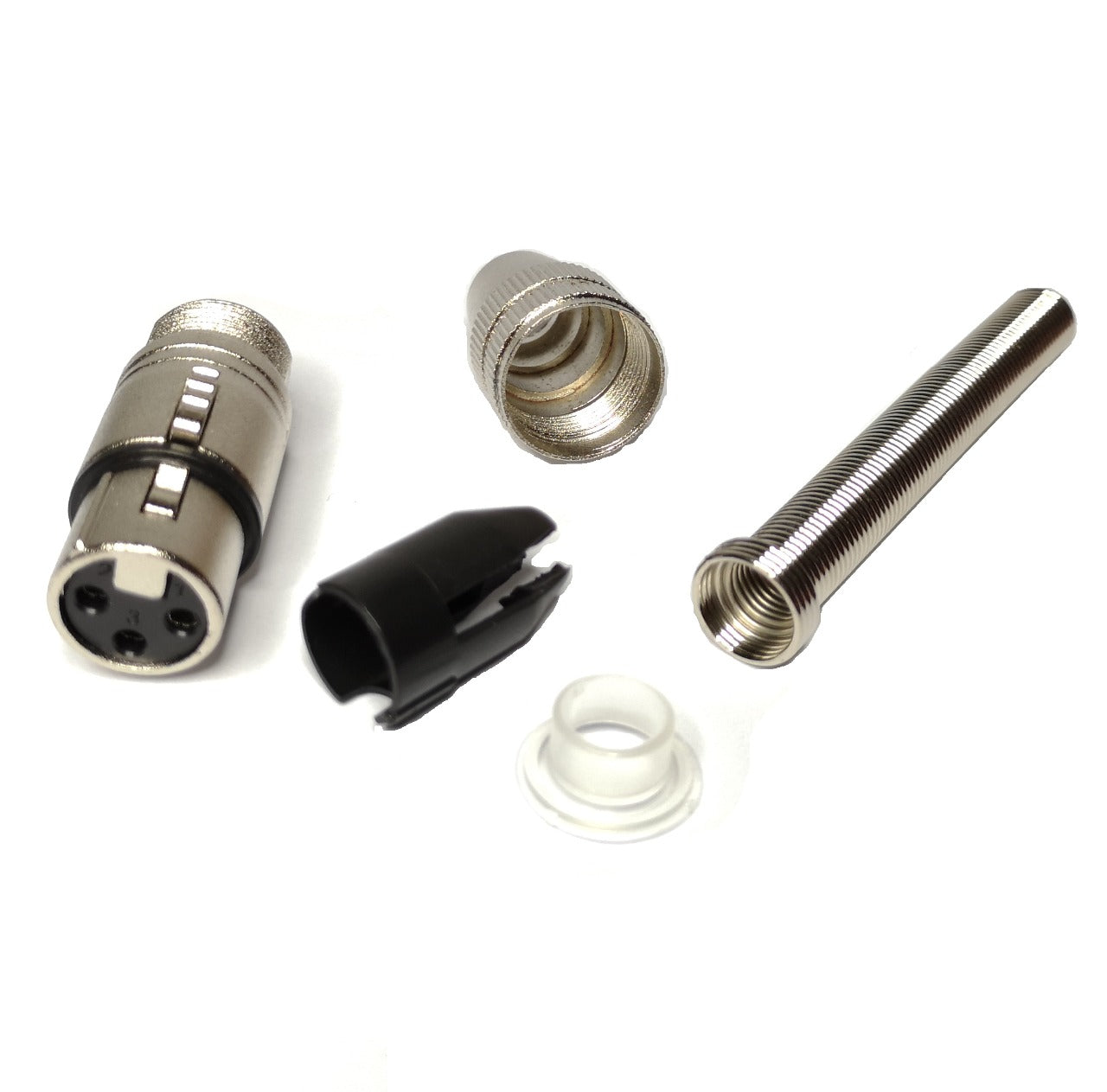

F-63HQ Cannon XLR-3 Female Connector 3 Pin - (AD41315)

Description:

This XLR connector is ideal for connecting to balanced lines. It is the most commonly used balanced connector for professional audio applications, and it is also the standard connector used in theatrical lighting equipment to transmit the DMX digital control signal.

When looking at the pins of the female connector:

- The top left is 2

- The top right is 1

- The bottom is 3

When looking at the pins of the male connector:

- The top left is 1

- The top right is 2

- The bottom is 3
