AD16-22SM Red LED Pilot with Flash Light and Buzzer 12V - (AD41152)

Description:

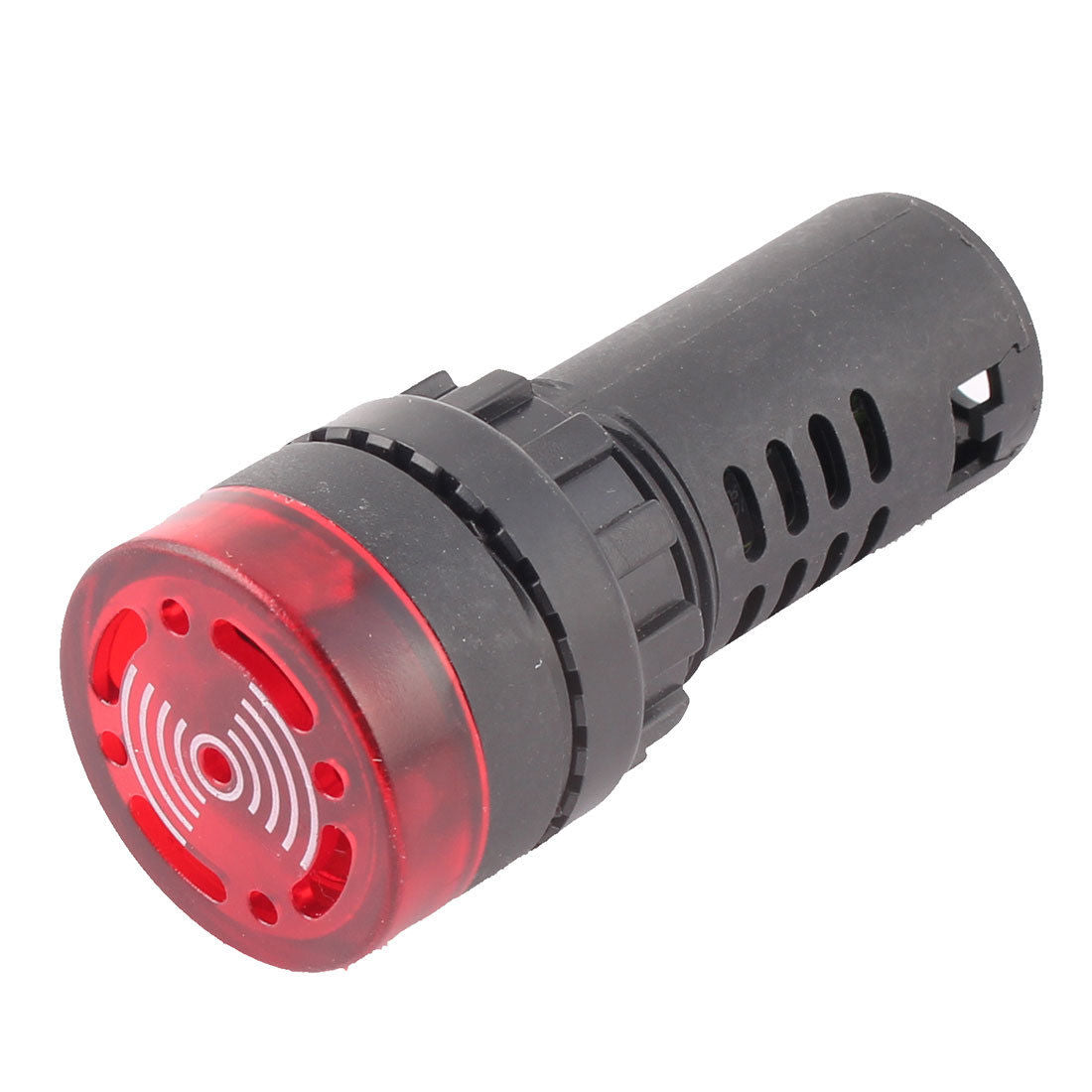

This is a pilot light with a diameter of 28mm and a length of 64mm, featuring an alarm signal (buzzer). The light model is AD16-22SM and can be powered with 12V AC/DC. That's right... it works with direct or alternating current. The mounting hole diameter is the standard 22mm, a common size used in automation panels.

Specifications:

- Maximum power supported: 2.5KW AC, 1min

- Insulation resistance: more than 2Mohm

- Allows voltage fluctuations: 12V with a tolerance of 5%

- Brightness: Greater than or equal to 75mcd

- Maximum brightness: Greater than or equal to 150mcd

- Light operation: Flashing

- Buzzer operation: Intermittent beep

Environmental parameters:

- Operating temperature: -25ºC ~ + 55ºC

- Relative Humidity: 98%

The package includes:

1 x AD16-22SM [RED] LED Pilot Light with Alarm Buzzer Element 12V AC/DC
