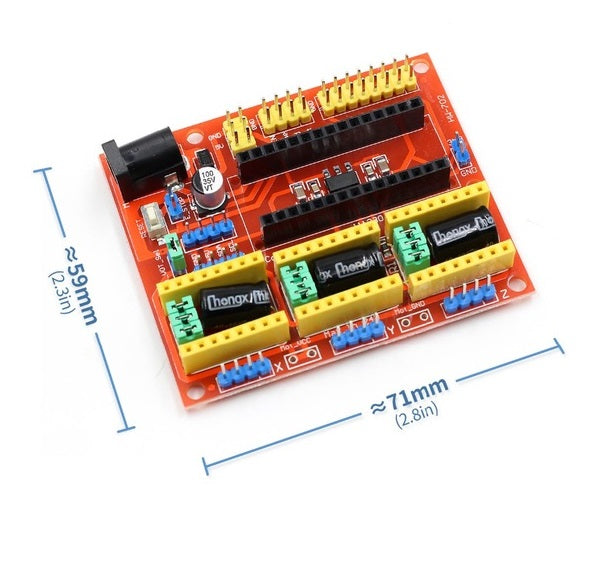

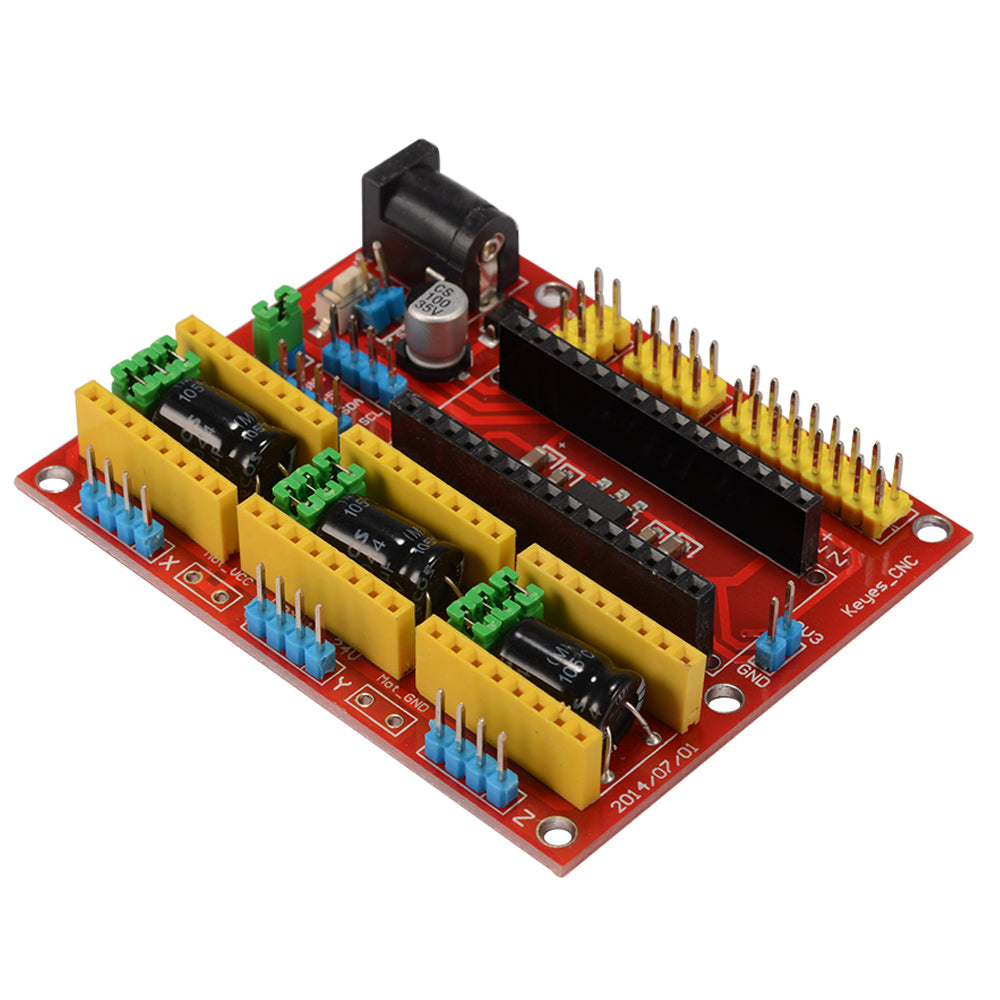

CNC Shield v4 For Arduino Nano - (AD39767)

Description:

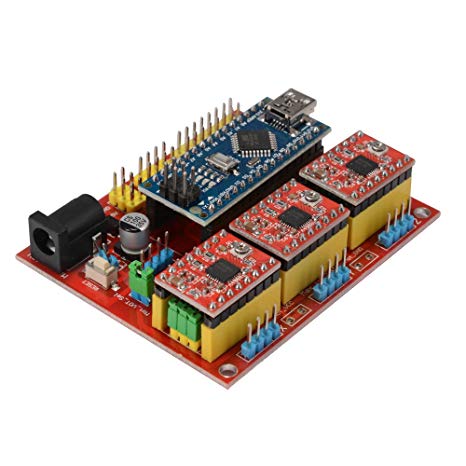

This is the CNC Shield v4 for Arduino Nano, it is a 3-axis stepper motor controller, ideal for creating your own laser engraving machine or three-axis CNC. This board can control two-phase (4-wire) stepper motors up to 2A. It has a digital I/O interface, easy to connect to other modules, such as ENDSTOP, it also has an I2C interface, it can connect to an I2C LCD or other I2C module. The power supply is 7.5-12Vdc, and the control logic is 5Vdc. This board is compatible with GRBL.

Includes:

- 1x CNC Shield V4 Stepper Motor Driver for Arduino (GRBL Compatible)

Note: Does NOT include drivers, Does NOT include Arduino, Does NOT include cables.
