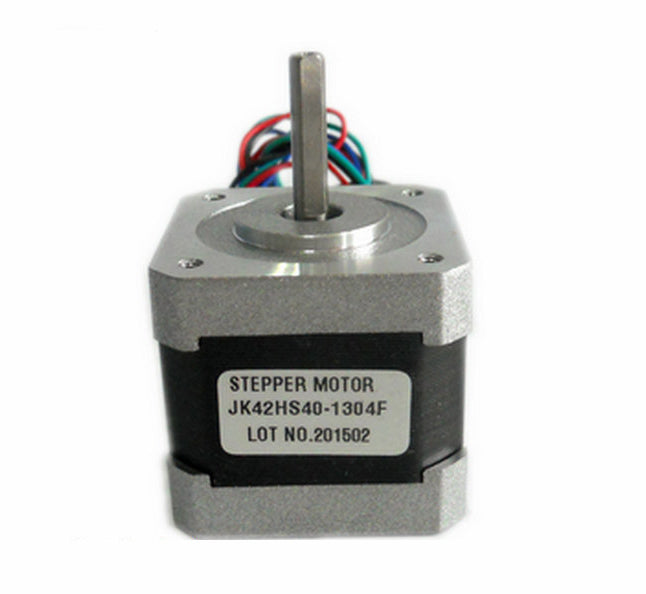

JK42HS40-1304F Nema 17 Stepper Motor with Cable - (AD39752)

Description:

This is a generic Nema17 2-phase hybrid stepper motor. It has a step angle of 1.8° and can complete a full circle in 200 steps. This motor has 2 phases and it is recommended to supply 1.7 amps per phase. The motor dimension is 42 by 40 mm with a 5mm shaft diameter. Commonly used for Ender 3, Ender 3 PRO, and Ender CR-10 3D printers.

Specifications:

- Step angle: 1.8°

- Voltage: 12V

- Motor height: 40mm

- Motor width: 42mm

- Current per phase: 1.2Amps

- Resistance per phase: 3.3Ω

- Inductance per phase: 3.2mH

- Shaft length: 24mm

- Shaft width: 5mm

Datasheet
