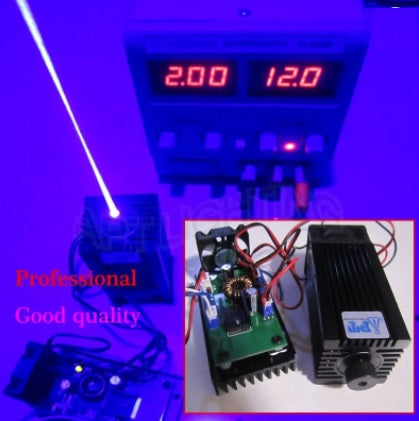

High Power 12V @ 2.5W 450nm Laser Module - (AD39690)

Description:

This is a 2500mW laser module that operates at a wavelength of 450nm (blue). Each laser produces a round dot projection and is equipped with industry-standard connectors built into the module body. This greatly simplifies device modifications, module movement, and module upgrades or replacements.

WARNING: DO NOT LOOK DIRECTLY INTO THE LASER BEAM OR ITS REFLECTION! EXTREMELY DANGEROUS FOR THE EYES!

Specifications:

- Wavelength: 445 - 450nm

- Output Power: 2500mW

- Operating Voltage: 12Vdc

- Working Current: 3.5A

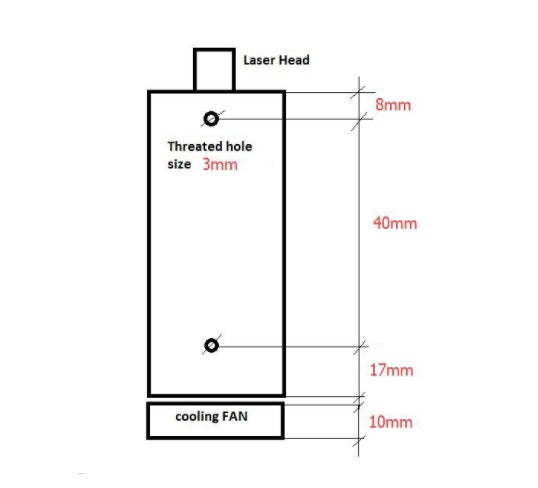

- Laser Dimensions: 65mm*33mm*33mm

- Circuit Size: Length 47.5 mm * Width 31.5mm * Height 16mm.

- Cooling: Aluminum heat sink.

- Modulation Frequency: modifiable (0-20 kHz).

- Working Characteristics: continuous operation.

- Circuit Control: constant current.

- Reverse Polarity Protection: with positive and negative polarity identification.

- Warm-up Time: None.

- Operating Temperature: -10ºC ~ +40ºC

Includes:

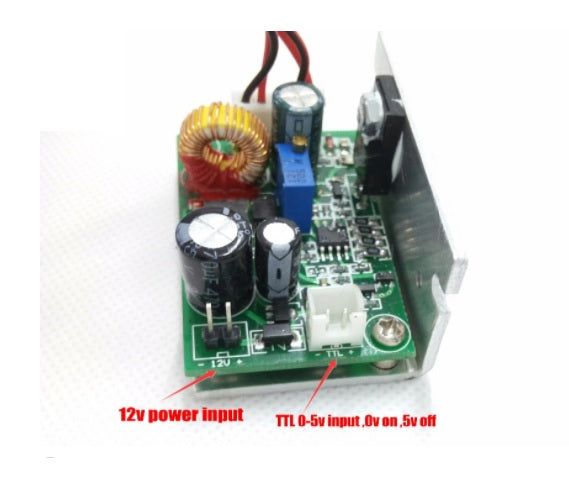

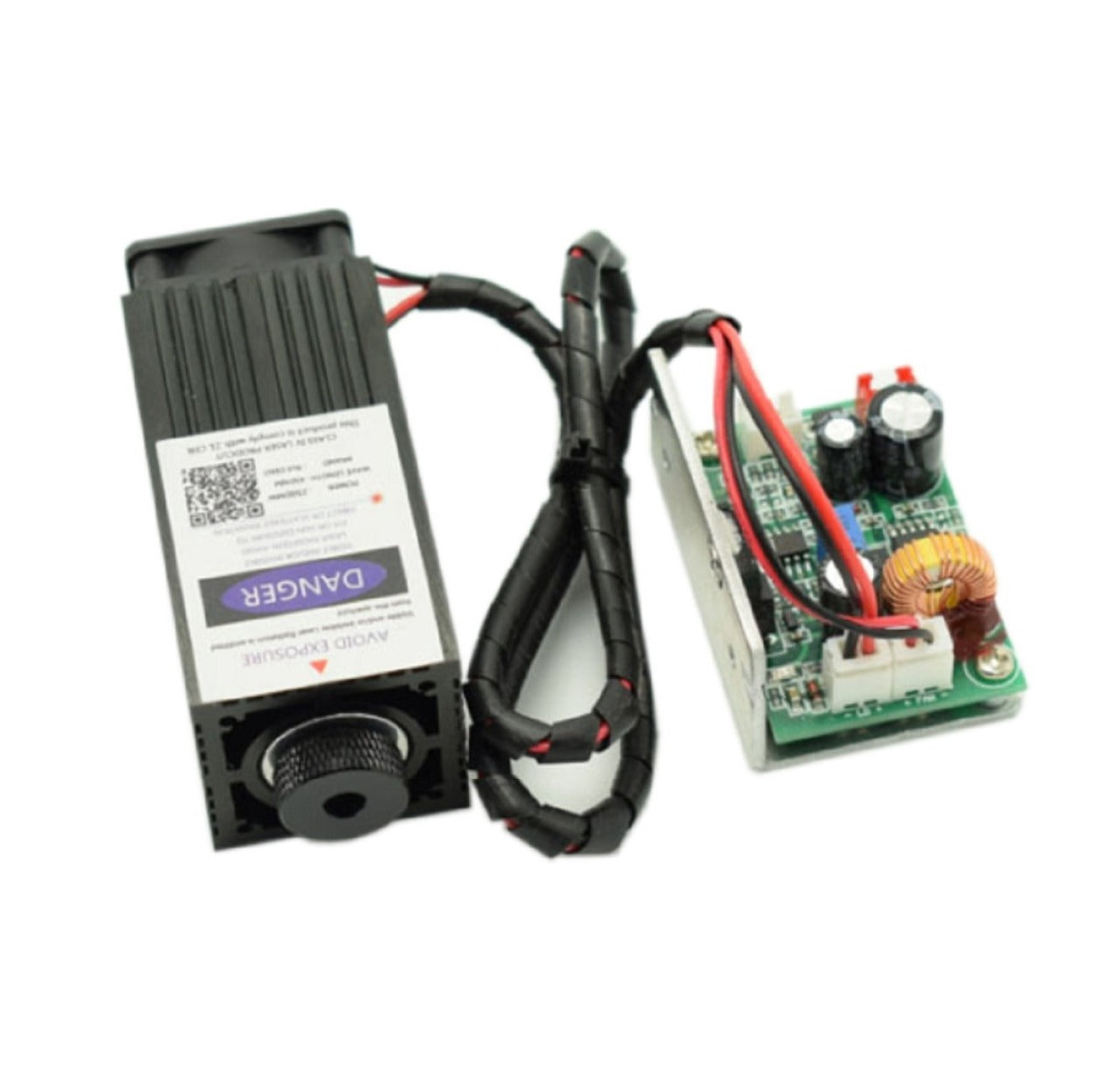

- Laser with aluminum housing and control board
