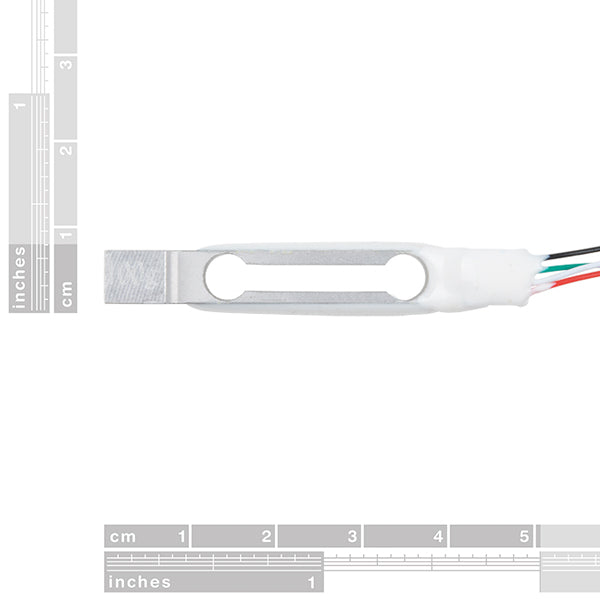

100g Mini Load Cell Straight Bar (TAL221) [SEN-14727] - (AD39155)

Description:

This miniature straight-bar load cell (sometimes called a strain gauge) can convert up to 100 g of pressure (force) into an electrical signal. Each load cell measures the electrical resistance that changes in response to, and proportionally to, the strain (e.g., pressure or force) applied to the bar. With this gauge, you can determine the weight of an object, whether its weight changes over time, or simply need to detect the presence of an object by measuring the strain or load applied to a surface.

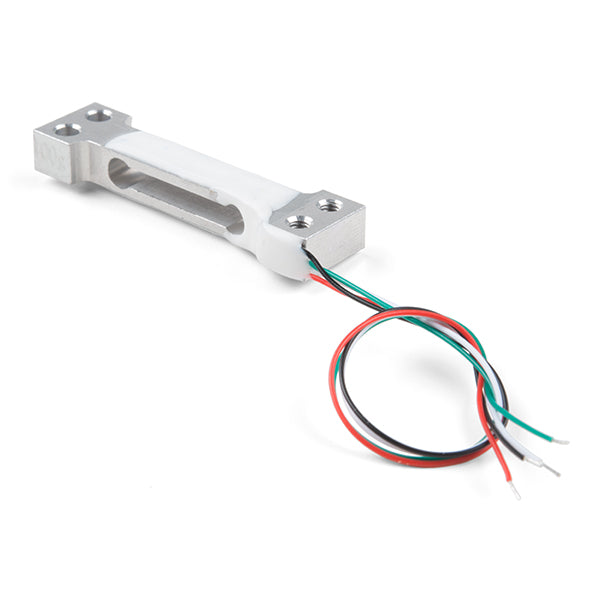

Each straight bar load cell is made of aluminum alloy and has a reading capacity of 100 g. These load cells feature four strain gauges connected in a Wheatstone bridge. The wiring color coding is as follows: red = Exc+, green = Sig+, black = Exc-, and white = Sig-. In addition, these load cells offer an IP65 protection rating and feature four M3 through-holes for mounting.

Characteristics:

Capacity: 100 g
Material: Aluminum alloy
Parallel beam type
IP65 rating
47mm x 12mm x 6mm, 110mm cable

Documents:

• Datasheet
• Load Cell Amplifier Hookup Guide
• Getting Started with Load Cells
