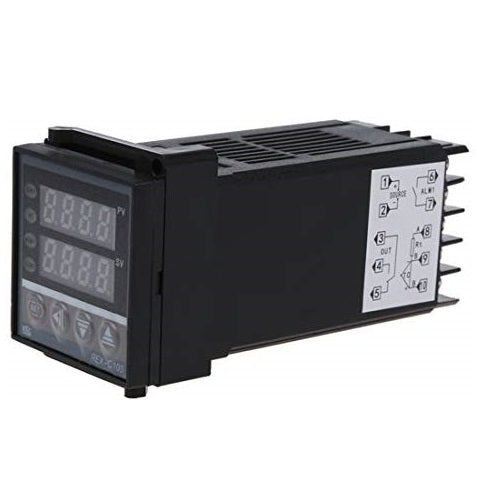

REX-C100 Digital PID Temperature Controller (0 - 400°C)- (AD38955)

Description:

This temperature controller uses PID technology. It is temperature control using PID, an acronym for proportional, integral, derivative. PID control provides a continuous variation of the output within a control loop feedback mechanism to accurately control the process, eliminating oscillation and increasing efficiency. It is designed for use with industrial machines and measuring equipment.

Note: This version DOES NOT include a thermocouple!

Control Action:

• F: PID action with auto-tuning (Reverse action)
• D: PID action with auto-tuning (Direct action)
• W: Heating/cooling PID action with auto-tuning (Water cooling)
• A: Heating/cooling PID action with auto-tuning (Air cooling)

Input Type - Range Code:

• Refer to "9. INPUT RANGE TABLE".

First control output [OUT1] (Heating side):

• M: Relay contact G: Triac drive output
• V: Voltage pulse 8: Current (4 to 20 mA DC)

Second control output [OUT2] (Cooling side):

• No symbol: When control action is F or D. M: Relay contact
• V: Voltage pulse 8: Current (4 to 20 mA DC)

Alarm 1 [ALM1], (7) Alarm 2 [ALM2]:

• N: No alarm H: High process alarm
• A: High deviation alarm J: Low process alarm
• B: Low deviation alarm K: High process alarm with standby function
• C: High/low deviation alarm L: Low process alarm with standby function
• D: Band alarm P: Heater burnout alarm (HBA) [CTL-6]
• E: High deviation alarm with standby function S: Heater burnout alarm (HBA) [CTL-12] R: Control loop burnout alarm (LBA)
• F: Low deviation alarm with standby function
• G: High/low deviation alarm with standby function

Data sheet
