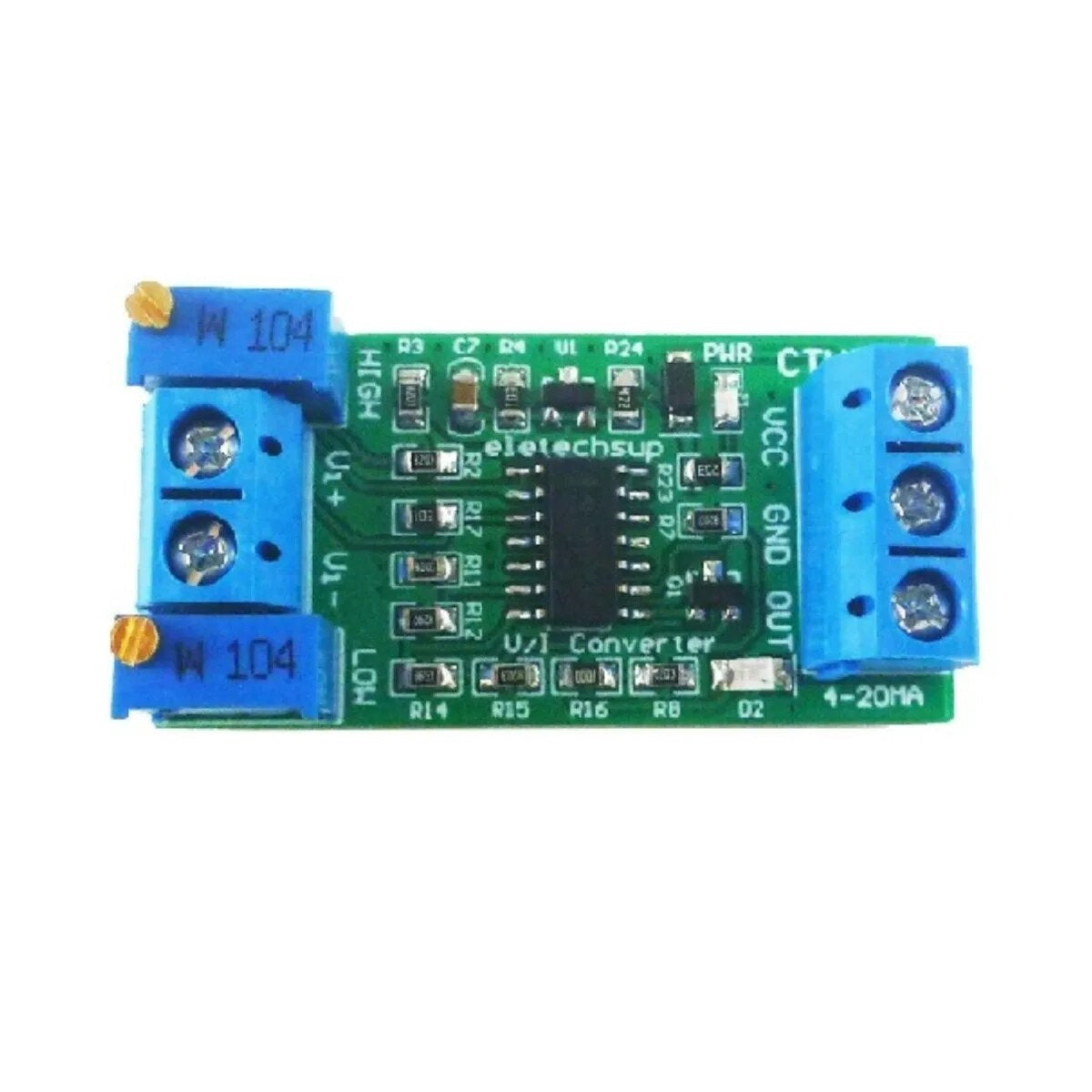

Voltage to Current Converter Module (0-10V to 4-20mA) - (AD38602)

Description:

This module can convert a 0-10V voltage signal into a 4-20mA current signal. In the process of transmitting a signal in a voltage circuit, the signal will weaken due to voltage drop as distance increases. This problem can be avoided by using an electrical current signal.

Features:

- Power supply voltage: DC 12V ~ 24V.

- Input voltage signal: 0 ~ 10V.

- Output current: 4-20mA.

- Module size: 5.5 * 2.5 cm

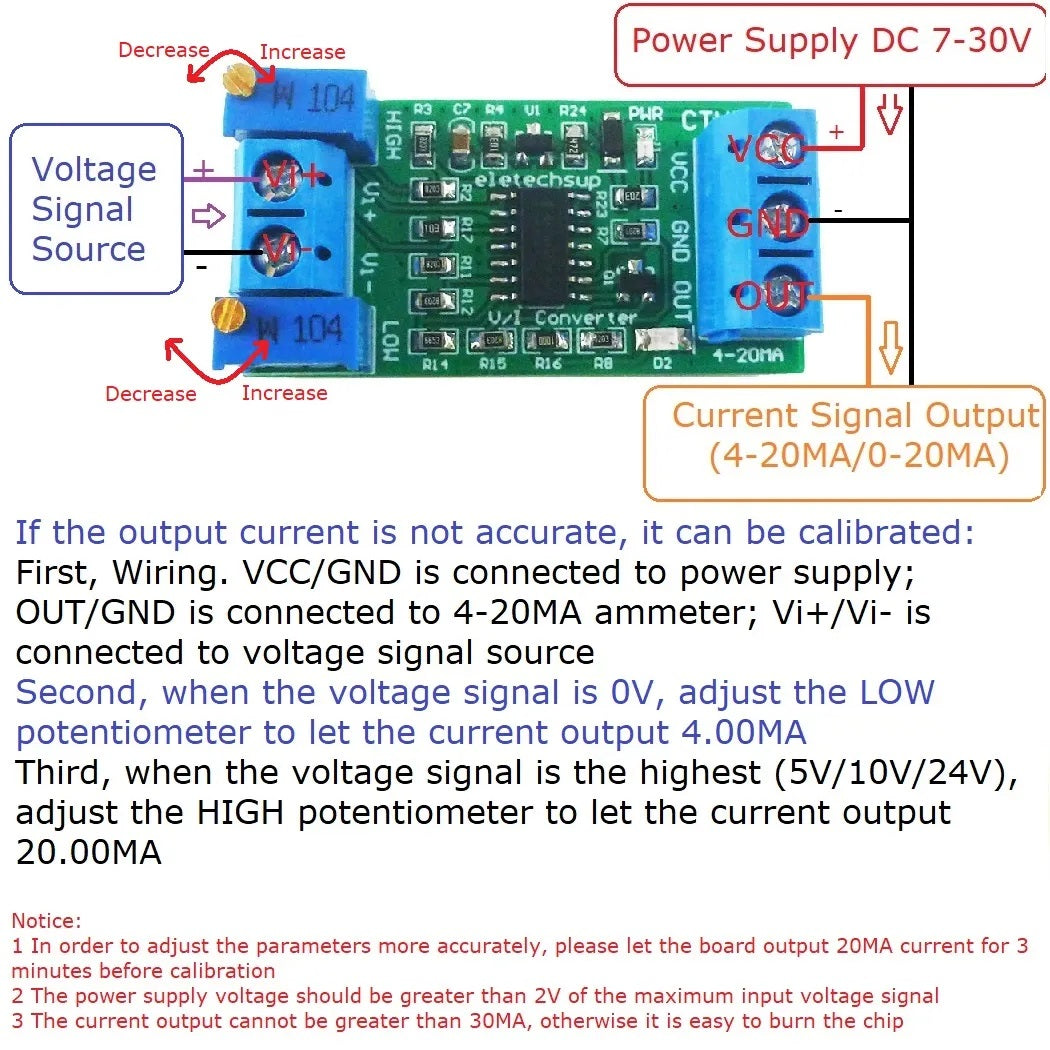

- Zero and span can be activated (potentiometer adjustment).
