600 RPM (6-12V) Micro Gearmotor - (AD38546)

Description:

These micro gearmotors are incredibly robust and feature all-metal gears. They have a high gear ratio (depending on the model) and operate up to 12 volts, offering high stall torque and a maximum speed of (see features). Each micro gearmotor has a 3mm D-shaft.

Features:

- Voltage: 6 - 12VDC

- Gear Ratio: 50:1

- Stall Torque: 7/20 oz-in. (6/12V)

- Speed: 300/600 RPM (6/12V)

- No-load Current: 40/100 mA (6/12V)

- Stall Current: 360/1600 mA (6/12V)

- Reversible DC

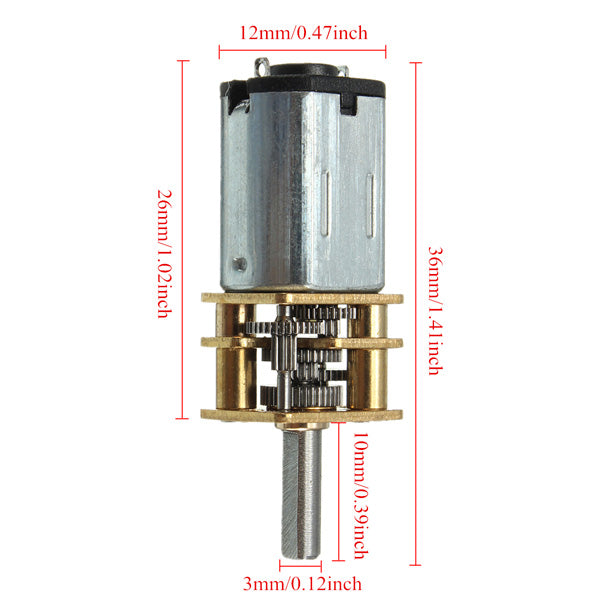

Dimensions:

- Motor Size: 26 x 12 x 10 mm

- Shaft Size: 3 mm diameter x 10 mm length

- Weight: 17 g

Datasheet
