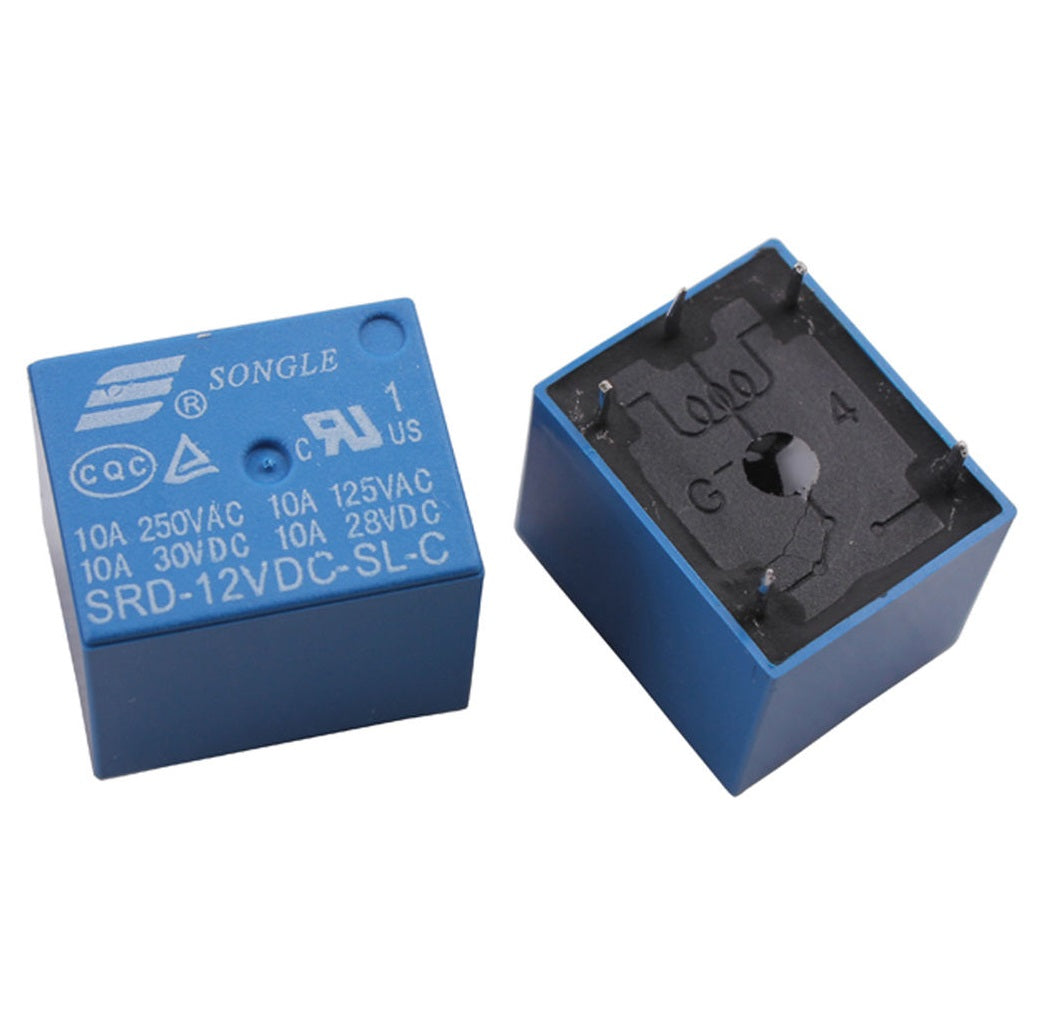

SRD-12VDC-SL-C Relay SPDT 12VDC - (AD3817)

SRD-12VDC-SL-C Relay SPDT 12VDC - (AD3817)

$1.95 USD
$1.95 USD
Sale Sold out

Description:

DC power relays interrupt high-capacity DC loads and high-voltage DC circuits in a compact and quiet design. The switching section and the driving section are gas-injected and hermetically sealed, allowing these compact relays to interrupt high-capacity loads. The sealed construction also requires no arc space, saves space, and helps ensure safe applications.

These are single-pole, double-throw (SPDT) protective relays. Use them to switch high-voltage and/or high-current devices. The coil of this relay is rated up to 12V, with a maximum switching voltage of 250VAC, 125VDC. The contacts are rated up to 10A (at 120VAC; 7A at 28VDC).

Features:

- 10A switching capacity in a small-sized design

- Selection of high-temperature resistant plastic material and better thermal performance

- Fully sealed

Coil specifications:

- Rated voltage: 12V

- Rated current: 37.5mA

- Resistance: 320 ohm

- Power: 0.45W

Contact specifications:

- Resistive load capacity: 28VDC@7A, 125VAC@10A, 250VAC@7A

- Inductive load capacity: 120VAC@5A, 28VDC@5A

- Maximum voltage: 250VAC
