SparkFun ProtoShield Kit [DEV-13820] - (AD3784)

Description:

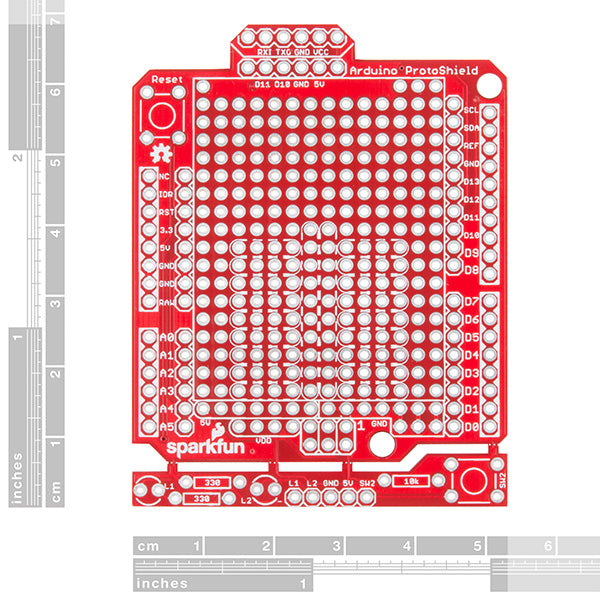

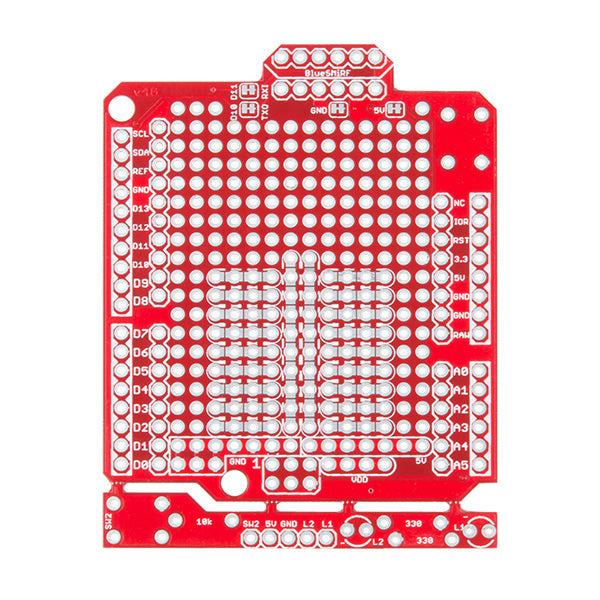

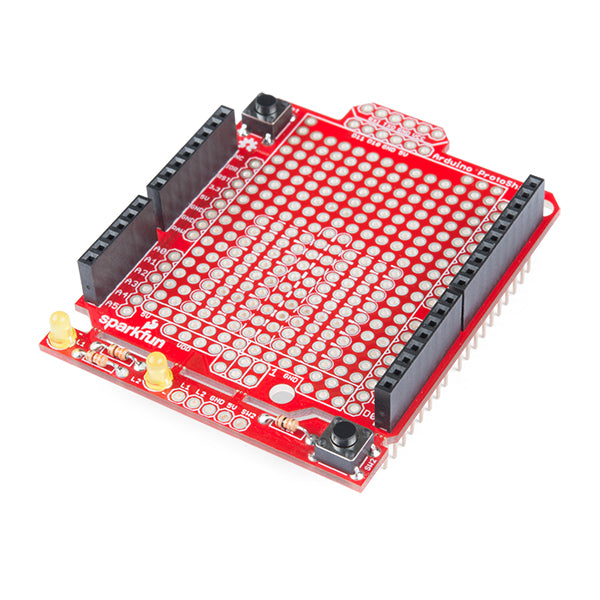

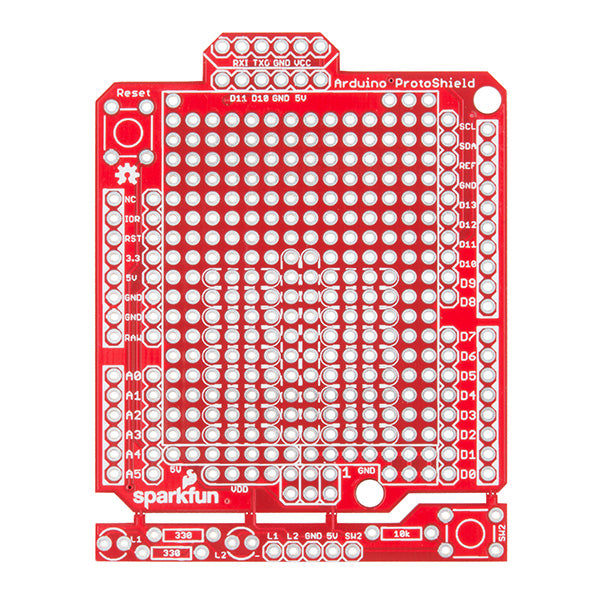

Riding the waves of the very popular Arduino USB board, we find this small prototype shield. Originally generated with the collaboration between the people at SFE and ITP @ NYU, the ProtoShield partners with the Arduino USB board, giving the user a small soldering area, two general LEDs, access to a BlueSMiRF socket, a push button, and most importantly - the Arduino reset switch is brought to the top level. A ProtoShield quickstart guide is available!

It comes as a kit and must ultimately be soldered by the user. Please note - we do not send assembly instructions, but a great photographed assembly guide can be found here! There are a few assembly tutorials listed below. All soldering is through-hole (relatively easy), but always check your component orientation before soldering!

The kit is pictured with the optional bread-board. We highly recommend this board! See related items below for all color options of the universal boards you have.

Note: The Sparkfun ProtoShield Kit does not include holes for the Uno R3 SDA and SCL.

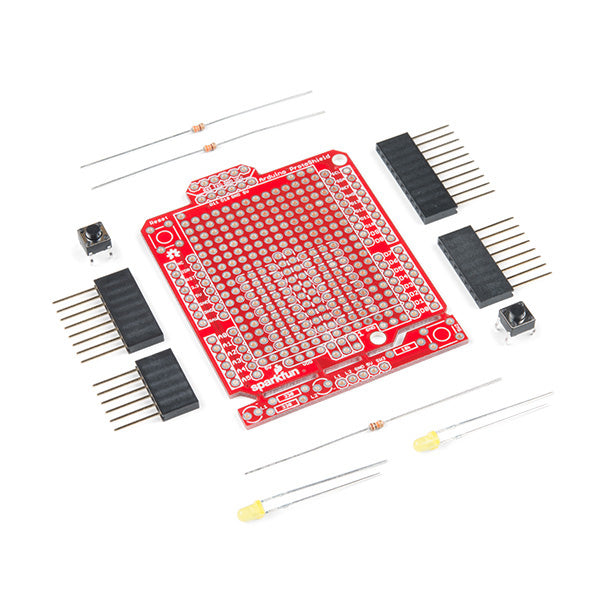

Kit Includes:

• 1x ProtoShield bare PCB
• 2x Stackable Headers 6-pin
• 2x Stackable Headers 8-pin
• 2x 5mm Basic Yellow LEDs
• 2x 330 Ohm resistors
• 1x 10k resistor
• 2x Momentary push buttons
• 2x 0.1uF Ceramic Capacitors

Features:

• All Arduino pins are brought to the top level.
• 5V, GND, and Vin pins are also exposed.
• BlueSMiRF connector for wireless communication between Arduinos.
• 2 general-purpose LEDs.
• 1 general-purpose button.
• Reset button on the top level.

Documents:

• Schematic
• Eagle Files
• ProtoShield Quickstart Guide
• Assembly Instructions
• Arduino Home Page
• Assembly Tutorial by Bob Gallup
• ProtoShield Wishlist
• GitHub (Design Files)
