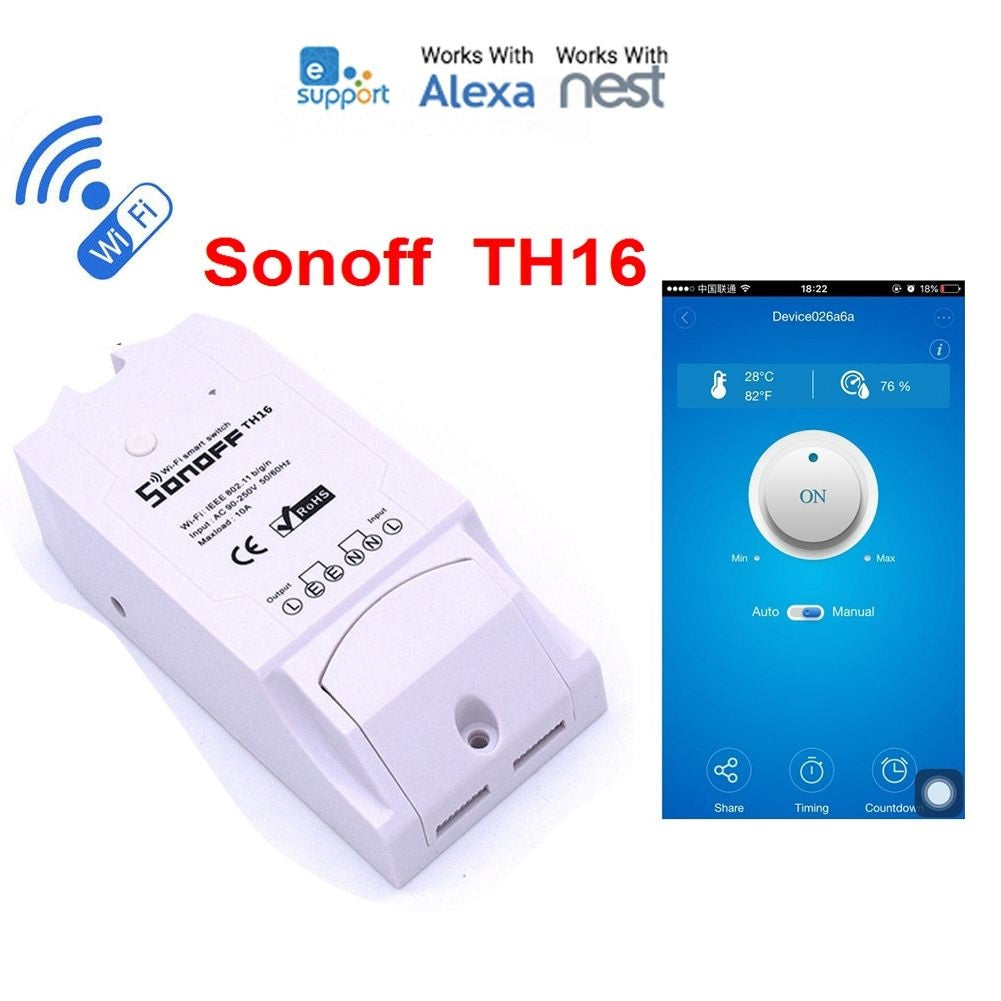

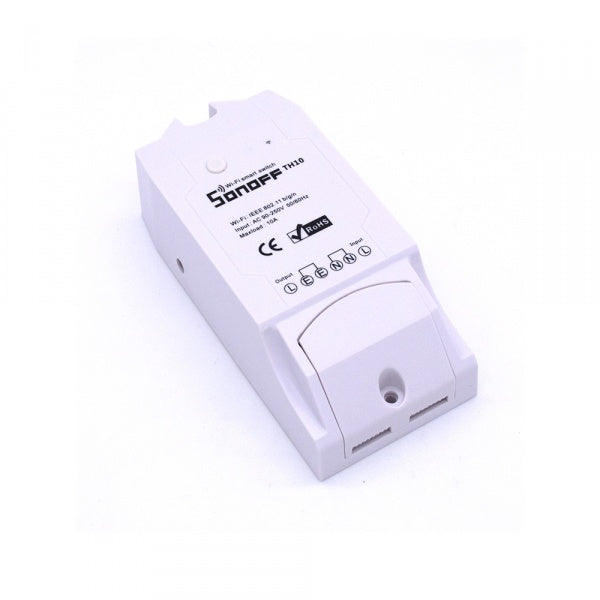

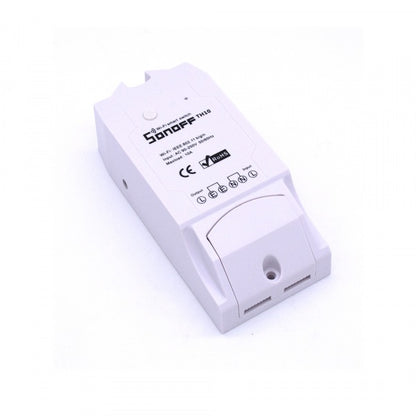

Sonoff TH16 Temperature And Humidity Monitoring WiFi Smart Switch - (AD37827)

Description:

Sonoff TH10/16 is a Sonoff version that can monitor and configure temperature and humidity via the eWeLink app. Just like the name suggests, the new version of the Sonoff TH device supports two power supply specifications: 10A or 16A. Sonoff TH10/16 supports preset temperature or humidity ranges; when the ambient temperature or humidity falls within the range, it will automatically turn connected devices on or off.

The device supports connecting to three types of temperature and humidity sensors (Si7021, AM2301, DS18B20, DHT11). Actually, Sonoff TH 10A/16A Sonoff TH 10A/16A can work as Sonoff when not connected to a sensor. But compared to Sonoff, Sonoff 10/16 is safer, less radiation, and in larger size, easy operation. Most importantly, with the support of the latest APP ewelink, you can create simple conditional statement chains (Smart Scene). This means you can use them with temperature and humidity sensors (Si7021, AM2301, DS18B20, DHT11) to collect temperature and humidity data, meanwhile, these data can be used to turn on/off other smart devices (Sonoff, Sonoff RF, Sonoff SV, Slampher, smart socket, etc.) under your account. This device is perfect for working with electric fans, air conditioners, and humidifiers. Please note that this version does not have 433MHz RF functionality.

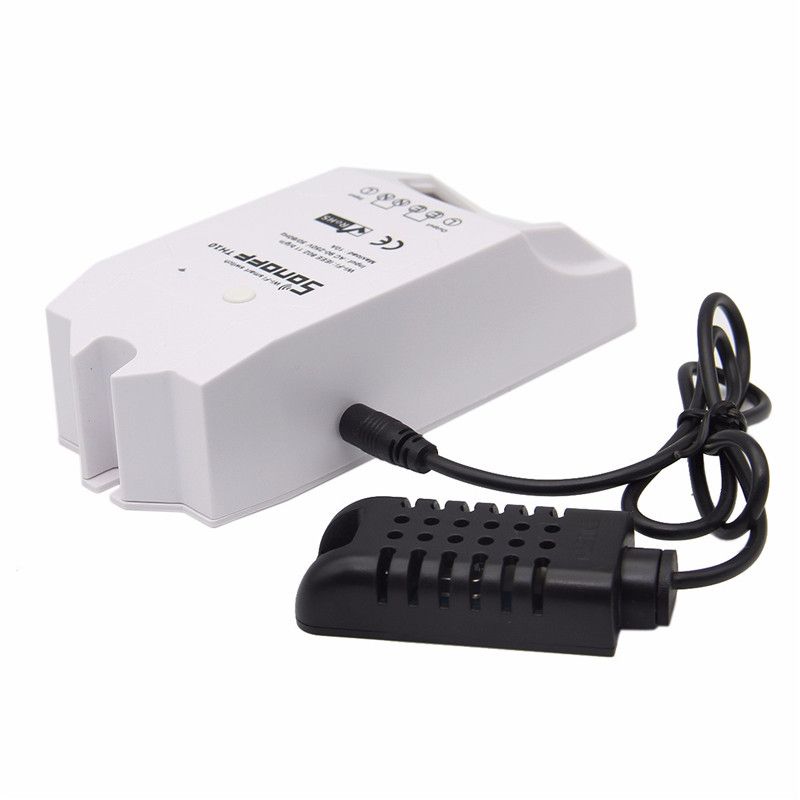

We are selling two types of sensors: AM2301 and DS18B20. We have customized an interface for Sonoff TH10/TH16 to easily connect with the sensor, just plug and play. Please note that the sensor must be plugged into Sonoff TH before powering on, do not plug or unplug the sensor in the power-on state. AM2301 is not waterproof, while DS18B20 can work in water.

Characteristics:

- Supports 90~250V AC input

- Supports a maximum input of 10A / 16A

- Quick support to set up SSID and password connection via APP

- Support for automatic server connection, registration, and status information update.

- Support device status tracking and timely remote control via APP

- Supports setting single/repeat/countdown timing tasks

- Supports real-time temperature and humidity display

- Supports 3 temperature and humidity sensors (Si7021, AM2301, DS18B20, DHT11)

- Supports preset temperature and humidity range to turn on/off
