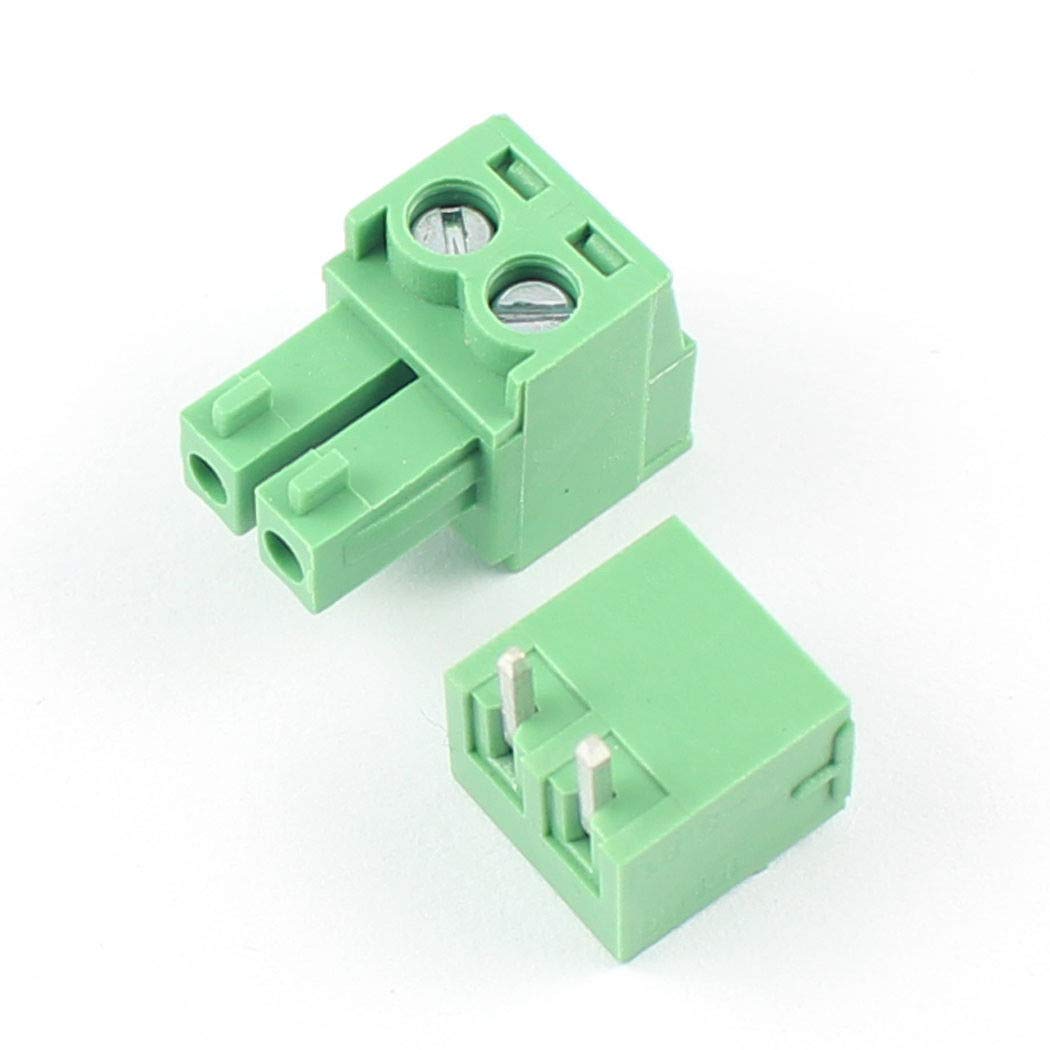

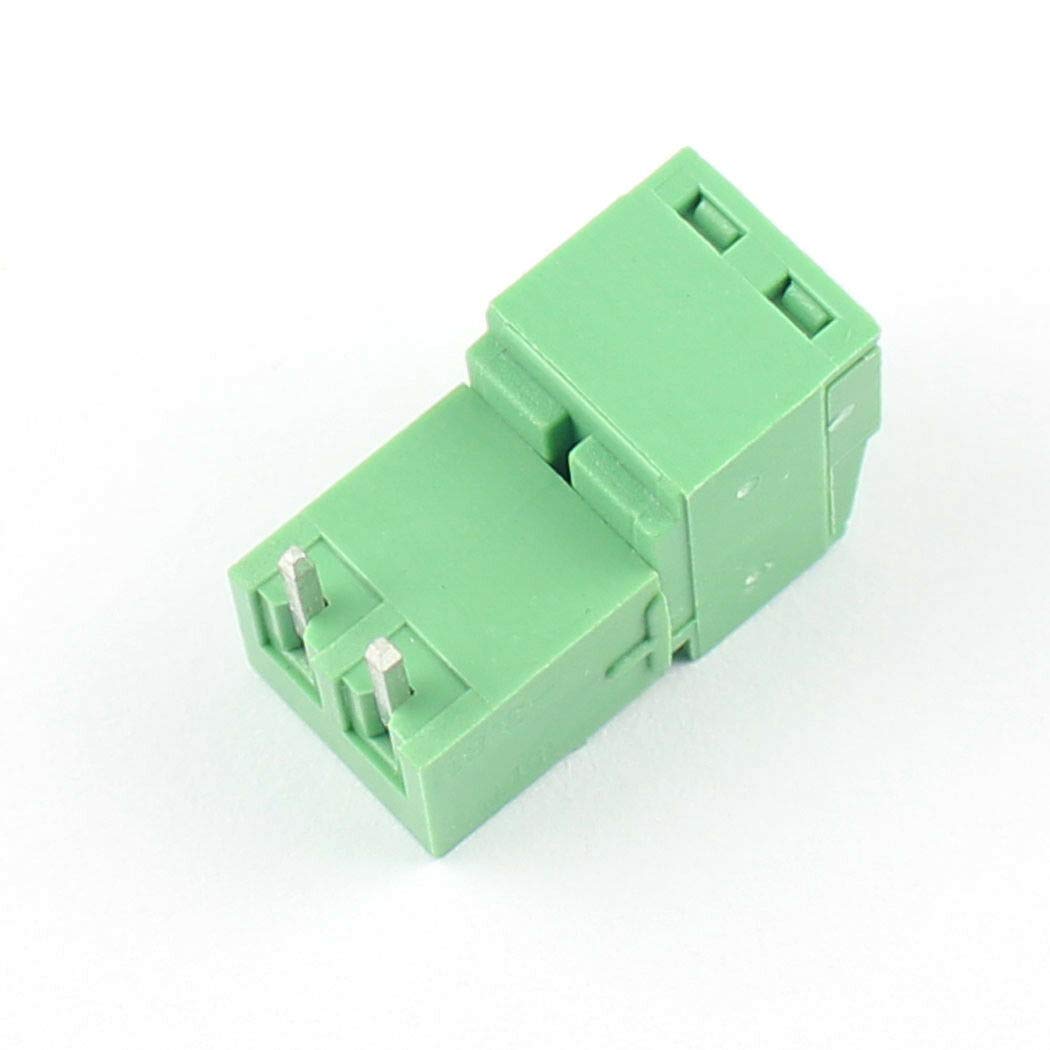

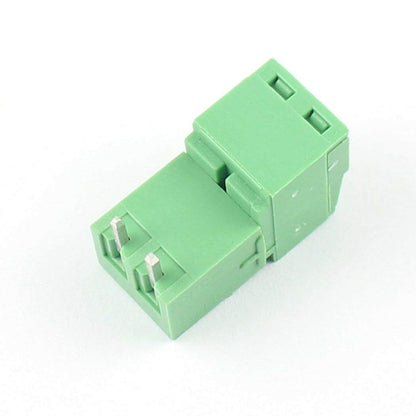

2 Pin Terminal Block Connector 3.5mm Pitch (Male & Female) - (AD37721)

Description:

3.5mm spaced screw terminals. They come in 2 or more positions. Rated up to 300V at 8A. The terminal can accept 26 to 12 AWG wires. The pin pitch is 3.5mm, but the pins are thick enough (1.0mm OD) that you may need to enlarge the hole diameter on some perfboards.

Specifications:

- Maximum Voltage: 300V

- Maximum Current: 8A

- Contact Resistance: 20mΩ

- Insulation Resistance: 5000MΩ/1000V

- Wire Gauge: 18AWG

- Working Temperature: -40°C~+105°C

- Pin Spacing: Approx.3.5mm

- Poles: 2P

- Material: Plastic
