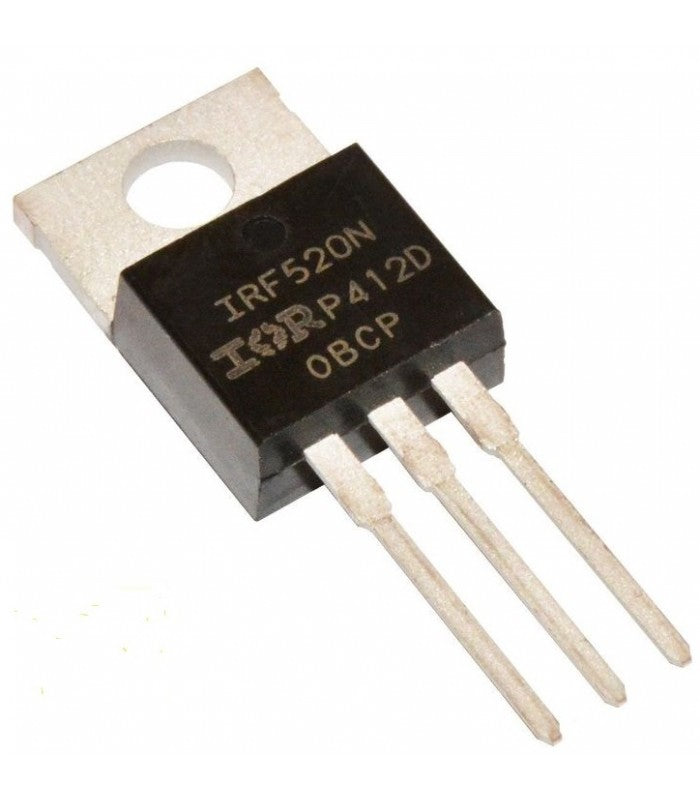

IRF520N N-Channel MOSFET Transistor 100V @ 9.7A - (AD3736)

Description:

Vishay's third-generation power MOSFETs provide designers with the best combination of fast switching, rugged device design, low on-resistance, and cost-effectiveness. The TO-220 package is universally preferred for all commercial and industrial applications at high power dissipation levels. The low thermal resistance and low cost of the TO-220 package contribute to its widespread acceptance in the industry.

Characteristics:

- Model: IRF520N

- Package/Cover: TO-220

- RoHS: Yes

- N-Channel transistor polarity

- Drain-source voltage : 100V

- Gate-source voltage: 20V

- Continuous drain current: 9.7A

- Mounting style: Through Hole

- Gate charge Qg: 16.7 nC

- Power dissipation: 48 W

Data sheet
