LilyPad Coin Cell Battery Holder - Switched - 20mm [DEV-13883] - (AD37087)

Description:

Sure, your light-up, chiptune shirt is great at the party... but there comes a time when you need to turn it off. And yeah, you could just pull the battery, or even have sewn an in-line LilyPad Slide Switch. Wouldn't it be cool if there was just a switch on the battery itself? Well look no further.

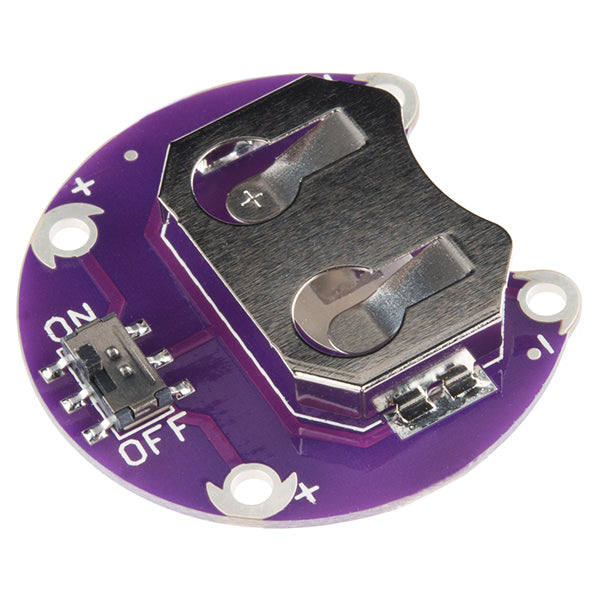

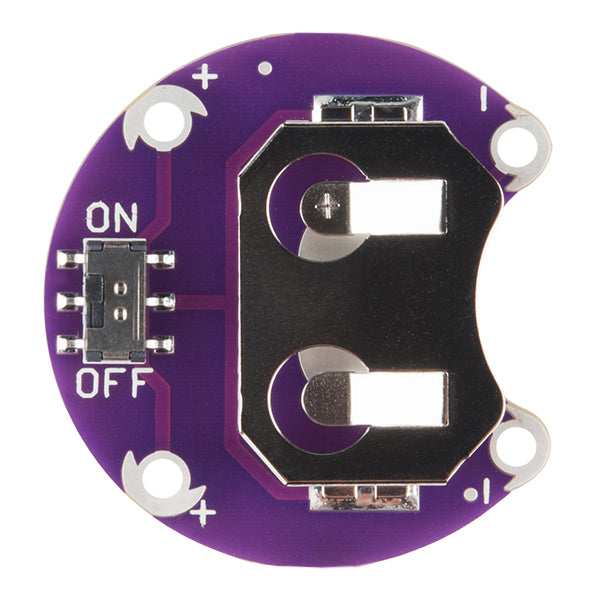

This LilyPad Coin Cell Battery Holder has a small slide switch installed on the board, in line with the power, so you can shut off your project and save battery life. This slide switch is the same as on the LilyPad slide switch board, so it's not easy to accidentally turn on or off.

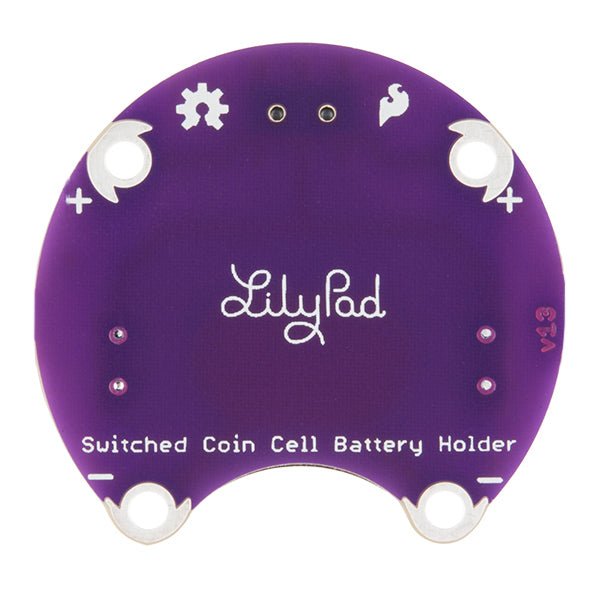

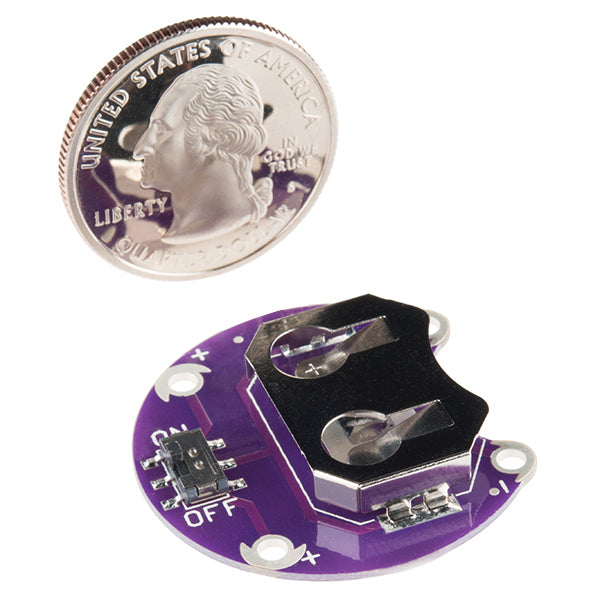

Just like the original coin cell battery holder, this simple board holds a 20mm coin cell battery (such as a CR2032) and gives you four connection points (two positive and two negative) for sewing into your project. Also, we've beefed up the battery connector on this board to prevent it from detaching accidentally.

Documents:

• Schematic
• Eagle Files
• GitHub
