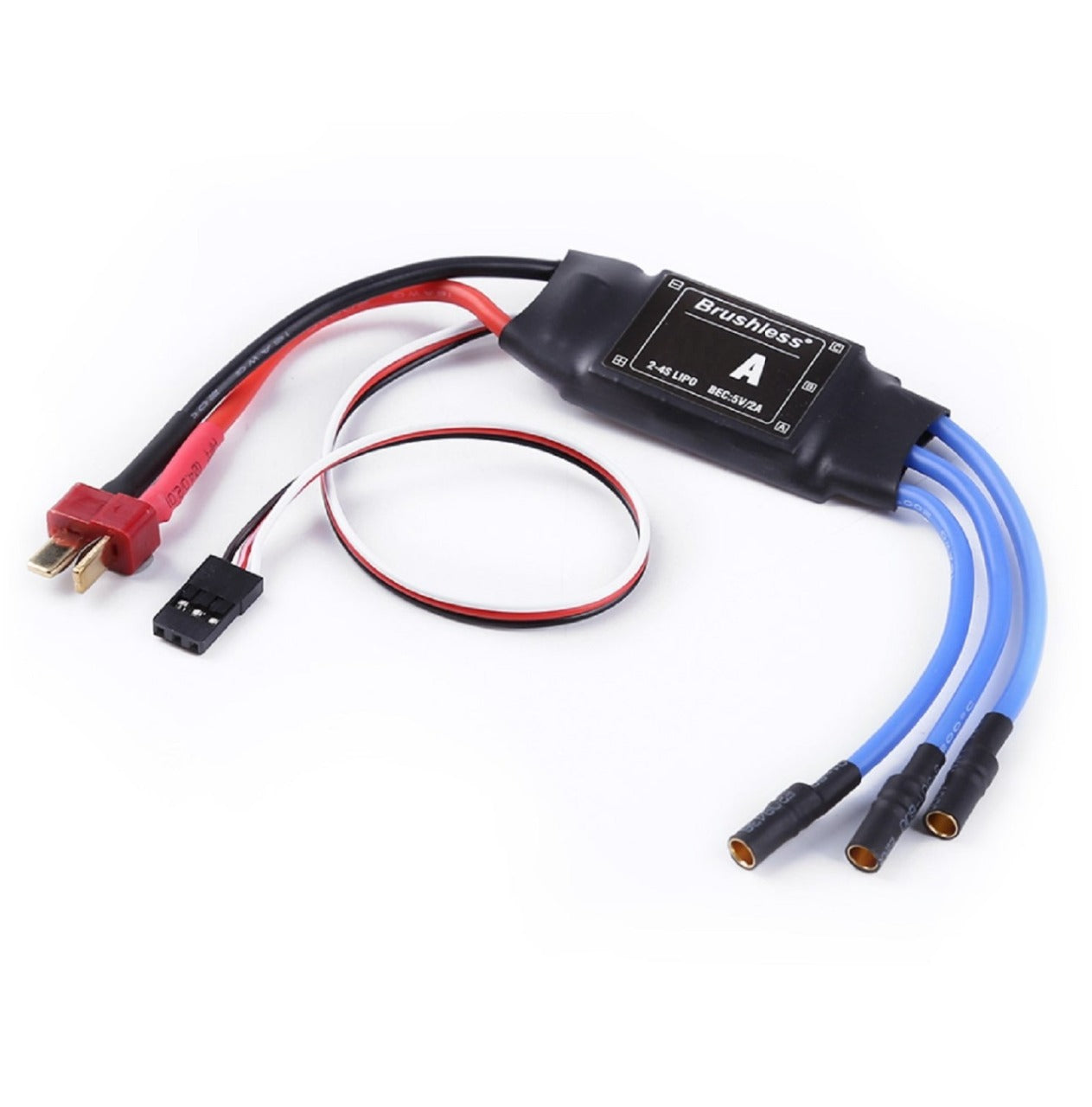

40A Brushless Speed Controller - (AD36819)

Description:

This is a 40A Electronic Speed Control (ESC) for a 1000KV A2212 motor or similar; it comes ready to connect.

40A Brushless ESC Specifications:

- BEC: 2A / 5V (linear mode)

- Output: continuous 40A, burst 50A up to 10 seconds.

- Input voltage: 2-4 cell lithium battery or 5-12 cell NiCd / NIMh battery.

- Max speed: 210000rpm for 2-pole BLM, 70000rpm for 6-pole BLM, 35000rpm for 12-pole BLM. (BLM: Brushless Motor)
