Arduino Pro Micro 5V 16MHz Type-C (Generic) - (AD36475)

Arduino Pro Micro 5V 16MHz Type-C (Generic) - (AD36475)

$15.95 USD
$15.95 USD
Sale Sold out

Description:

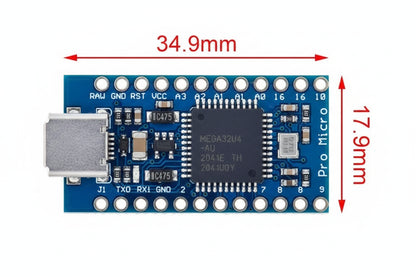

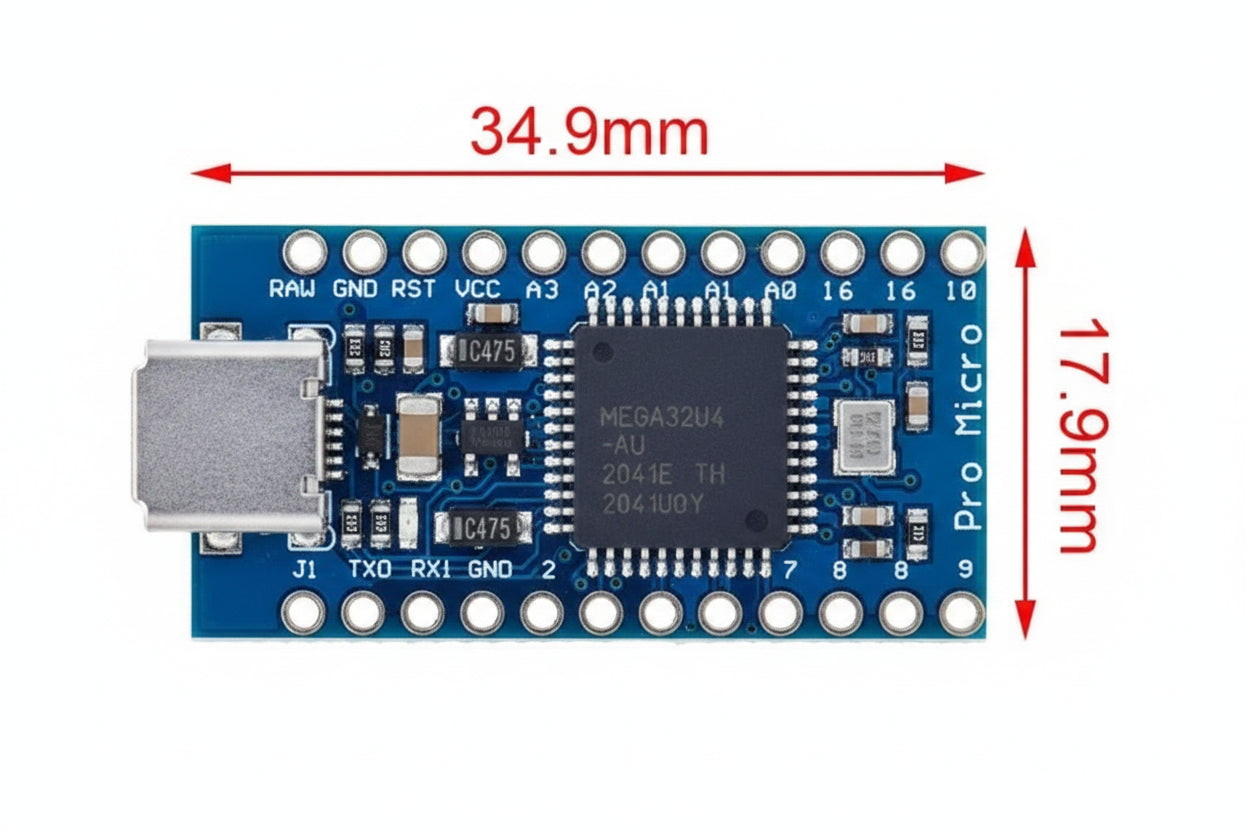

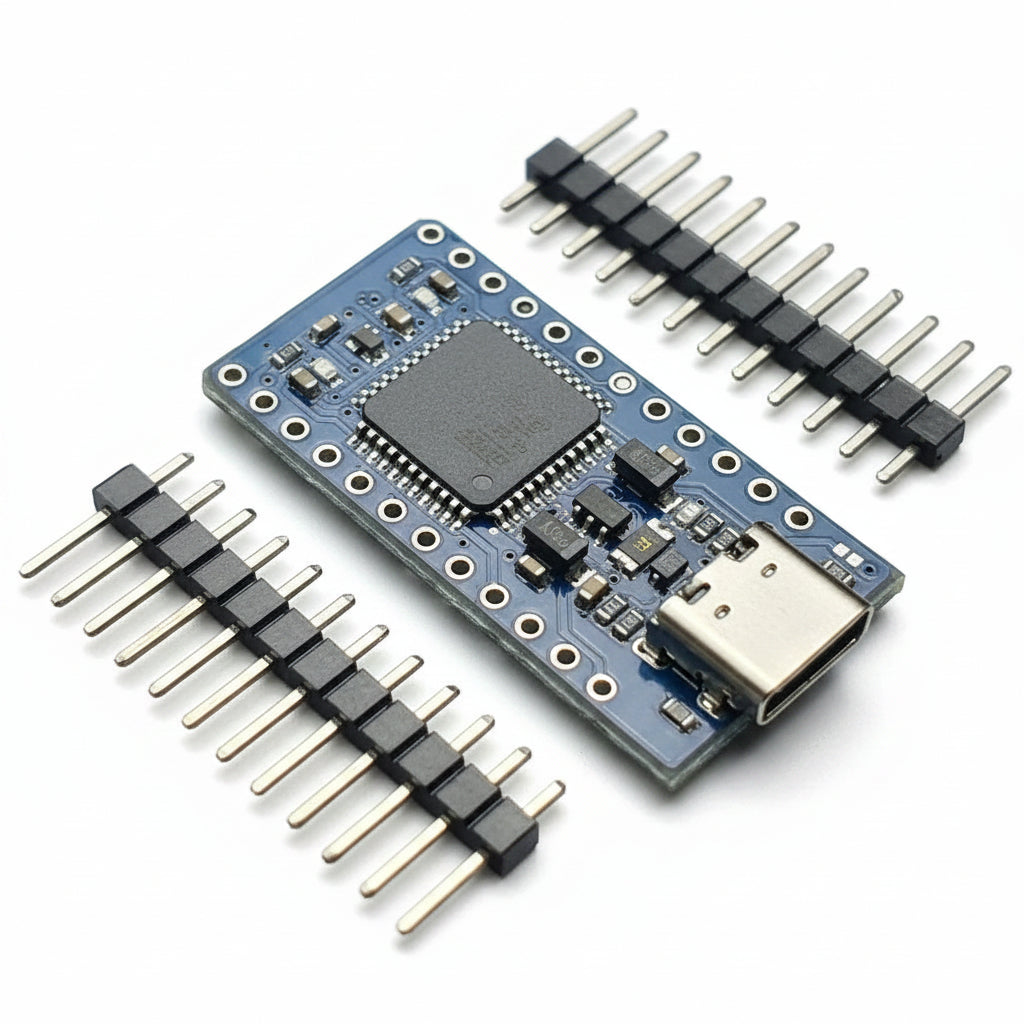

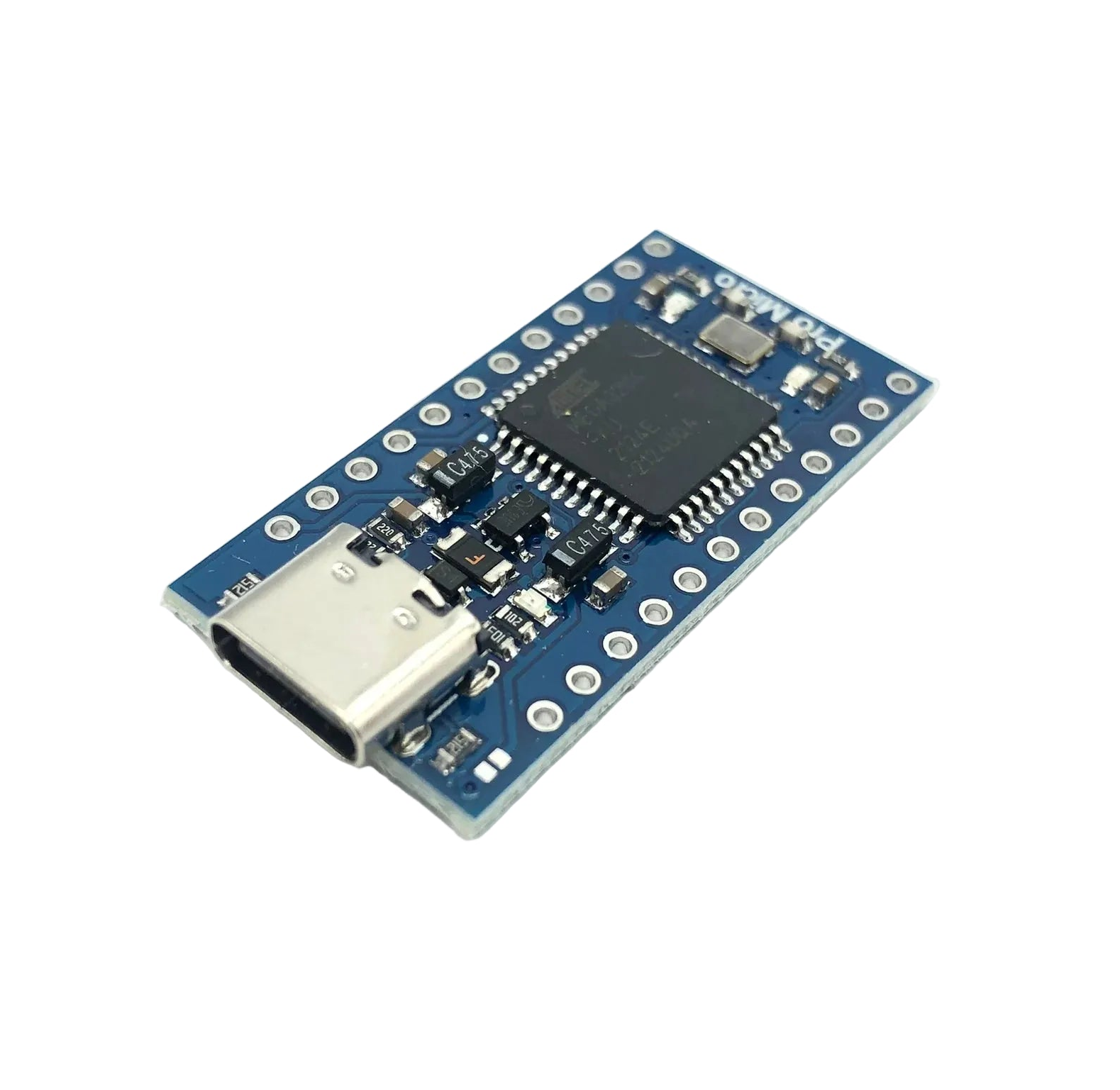

Here at MicroJPM, we refuse to quit at "good enough." That's why we're expanding our line of Arduino-compatible microcontrollers once again! The Pro Micro is similar to the Pro Mini except that it has an ATmega32U4 on board. The USB transceiver inside the 32U4 allows us to add onboard USB connectivity and do away with the bulky external USB interface.

This tiny board does all of the nifty Arduino tricks that you're familiar with: 9 channels of 10-bit ADC, 5 PWM pins, 12 DIOs, as well as hardware serial connections Rx and Tx. Running at 16MHz and 5V, this board will remind you a lot of your other favorite Arduino-compatible boards, but this little guy can go pretty much anywhere. There is a voltage regulator on board, so it can accept voltage up to 12V DC. If you're supplying unregulated power to the board, be sure to connect to the "RAW" pin on not VCC.

Features:

- ATmega32U4 running at 5V/16MHz

- Supported under Arduino IDE

- On-Board micro-USB connector for programming

- 9 10-bit ADC pins

- 12 Digital I/Os (5 are PWM capable)

- Hardware Serial Connections Rx and Tx

- 1.3 x 0.7"

Documents:

Reference link
