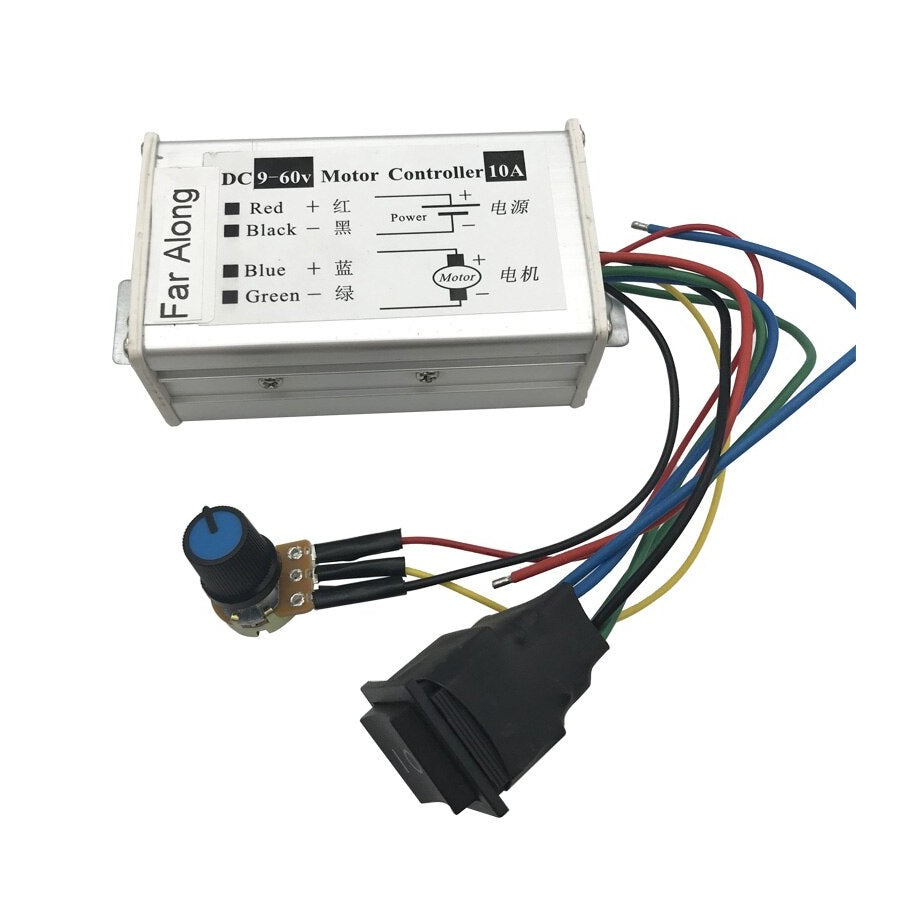

10A DC Motor Adjuster Speed Control PWM 9V-60V With Forward & Reverse - (AD36280)

Description:

The DC motor speed controller allows controlling the direction of a DC motor using a pulse-width modulated (PWM) DC voltage with a fully adjustable duty cycle from 0% to 100%. The motor speed controller can provide a continuous current of 10A to your DC motor or other DC load. The circuit also includes power supply reverse connection protection and control voltage overvoltage protection function.

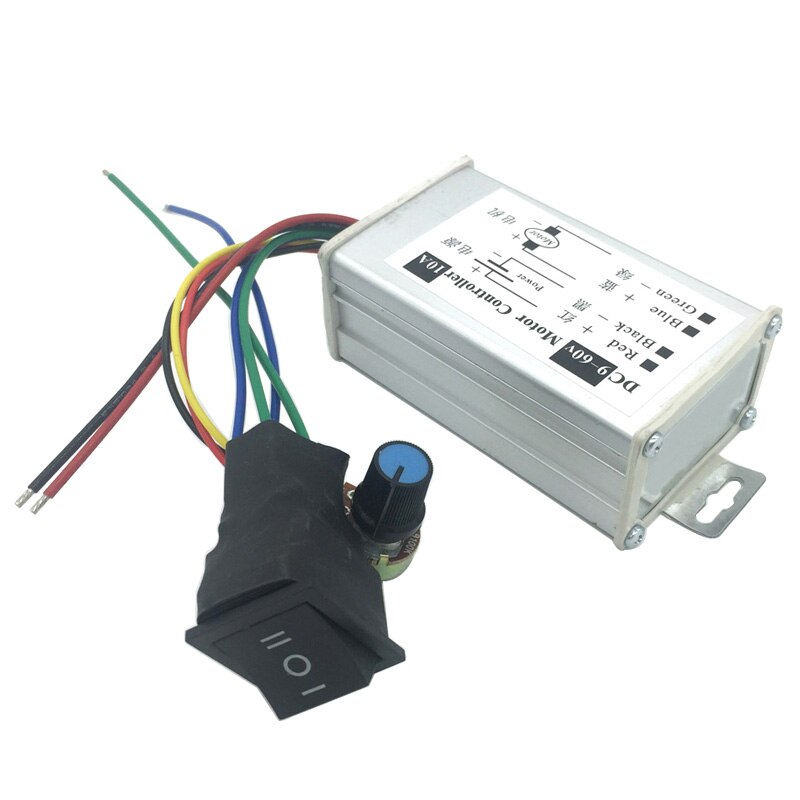

This controller comes with a 3-position switch and is capable of rotating the motor in forward and reverse directions.

Note: This cannot be used with BRUSHLESS motors. Check all connections before connecting power and always turn off the power supply before making any wiring changes.

Features:

• Input voltage: DC 9 V ~ 60 V
• Maximum output power: 500 W
• Maximum continuous output current: 8 A
• Overload and short-circuit protection current: 10 A
• PWM frequency: 25 KHz
• Adjustable duty cycle: 0% ~ 100%
• Operating ambient temperature: -20 °C ~ 40 °C
• Dimensions: 92 x 52 x 36 mm (length x width x height)
