Servo Hub - Standard (Hitec Standard) [ROB-12443] - (AD35981)

Description:

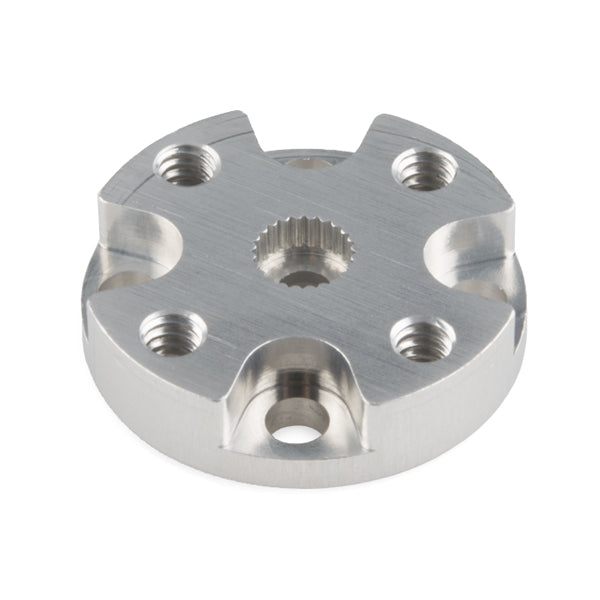

These hubs are ideal for attaching wheels, gears, or any heavy-duty servo directly to the C1 Hitec servo spline. These aluminum servo hubs are 1" in diameter and 1/4" wide, and use a 0.77" hub pattern.

Actobotics is a robotics building system based on extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, almost all Actobotics components can be intuitively connected. The wide range of components allows for building complex electromechanical prototypes or finished projects.

Features:

• Diameter: 1"
• Width: 0.25"
• Hitec C1 Spline
• 4x 6-32 Screw Holes
• 4x 0.14" Thru-Holes
• Hub Pattern: 0.77"

Documents:

• SketchUp Part
• Product Page (525130)
